Char FCM 2C bis - Super-heavy French tank prototype - case report

          Mes amis...
      While the oil paint in the weathering of quartet of Char B1s dry, I'll start to build a project of a very rare version: the Char FCM 2C ​​Bis!!!

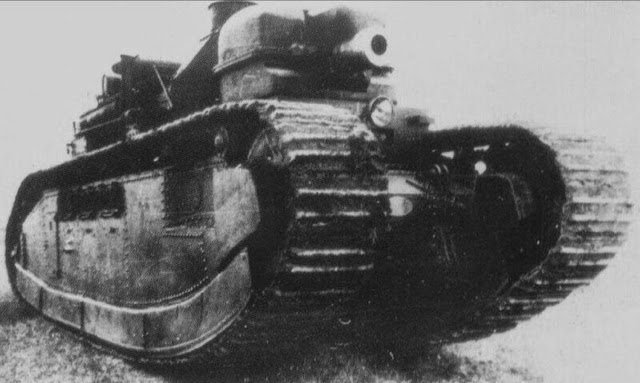

Char FCM 2C bis - notice the casted turret and the 155mm howitzer
      When I was building the super-heavy tank FCM 2C ​​(standard), I discovered that existed only one vehicle on this configuration , characterized by a 155mm howitzer in a front casted turret. We only know the photo you posted above and the greatest difficulty is the misinformation about this beast.

History:
      The origins of FCM Char 2C bis is the same of their nine other "common" brothers, as we've seen in the previous article: The tanks were baptized with the names of ancient provinicas of France. The number 9 was the Champagne.
France - ancient provinces
Champagne Brason
     In 1926 (some sources cite 1923), the Champagne n° 9 (late, 99)  was modified to Char 2C bis (some fonts cite the Char n°10 (90) Poitou, too), an experimental version armed with a 155 mm howitzer (possibly a variant of the 155 C Mle1917 Schneider) in a casted turret. New engines (two Sautter-Harlé engines 6-cyl 250hp/each) were fitted and the machine guns in the side positions were deleted. In this configuration the tank weighed perhaps 74 tons. Though, the changes were only temporary: the vehicle was brought back into its previous condition in 1934 (some fonts cite that the "Champagne" returned back to its original state in the very same year). The new casted turret was used in the Tunisian Mareth Line.
      My opinion is that the industrial effort required for this modification would be wasted by its use for less than a year. I counter-intuitive that such expenditure should be used for so short period, even more in a vehicle that has been modified in the interwar era. IMHO, I agree that the Champagne 2C bis returned to its standard condition in 1934, because a question of logistic and maintenance standardization. Based on this premise, I modified the blueprint in 3 views of FCM 2C that ​​I found on the internet to the 2C bis version.

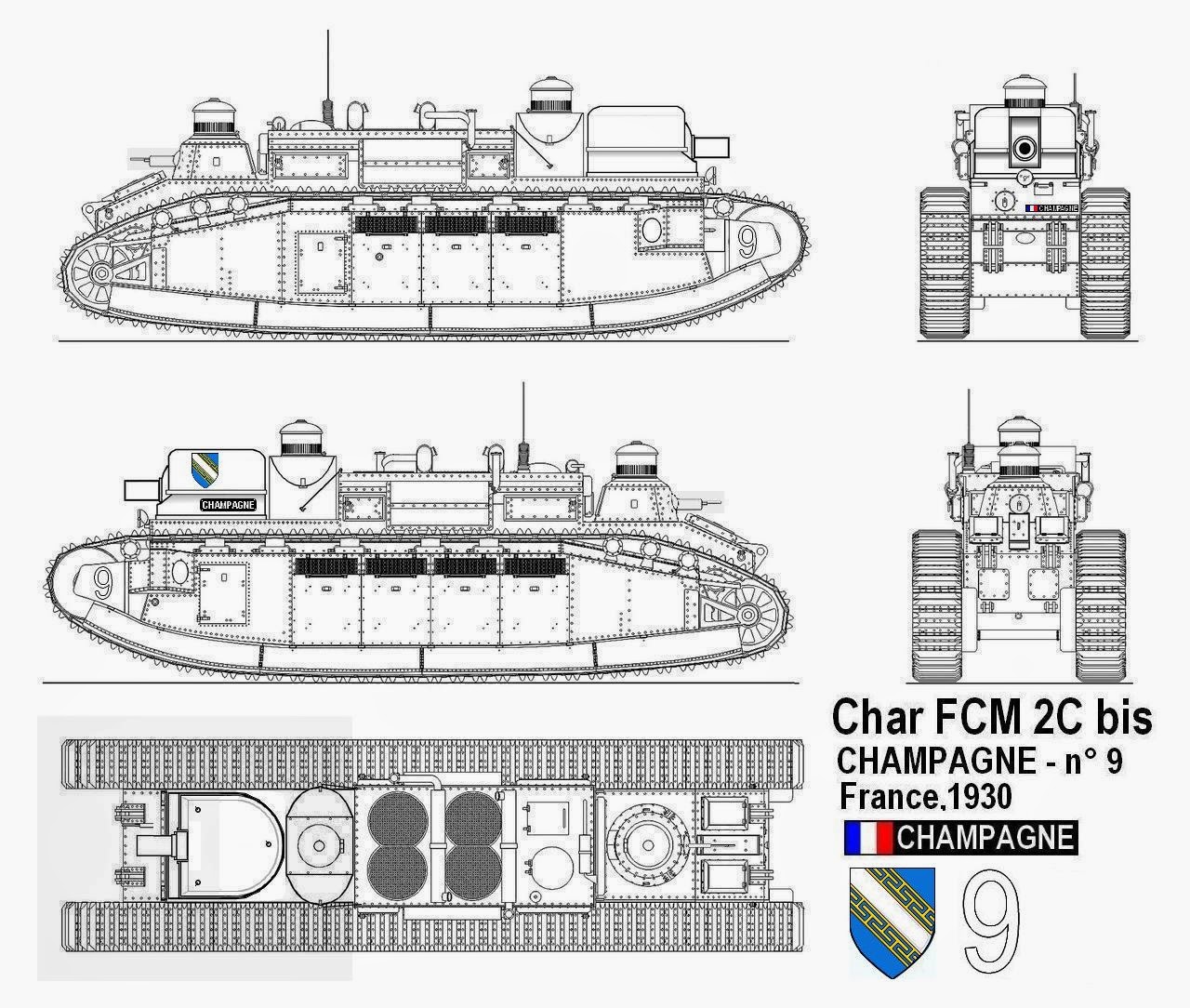

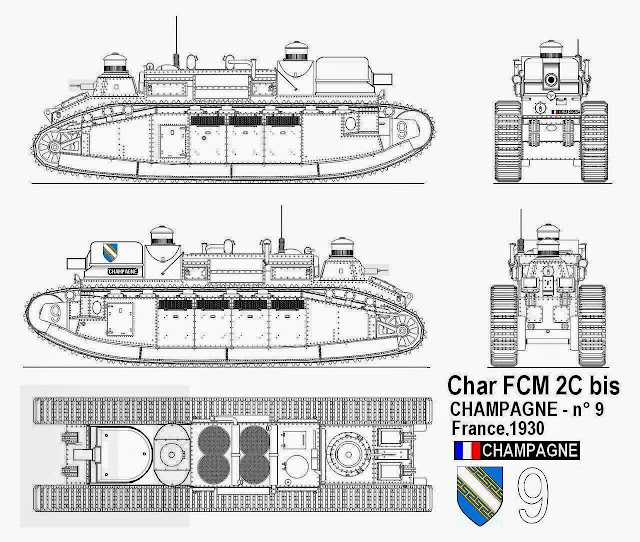

Super-heavy tank Char FCM 2C bis - blueprint
      I found in the web (I love the internet) some artistic drawings on this version on an online tank game site (World of Tanks). This version of Char 2C bis was idealized and renderized, but never was used in this game. In this artistic version, the rear turret shows a 25 mm Hotchkiss anti-tank gun, but whether this evolution has happened, I think that it would be extended to all tanks of the lineage and never be "retrofitted" to the inferior pattern with a machine gun, later ...Again, IMHO !!!
Char FCM  2C bis - W.o.T.  art -  top front view
Char FCM  2C bis - W.o.T.  art -  top rear view
Char FCM  2C bis - W.o.T.  art
Char FCM  2C bis - W.o.T.  art
Char FCM  2C bis - W.o.T.  art -  notice the 25mmAT in the rear turret
Char FCM  2C bis - W.o.T.  art -  in the Bunker...
Specs:
Char FCM 2C bis

TypeSuper-heavy tank
Place of origin France
Service history
In service1923–1934 (?)
Used by France

Production history
Designed1923
Produced1923
Number built1 -(2 ?)


Specifications
Weight74 tonnes
Length10.27 m
Width3 m
Height4.09 m
Crew12

Armour45 mm  max.
Main
armament
155mm howitzer- variant of the 155 C Mle1917 Schneider
Secondary
armament
two 8 mm machine guns (ball mount at front and one mounted in a rear turret)
Enginetwo Sautter-Harlé engines 6-cyl
2 x 250 hp
Operational
range
140 km
Speed15 km/h



















The kit:
      To do this beauty, I'll use the awesome Char FCM 2C Meng kit.

      I'll start the building modifying the front upper hull.
The parts that will be removed (in red)

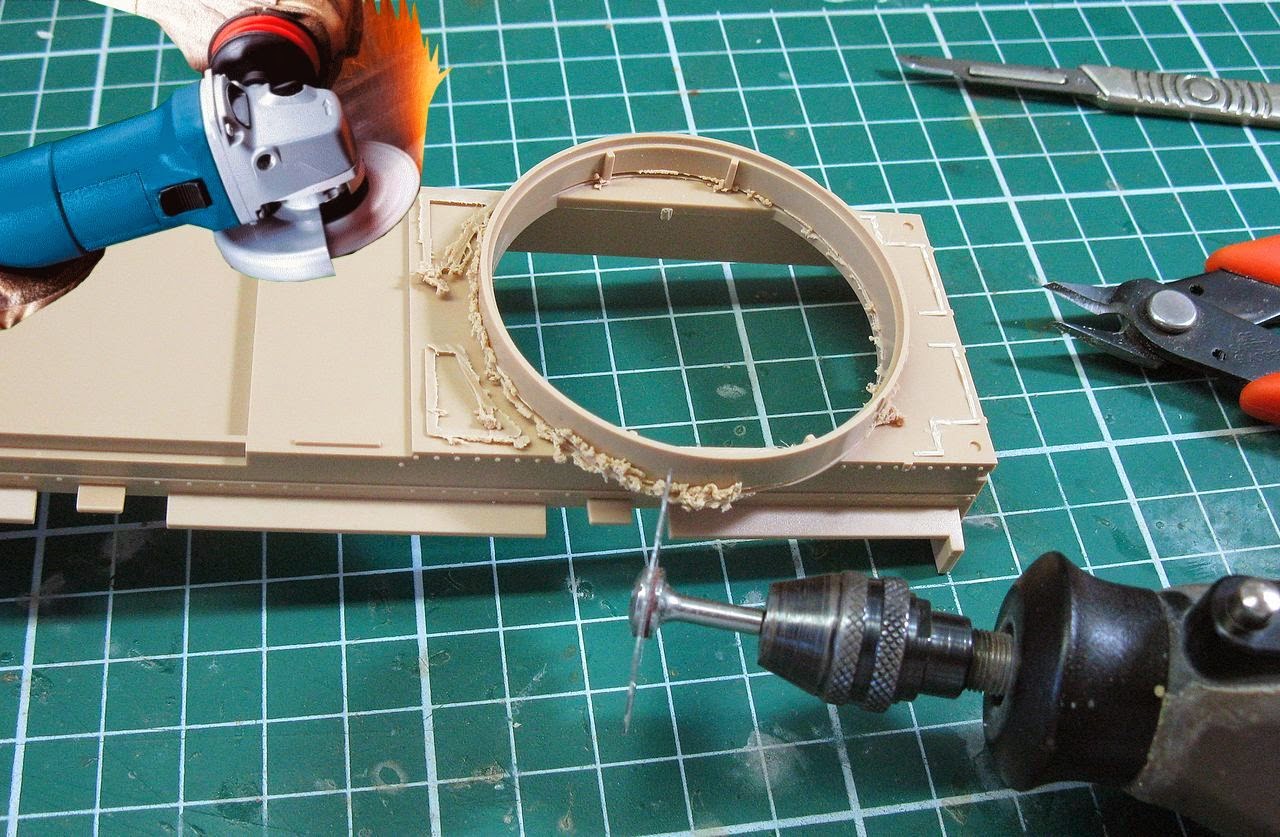

Using the Dremel and saw tool. Beware with your fingers !!!
Surgery done. Starting the cleaning job...
Almost there...
The front hull without little details....
Plasticard cut to the closing of the upper hull
Like a glove !!!

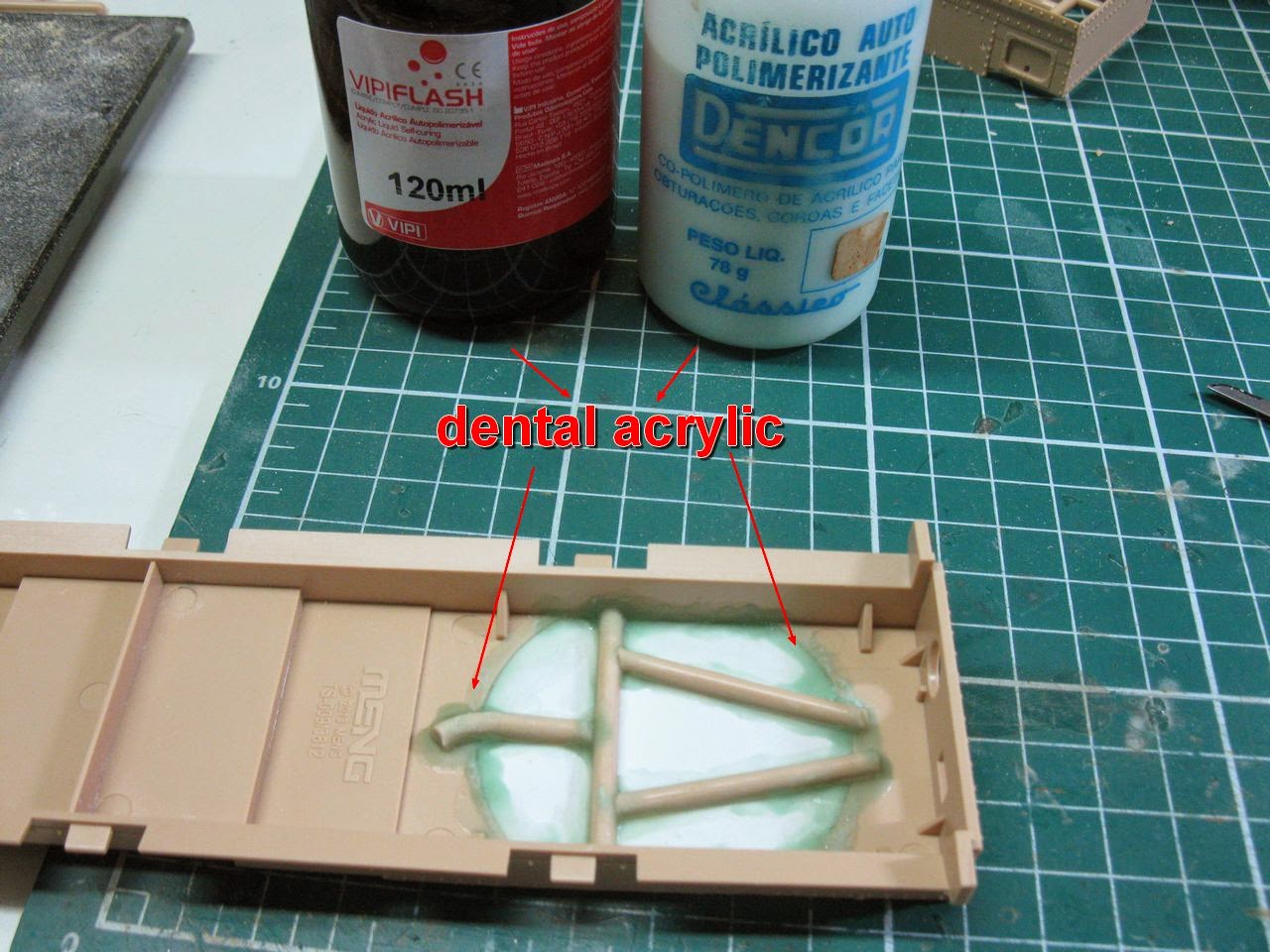

Internal reinforcing with dental acrylic and sprues (very good, indeed...)

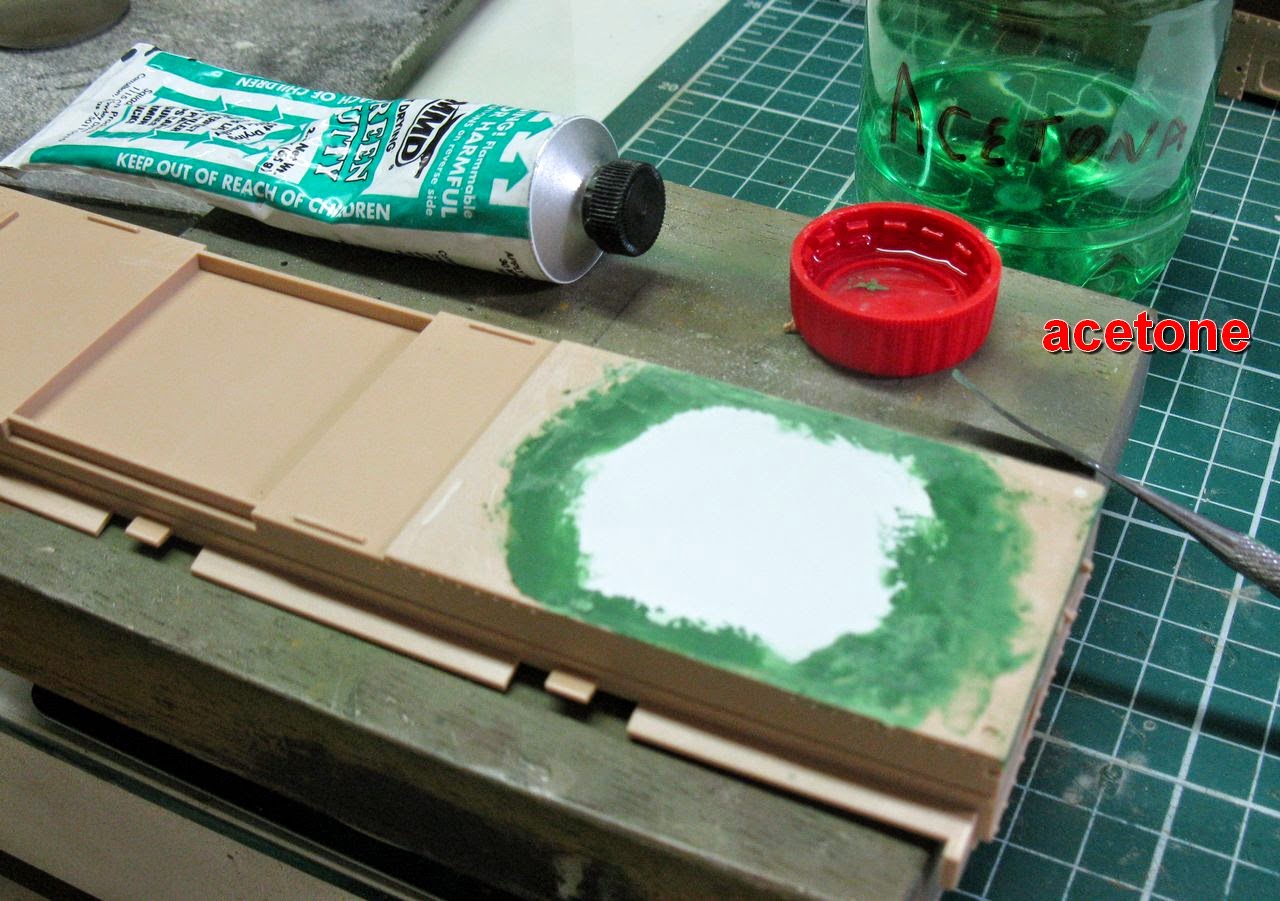

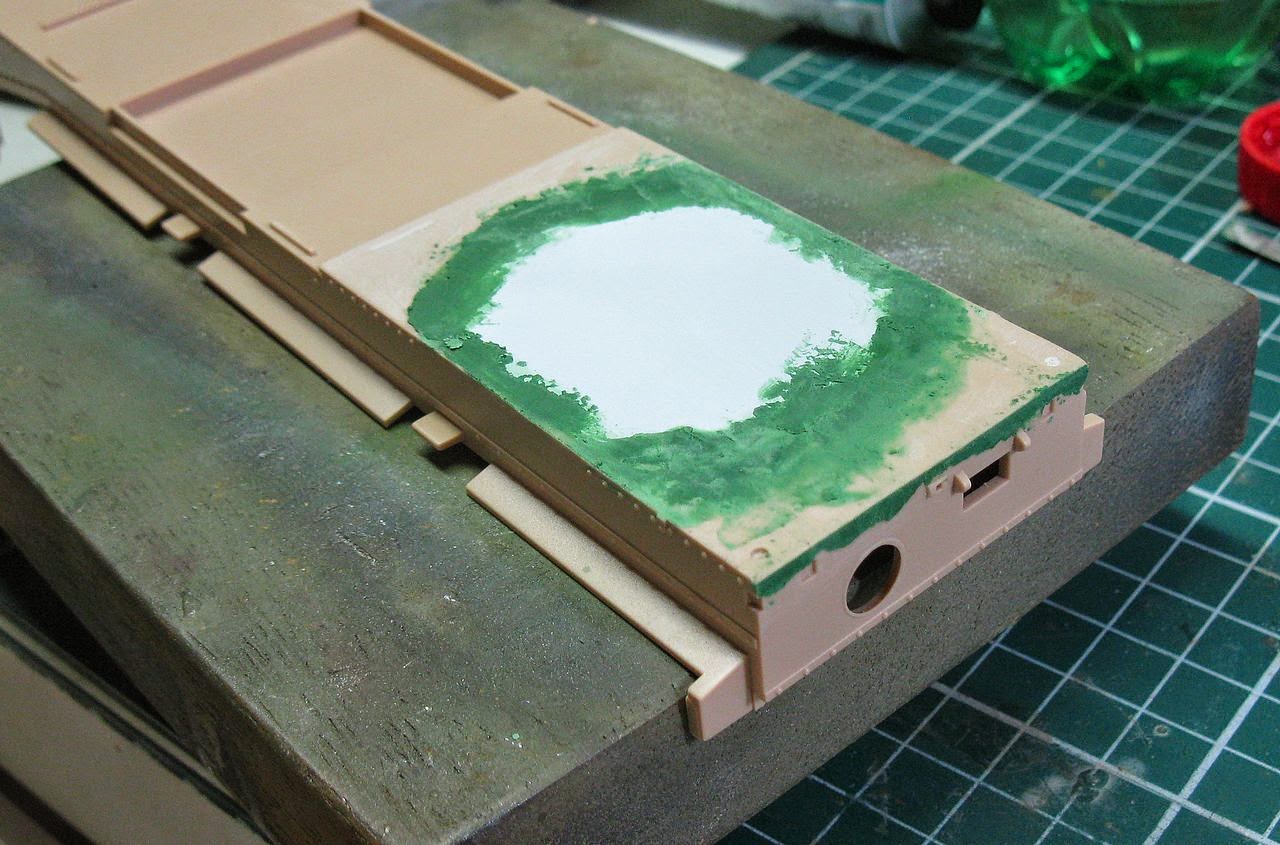

Putty diluted with acetone to close the narrow gaps...
Done ...What a mess !!!

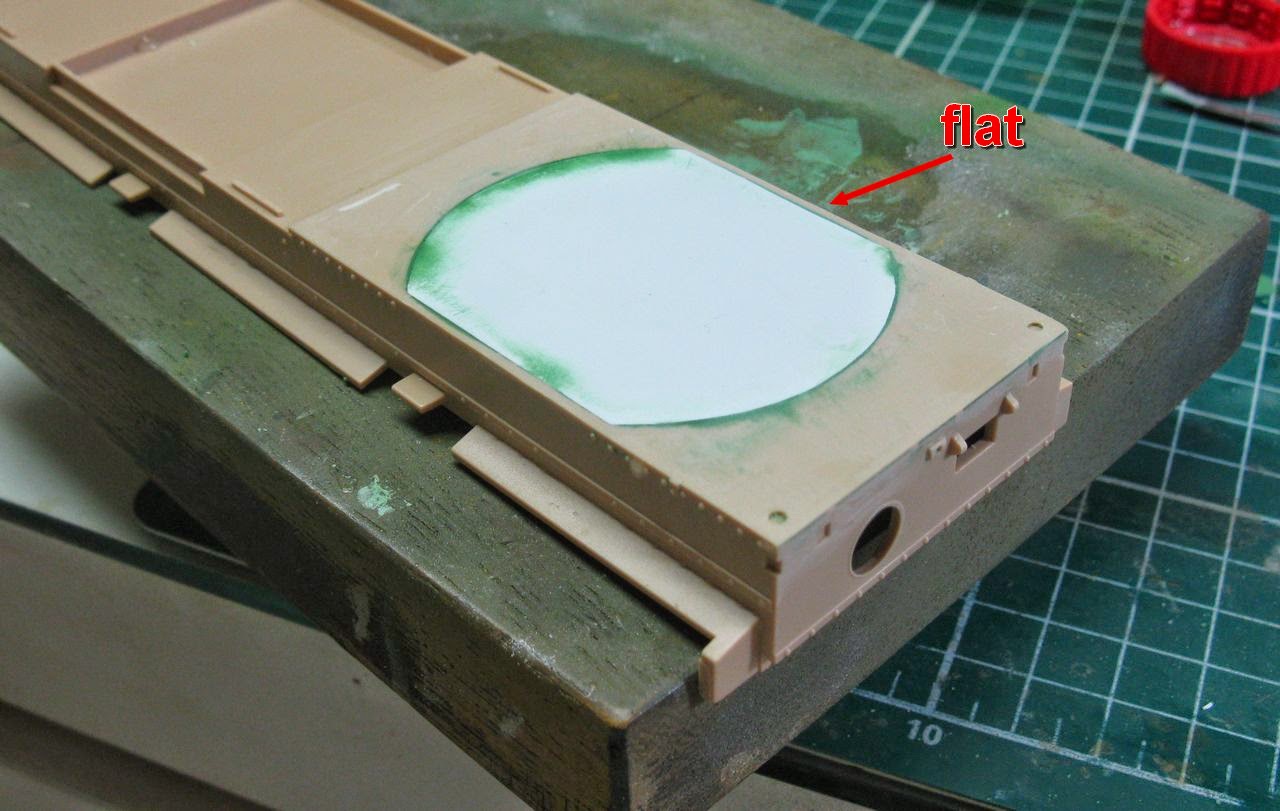

Flat and smooth...
      Starting the "auxiliary turret"
Three layers of plasticard (1mm) glued in the corners...
After the dremel's cut. The "cake recipe ...

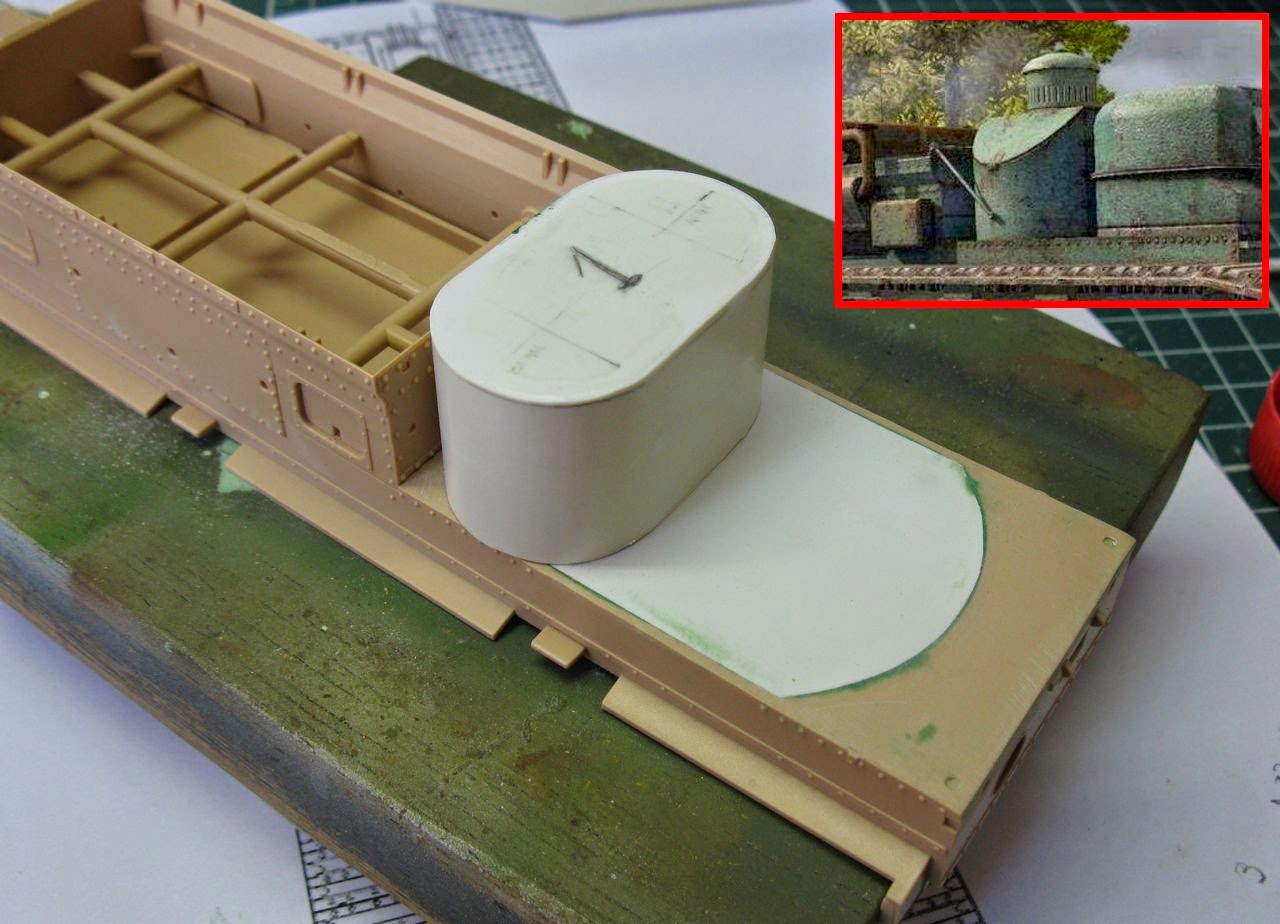

Testing in place...
Plasticard plates after separation.
How were cut together, are identical with each other ...
The "auxiliary turret" after lamination with thin plasticard (0,2mm)

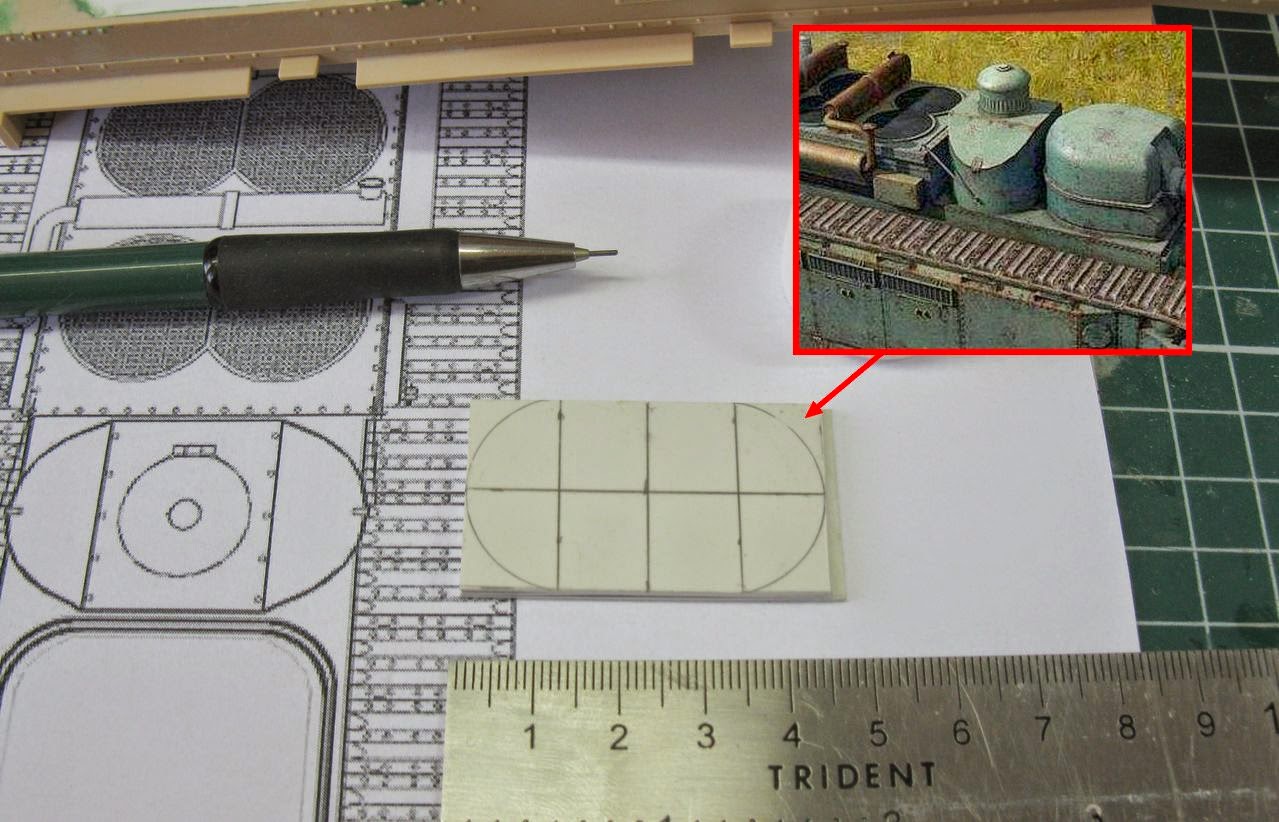

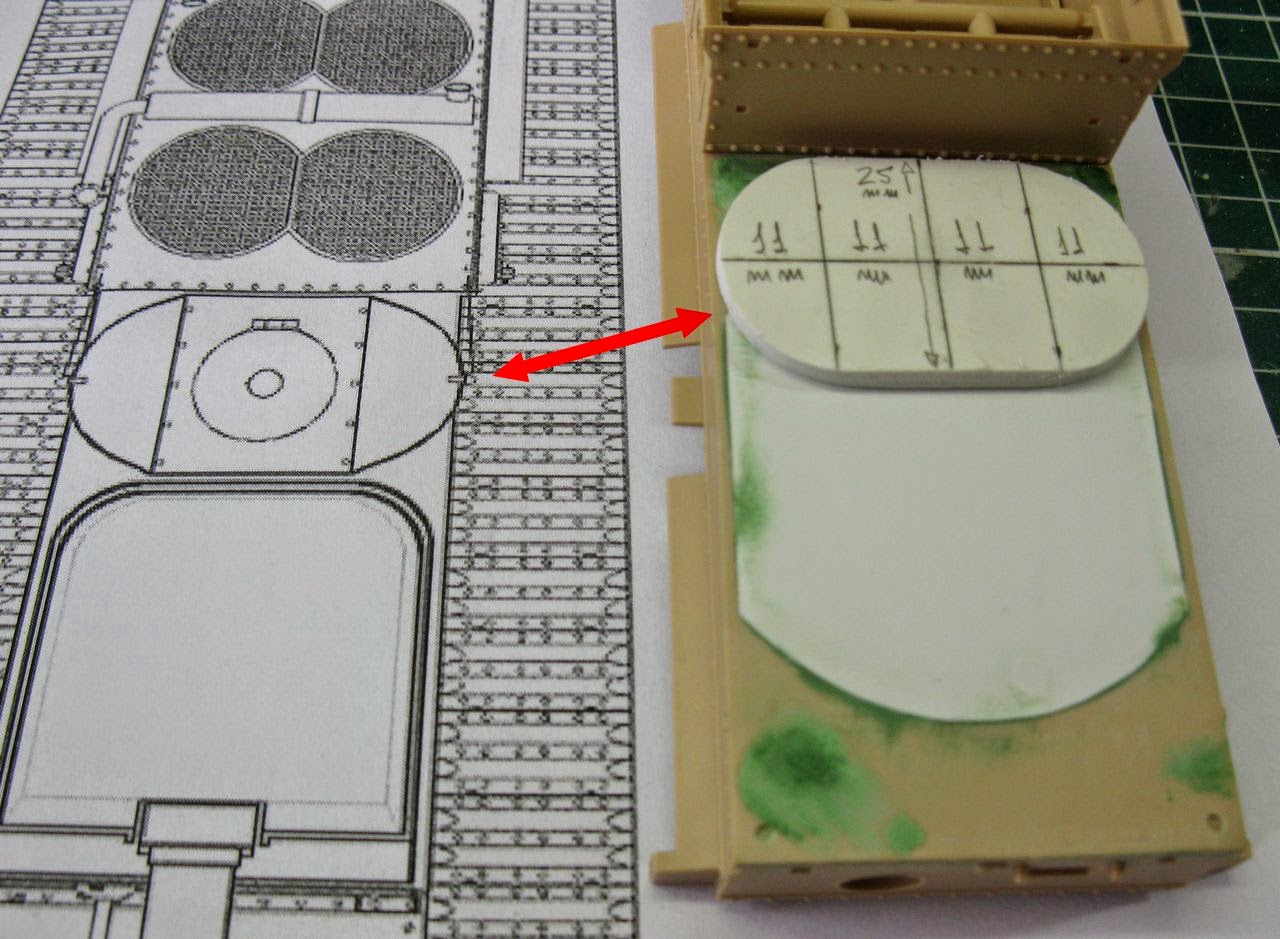

       While the auxiliary turret dry,  we start the main turret. Base is measured and cut ...
Notice the very complicated cutting template...
Testing the parts...

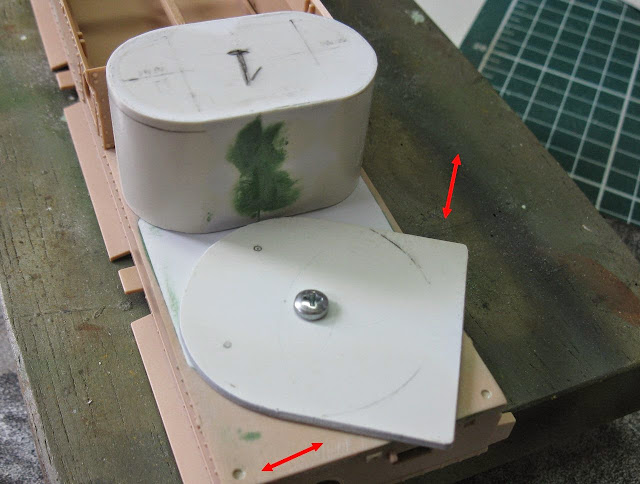

       After that, testing the main turret in movement...

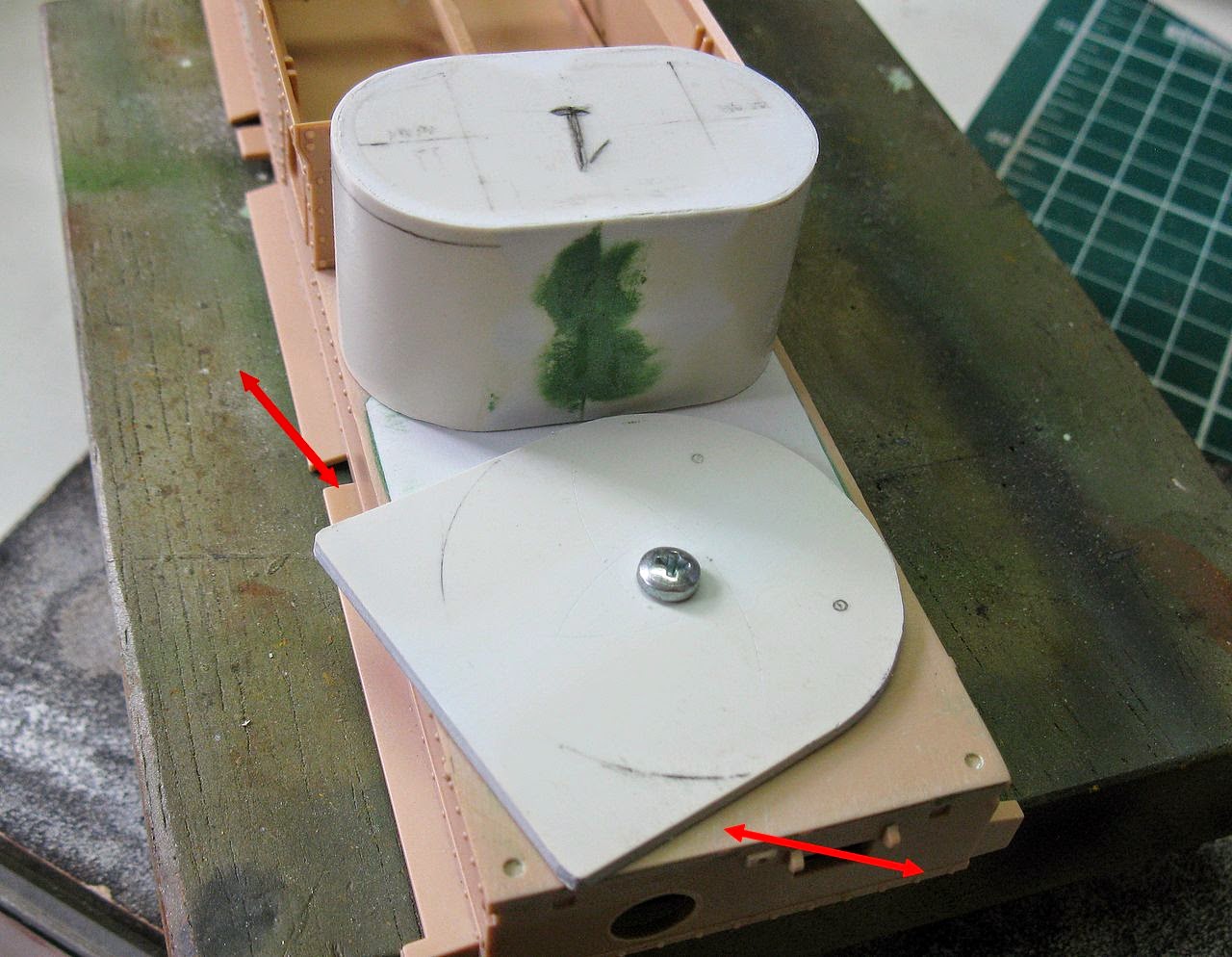

The screw as movement pivot...
Left eyes !!!
Right eyes !!!!
       The auxiliary turret, almost done !!!

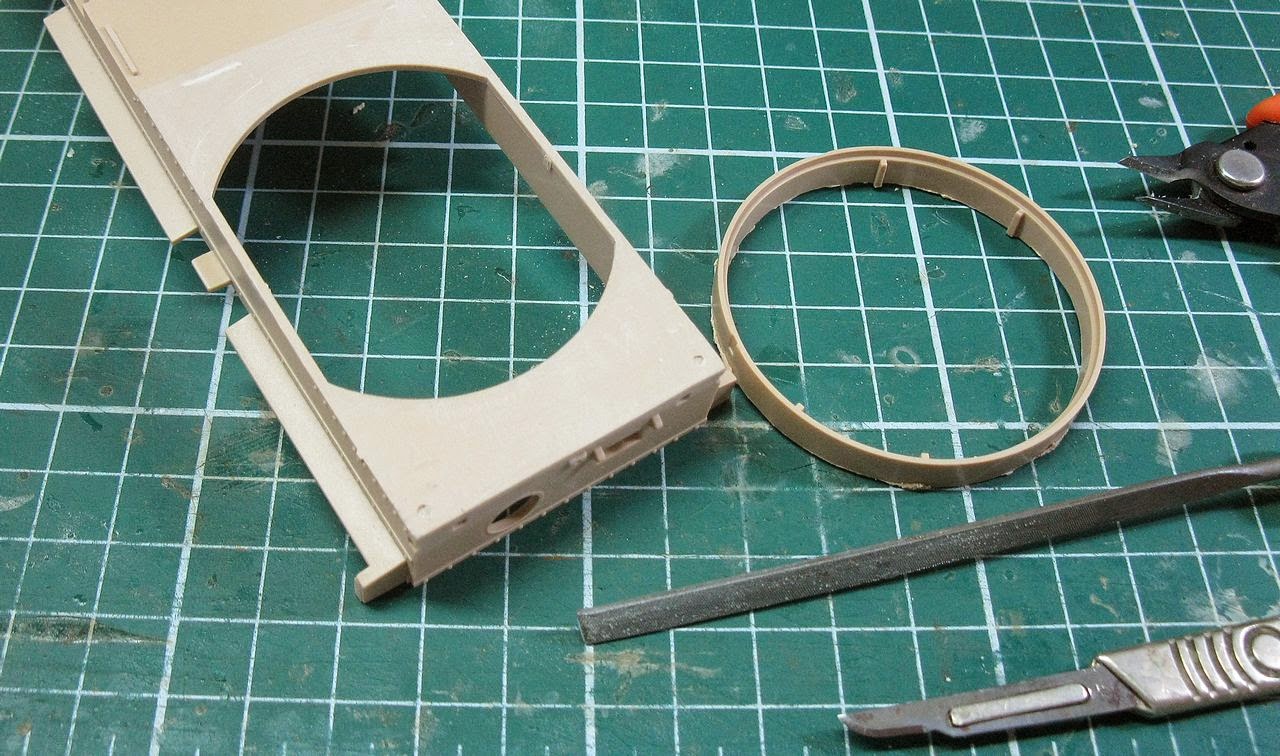

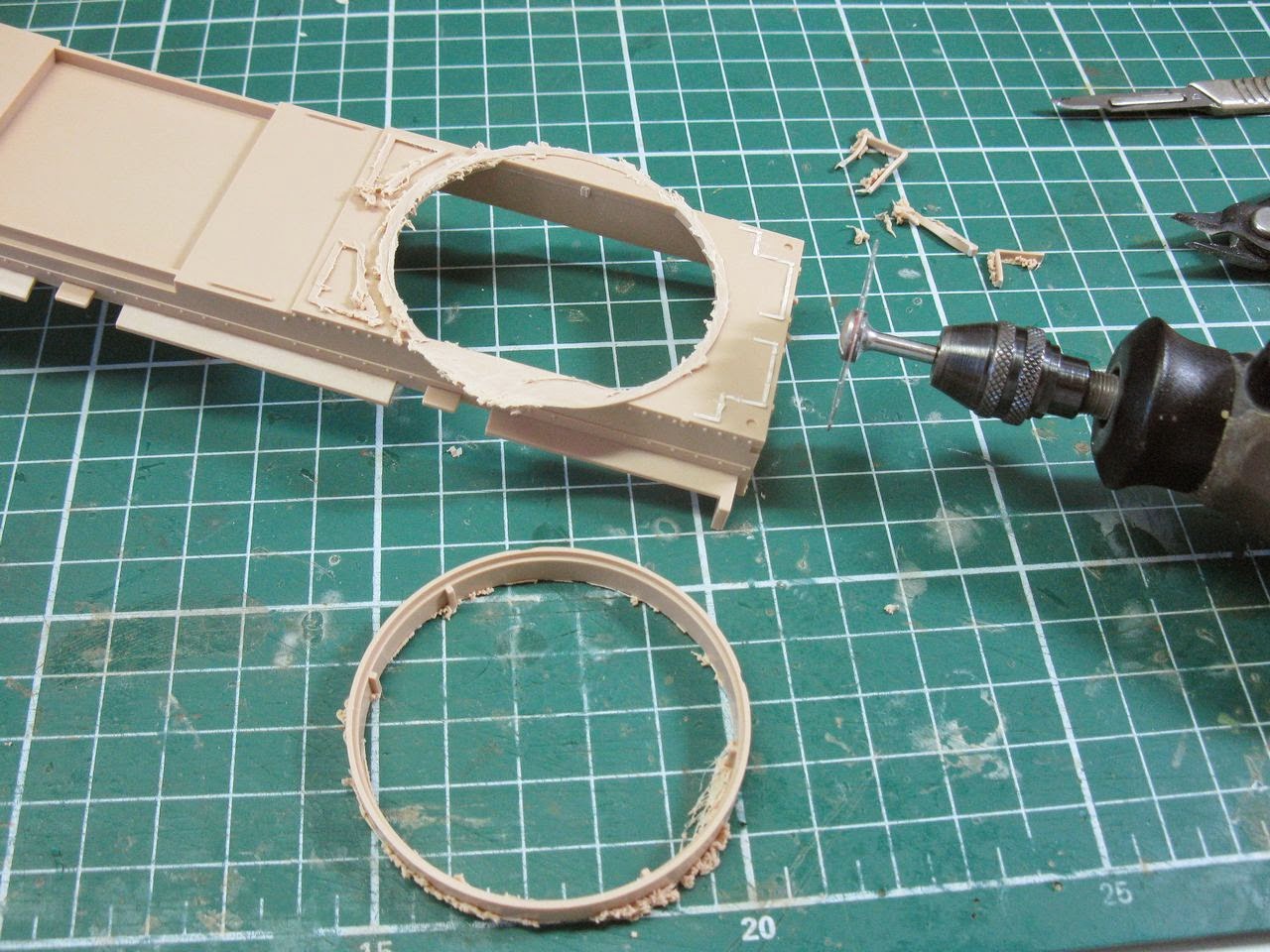

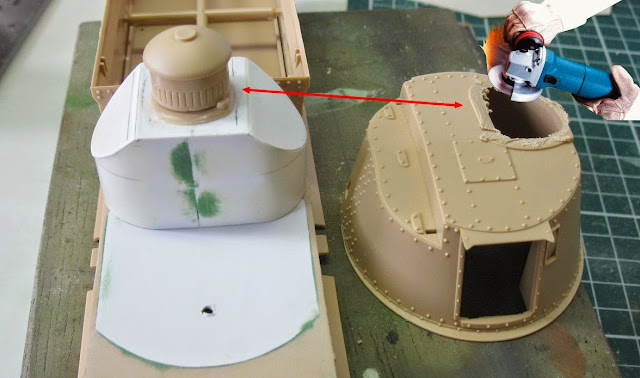

       The old turret under surgery... The new auxiliary turret has a crown !!!
Cool !!!!
Yesterday (Sunday) was the main turret day !!! After almost finishing the auxiliary turret (which was easy), my challenge is to build the main turret. . The biggest problem will be to make the gun stay mobile with elevation and depression of the howitzer. But as said Jack the Ripper: "Let's do the thing in separate parts ..." My idea is building the turret with plasticard (for the bottom and top) and balsa wood, for the core. The wood will be laminated with very thin plasticard, after...

Starting the main turret. I used two layers of balsa wood with 5mm height.
 I glued the wood together with PVA glue and drops of cyanoacrylate.
Making the place of the future gun's rotor...
      I glued the wood together with PVA glue and drops of cyanoacrylate. Then I glued block of wood in the plastic with cyanoacrylate, again:

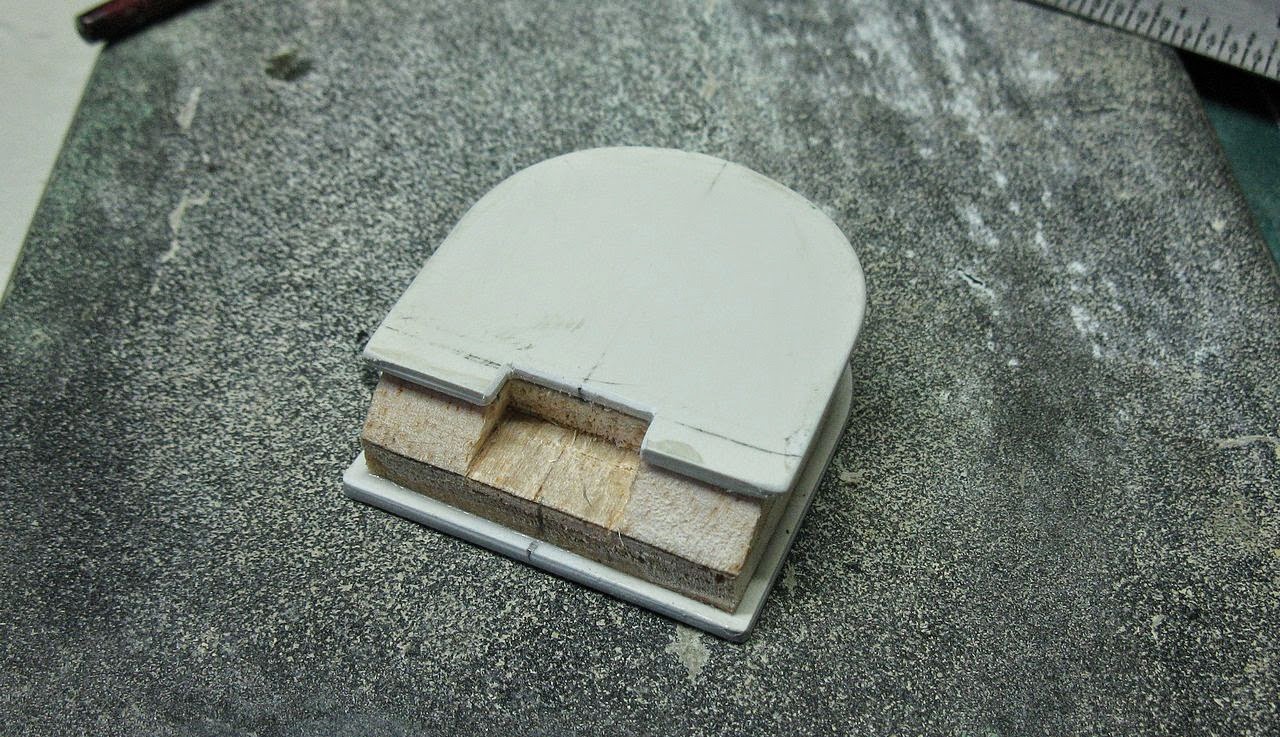

The bottom part of the main turret done. The sides will be laminated with thin plasticard...

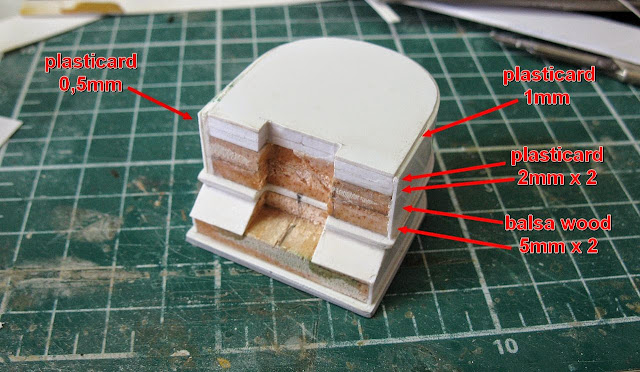

      The upper part of the turret was built following the same recipe. The difference is that the top was made with a triple layer of plasticard, to allow the cutout (rounded) the edges of the top.
The main turret in details. Notice the gun rotor gap..

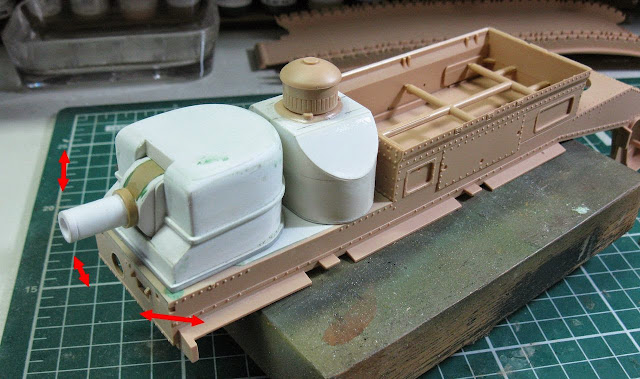

Testing the main turret with the auxiliary ...
      Following the Jack's motto, it's time to do the howitzer. In the photo and drawings, the short barrel of the 155mm howitzer emerges from a rotor... When thinking about this, I remembered that one was left a rotor when I built my Char b1bis quadruple project, from the Flamm version ... I love my spare parts box!!
Char B1bis gun rotor spare part. A bit narrow, but easily fixable ...
      After I removed the 75mm cannon, increased the thickness of the rotor with two plates of plasticard. The thing was perfect!!
Testing the rotor thickness... Like a glove !!
      I made a simple system for the movement of the rotor: two plates of thin plasticard connected by a axis. The rotor rotates around this axis and this set is pasted (through the plates) in the front gap of the turret. The howitzer was made with Plastruct rod and the gun collar was a spare port of Char B1.
The turret (notice the front edge already rounded) and the rotor device...
The turret with all edges rounded (Dremel) and notice the thin plates of
plasticard in the sides of the rotor...
       I fit the rotor in the turret gap and glued the aparatus through tabs ...Voilá !!!

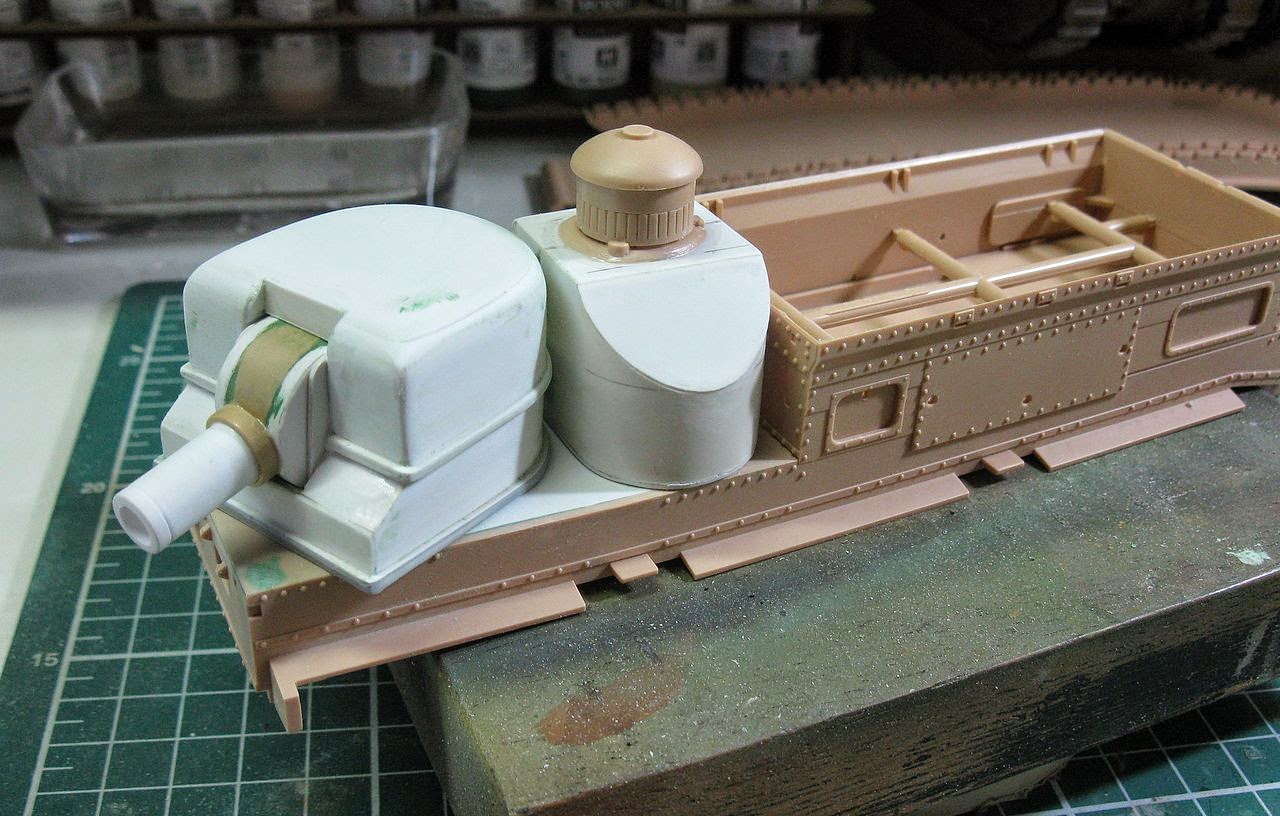

In the hull !!!  Testing ...testing...
The turret turns and the gun moves !!!

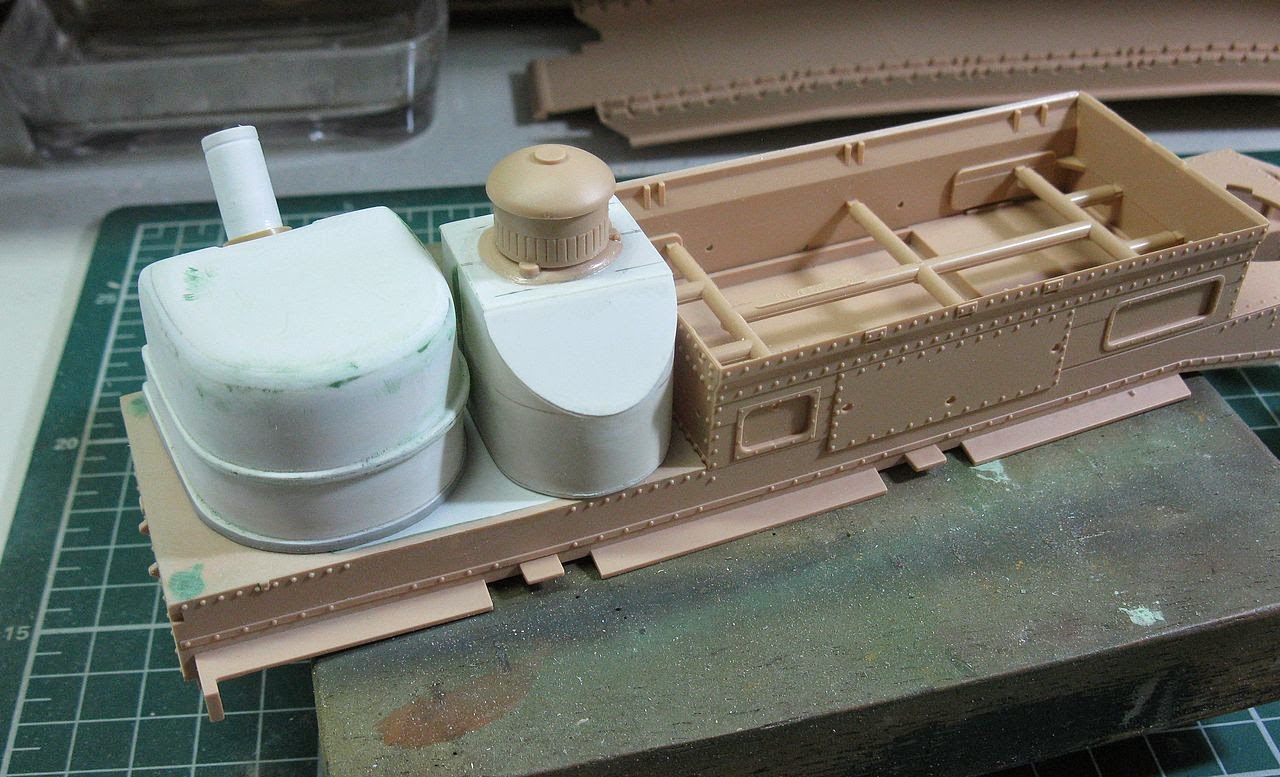

Gun up !!!
Gun down !!!
Left eyes !!!
Right eyes !!!

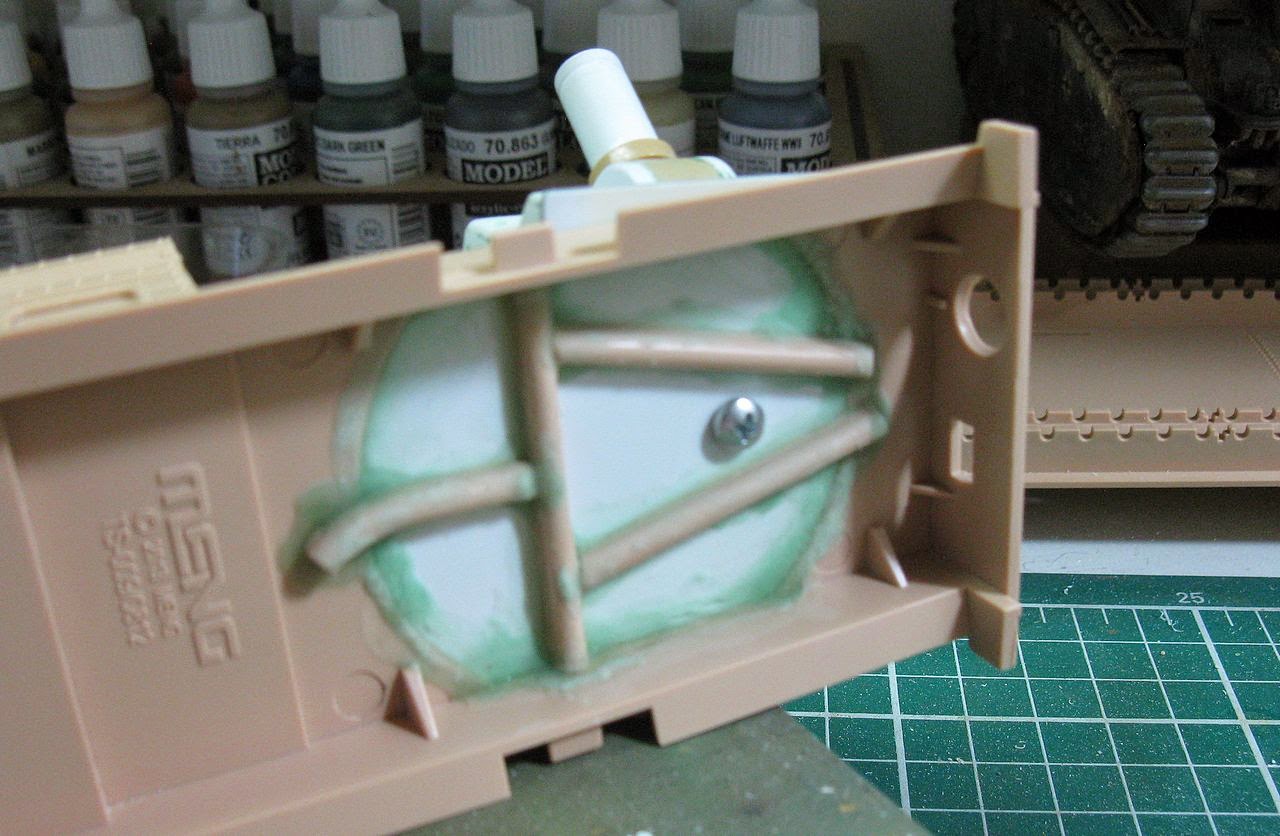

            Bottom view. The little screw allows the turret movement...
So I made the two "reinforcing beams"  in parallel ...
      The beautiful girl, armed and dangerous!
The main turret done !!!

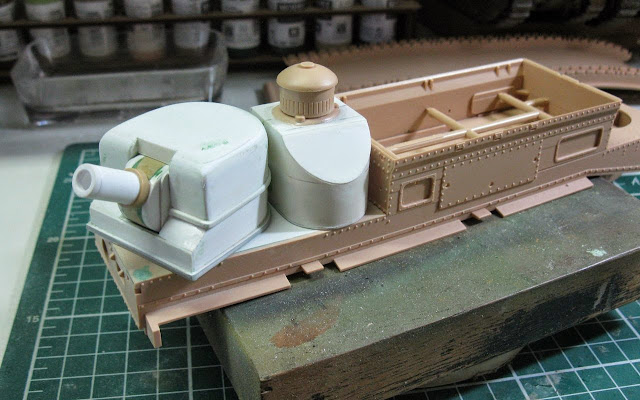

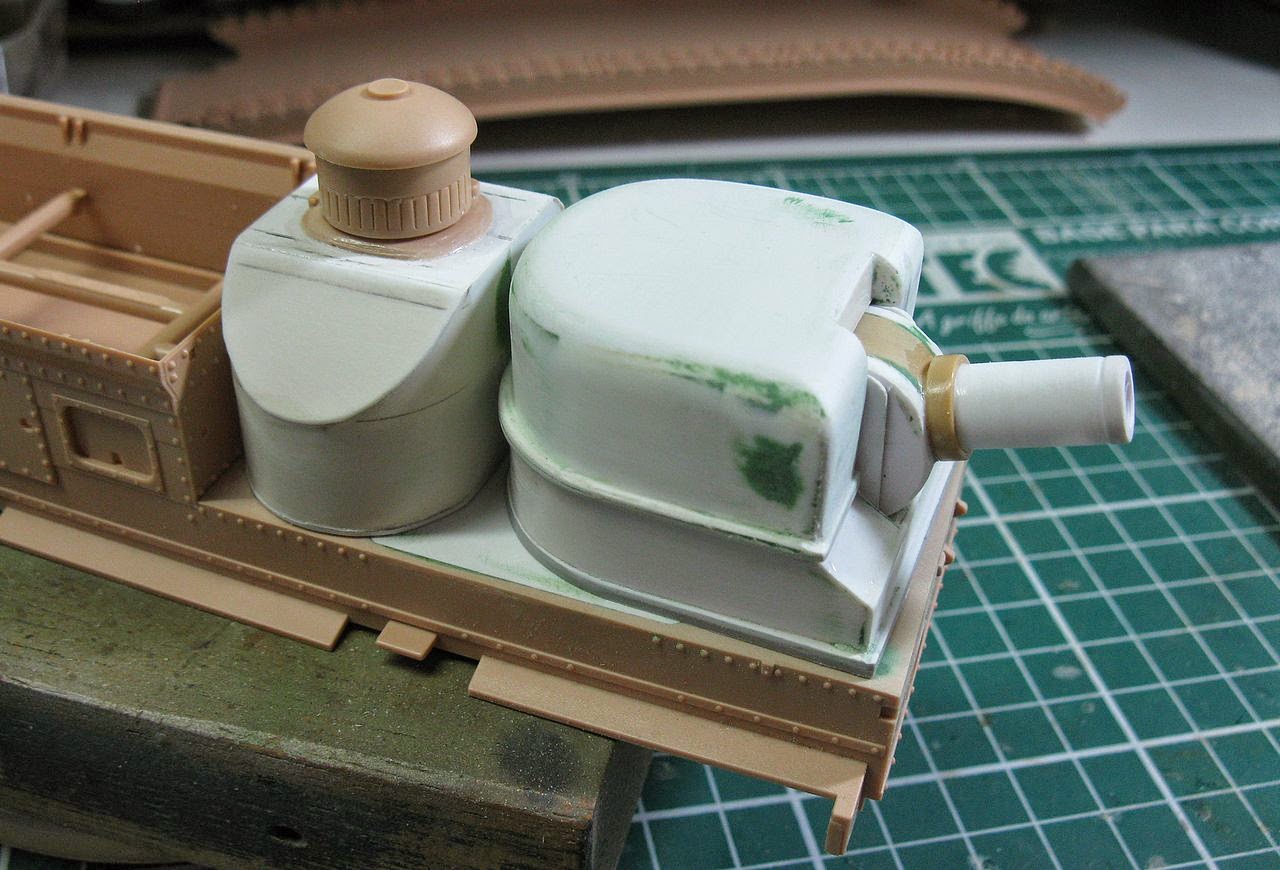

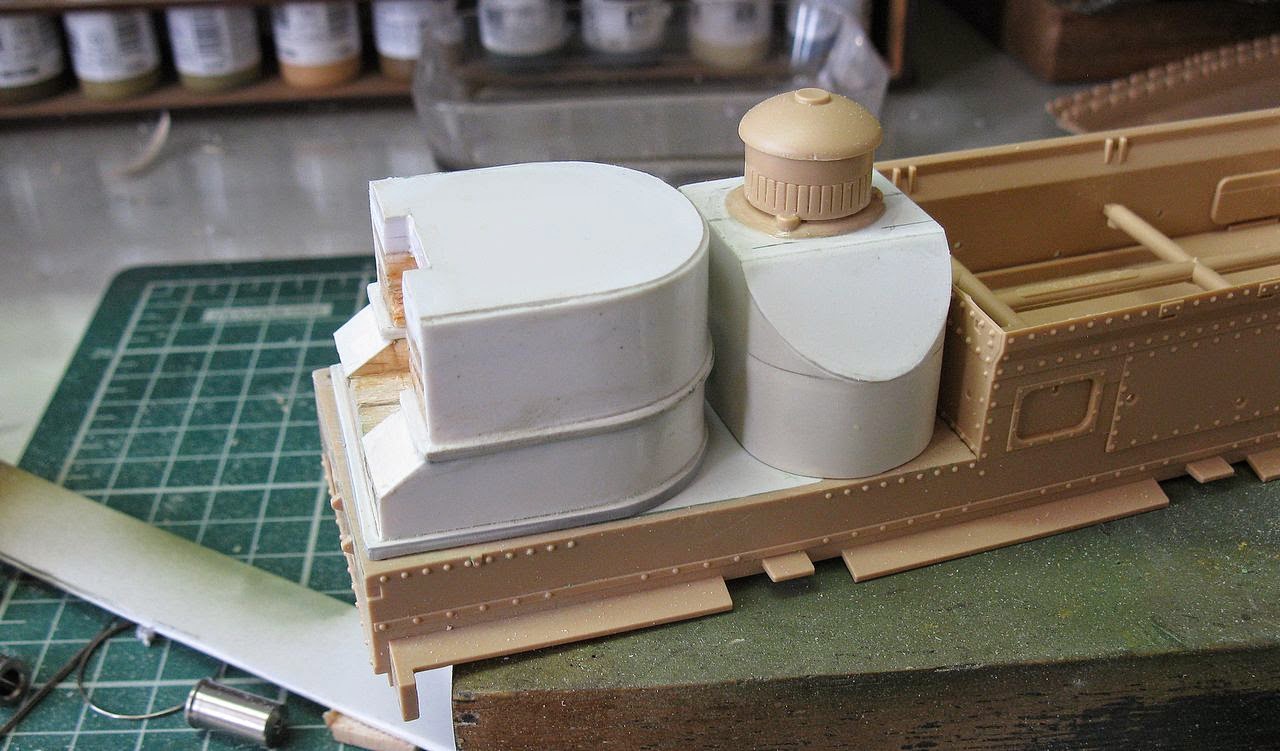

The two front turrets in place, in dry-run...

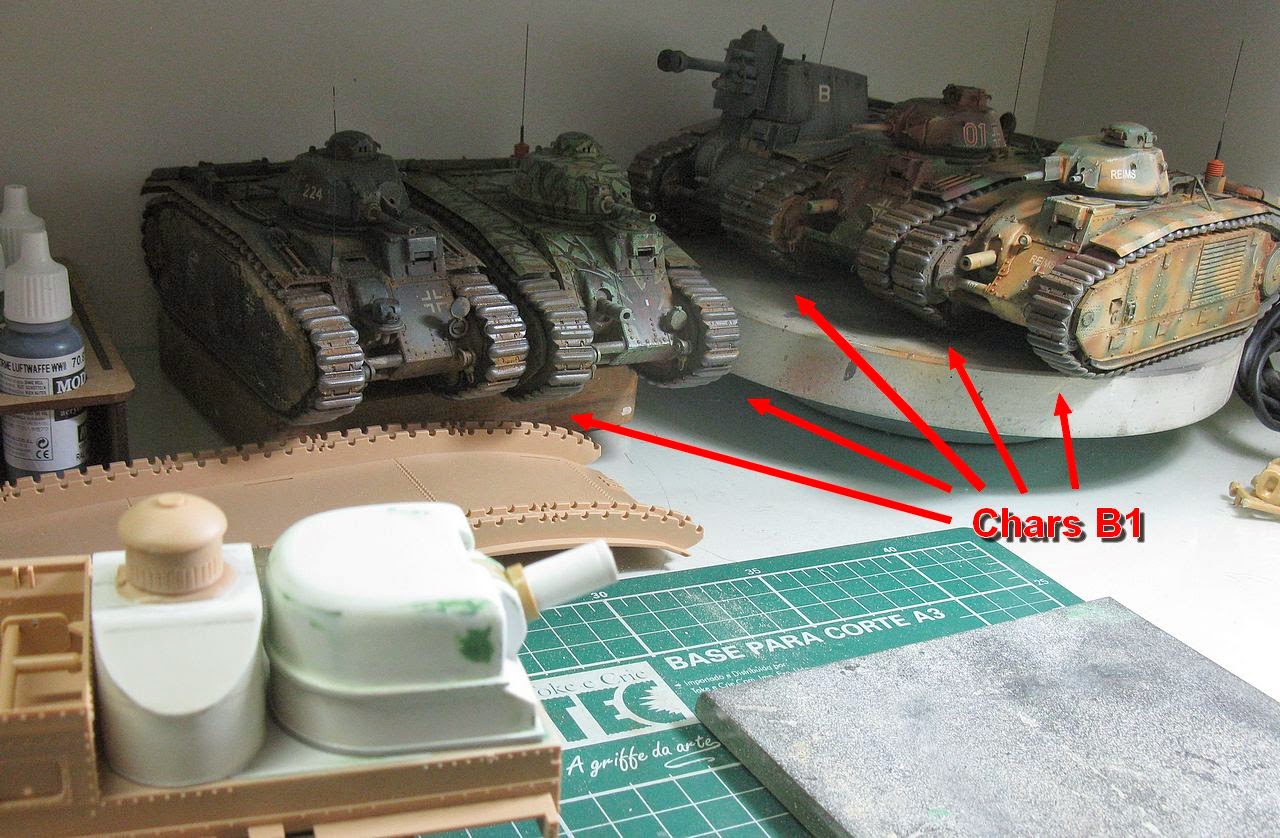

And the Char B1 girls, in the wait stand...
Well, Gents...Today, I could work on this beauty. My office was being repaired and in a Spartan Wednesday, I attacked the project. Let's go !!!!

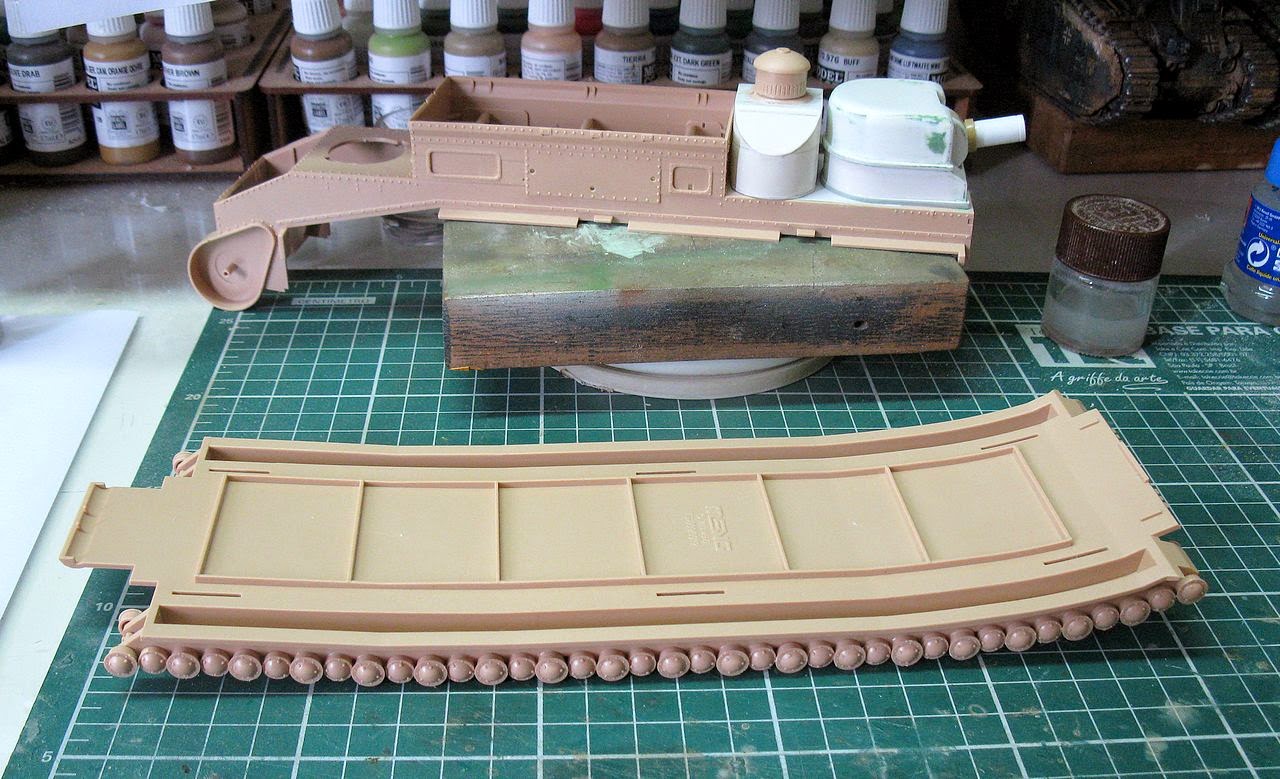

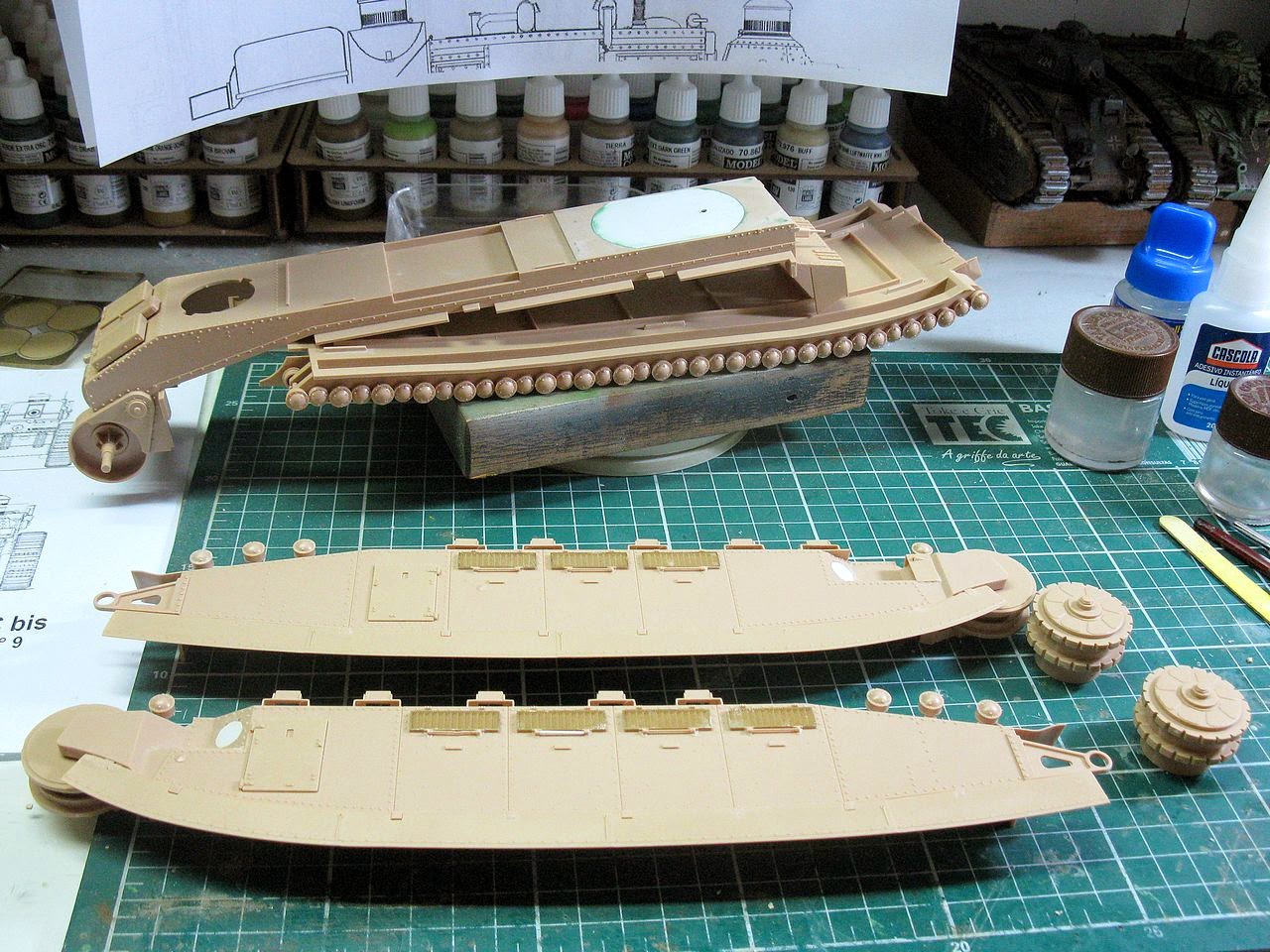

Building the suspension and the chassi...by the book !!!
The sides of the hull. Notice the absence of the MGs...

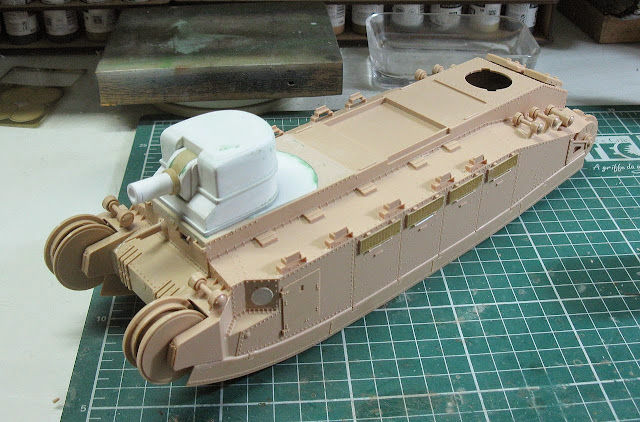

The tank, stands and with the main turret in place...
       According to the literature, the turret was casted. As the plasticard features a very smooth surface , I'll do the casted texture with putty diluted in acetone.

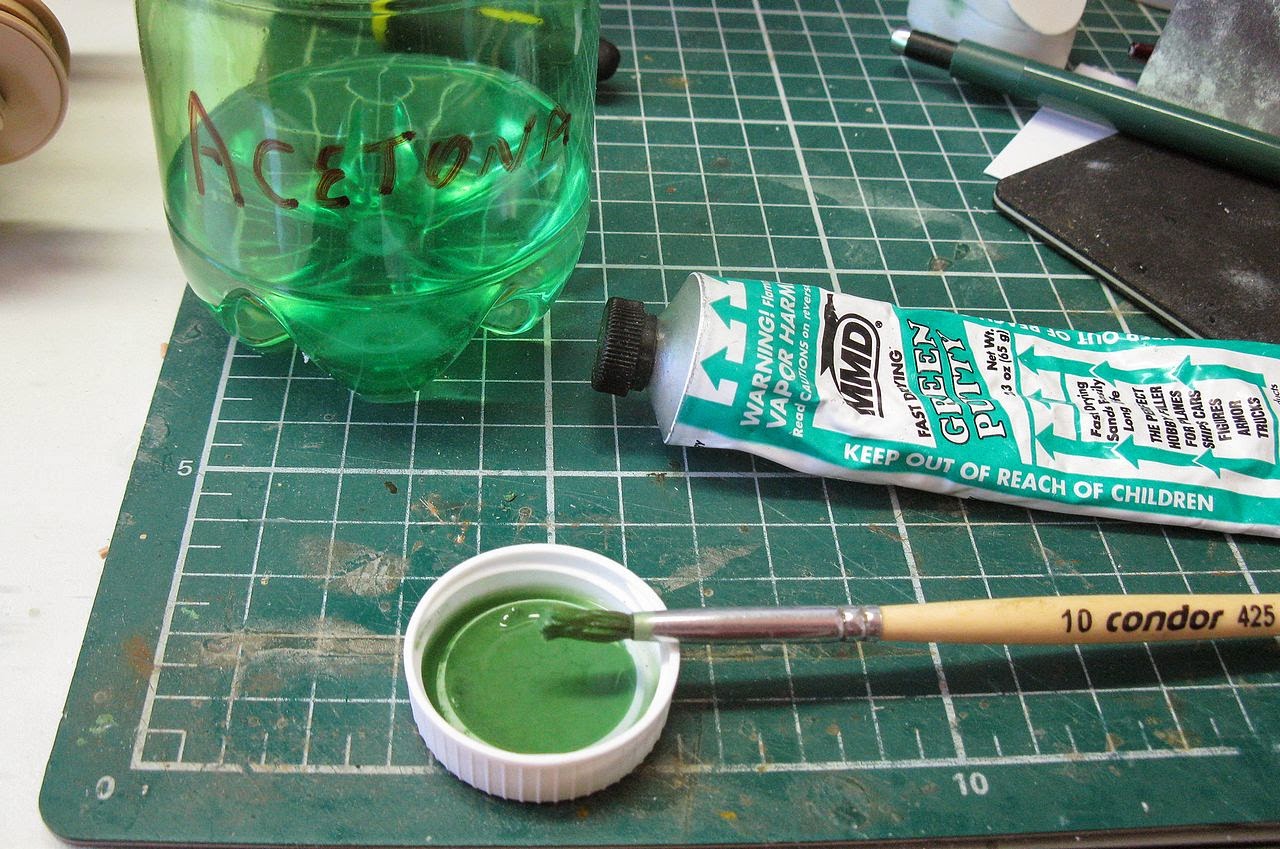

Putty+acetone = corrugated texture...

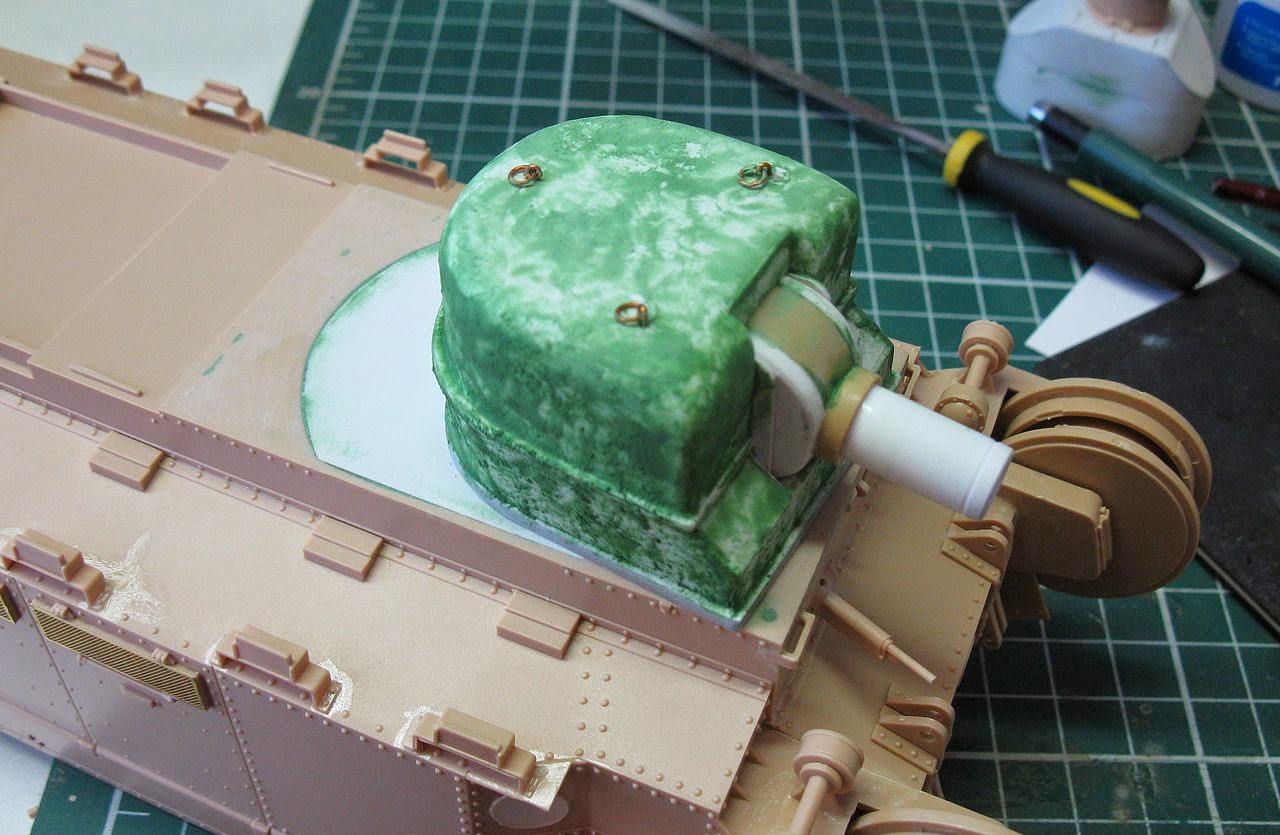

Done. Notice the the lifting rings in the roof of the turret.

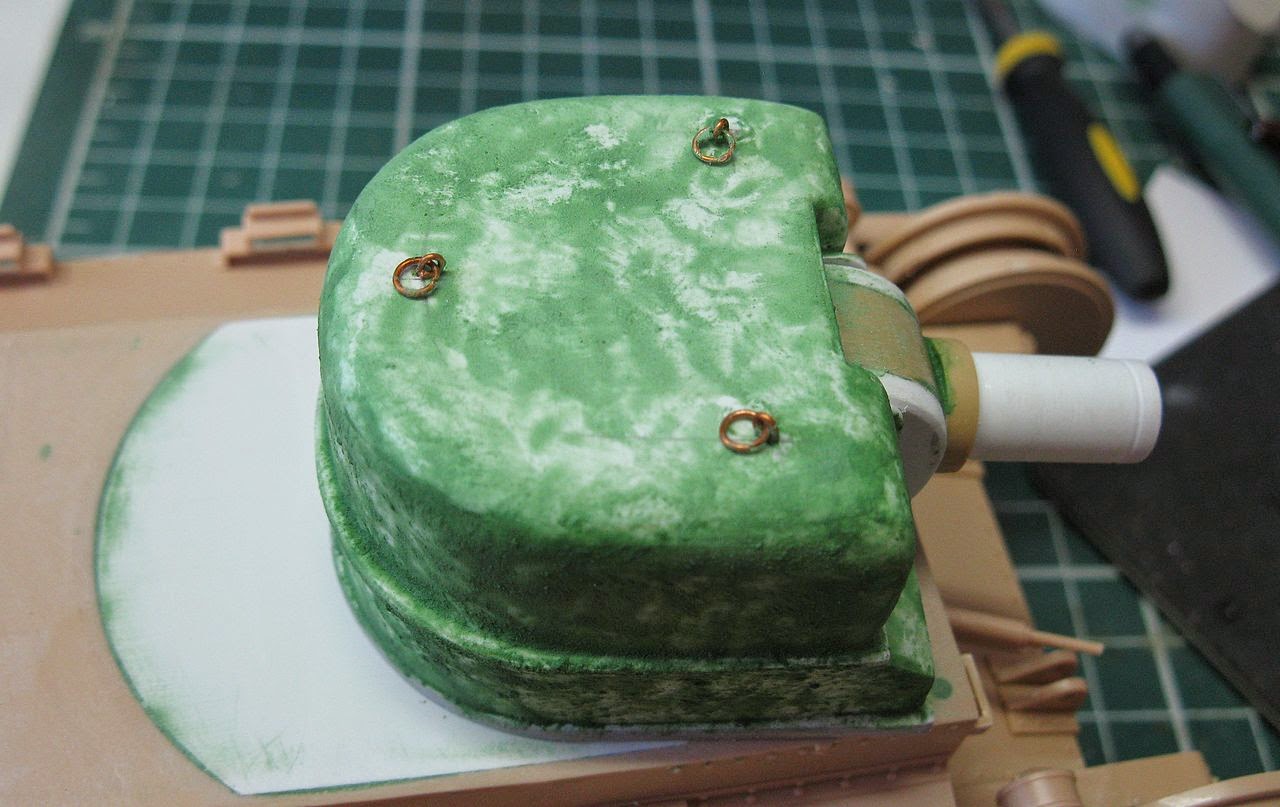

Lifting rings in close...
Details in the auxiliary turret.

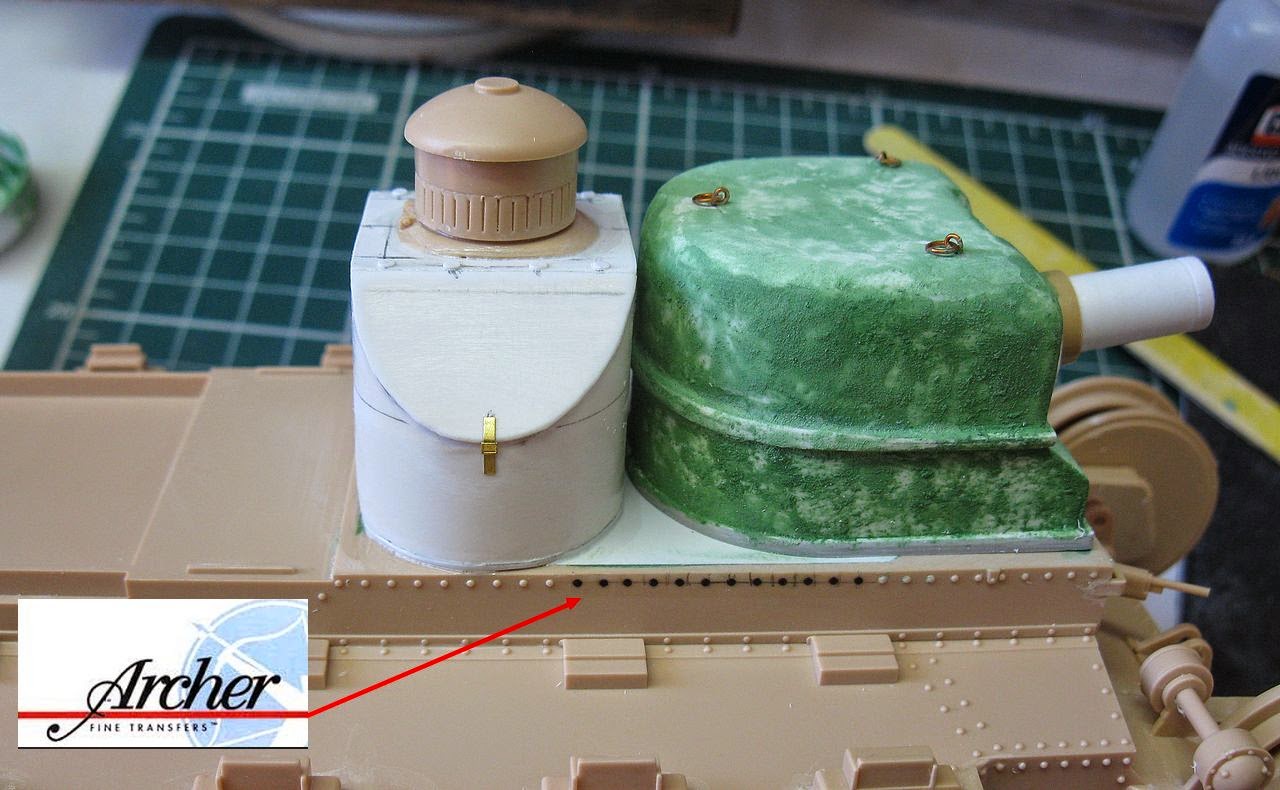

Notice the rivets in the hull, made with Archer surface decals.

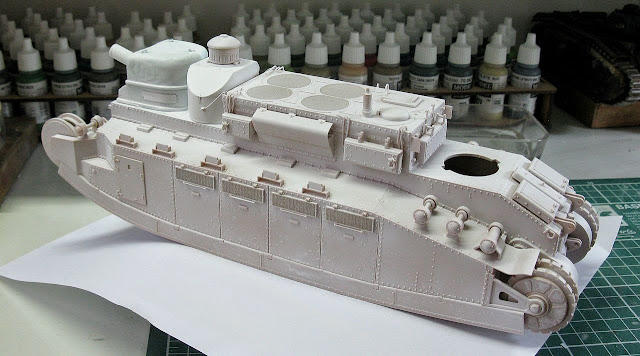

Ready for paint...



      About the colors, I do not like to do this beast in monochrome, as my standard FCM 2C. As it was a unique version (and interwar era ... with very much propaganda connotation ...) , I thought of a well flashy camouflage scheme!
       My Belgian friend Alain Drèze sends to me a very beautiful example of camouflage scheme of the FCM tanks ...and i love it !!!
Alain's avatar ...Thanks , Alain !!!!
French FCM 1A tank - 3 color cammo
      So, let's paint the tank!!!  Primer Valejo, first !!!

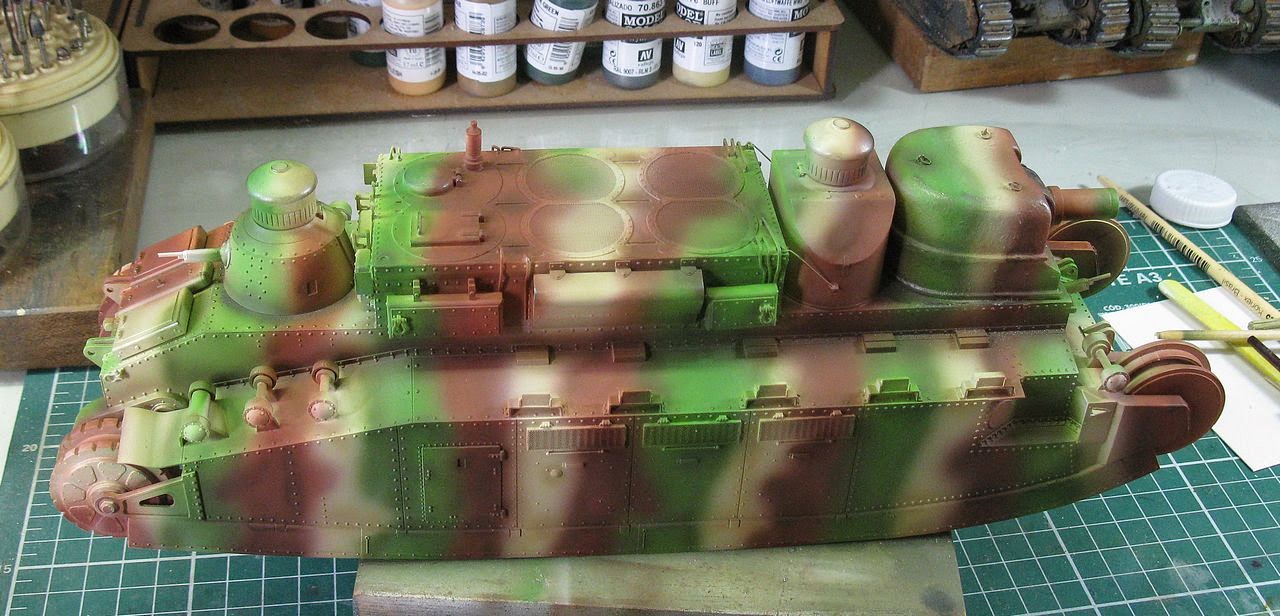

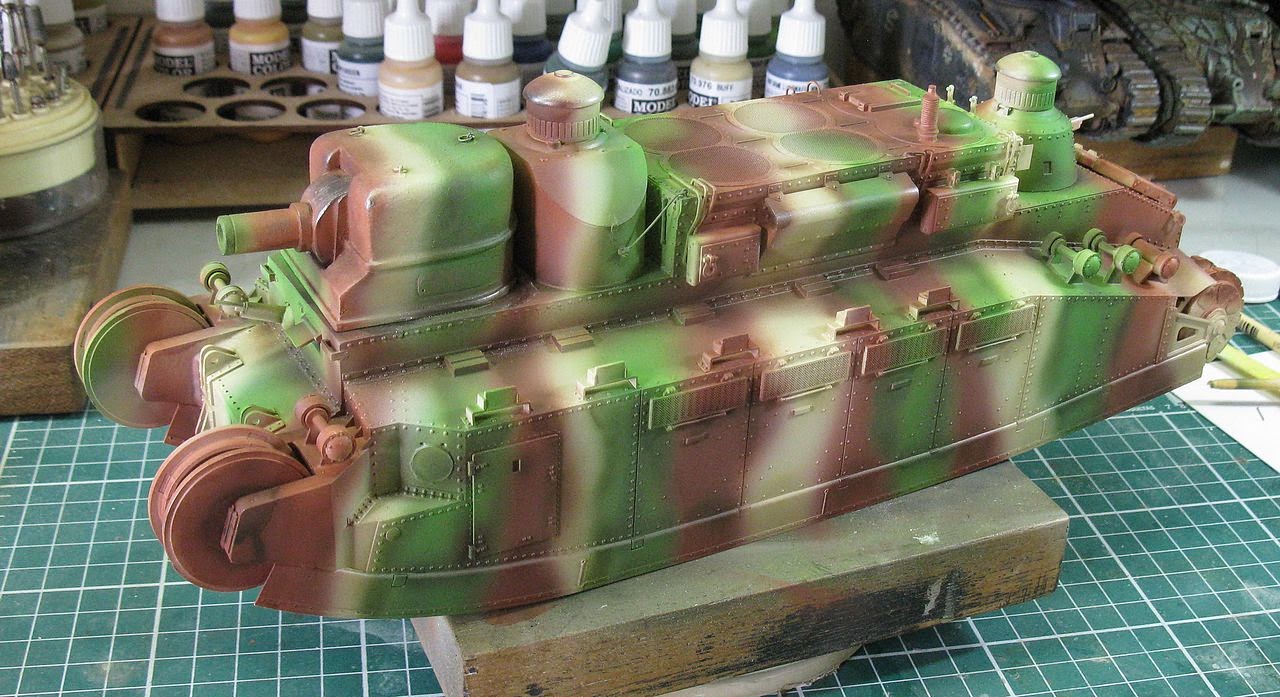

And the cammo...Wow...Very discreet!



Next, weathering and tracks !!!

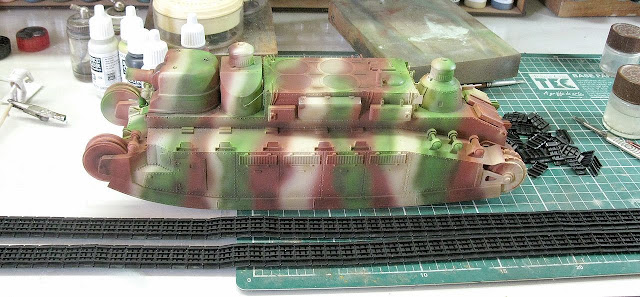

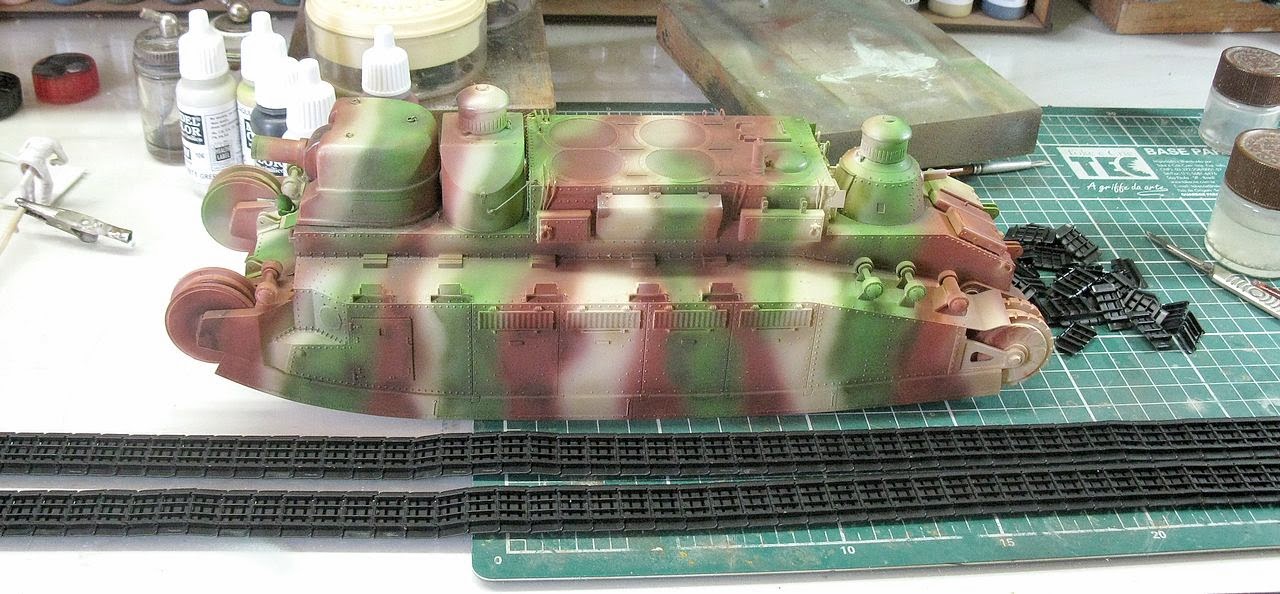

  It's time to install the tracks of the tank ...Easy and smooth.
Tracks ready for installation...
      Now, the best part: the markings and decals...As we've seen in the previous article, the FCM 2C  tanks were baptized with the names of ancient provinicas of France. The number 9 was the Champagne. I have been searching about the ancient province of Champagne and discovered the beautiful coat of arms of this wonderful region:
Original coat of arms of the County of Champagne.
      The FCM 2Cs were important propaganda weapons of France in the interwar period and some of these vehicles sported the coats of arms of the regions of their names on the left side of their turrets.

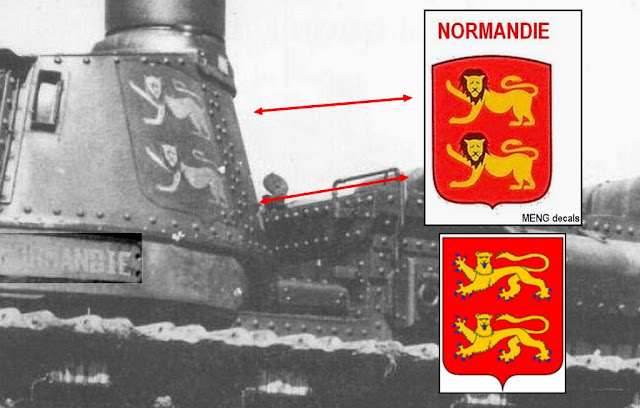

FCM 2C Normandie (97) with the coat of arms in the left side of the turret
The NORMANDIE (97) with the Lions of Normandie

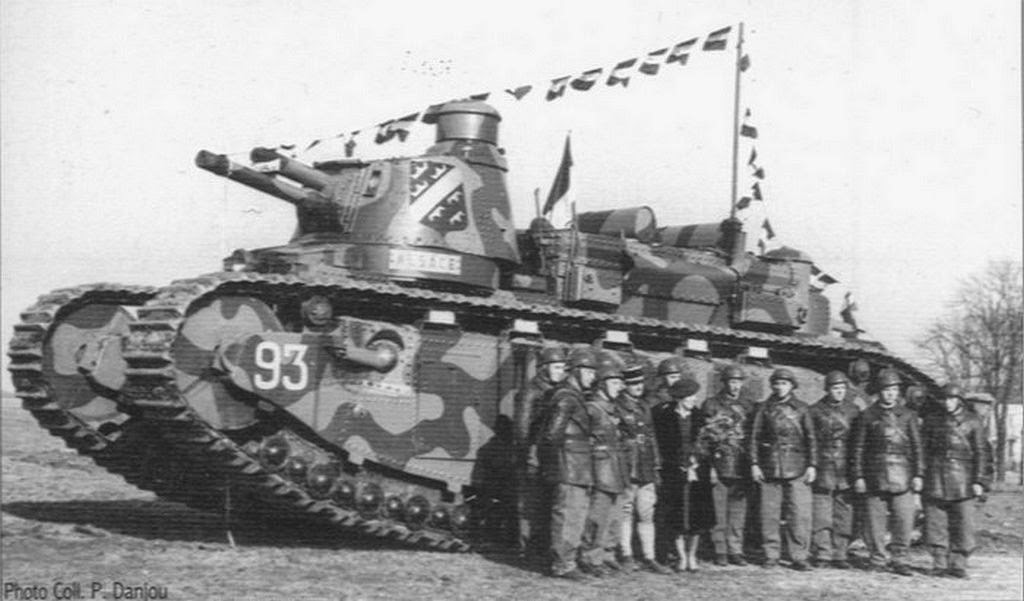

FCM 2C ALSACE (93) with his beautiful coat of arms.
       The MENG  provides these two colorful versions in the original decal sheet of the kit.
      Since I'm building the Champagne, I decided to make the decal of the coat of arms of the Province of Champagne to decorate the turret left side of my puppy ...
Panzerserra's decal art
      I updated my profile:
FCM 2Cbis CHAMPAGNE
       The colors fo my kit:

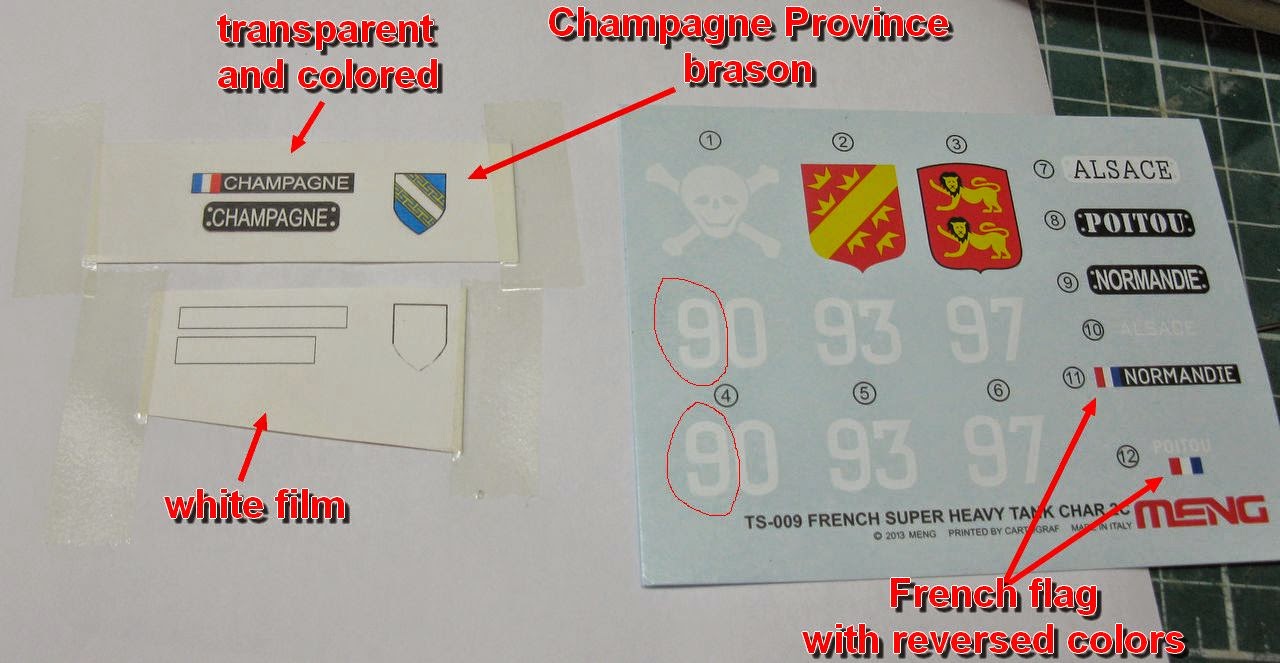

Panzerserra decals and MENG decals. I'll use the number 9 of MENG decal sheet
Notice the right French flag of my decal...
Panzerserra decal close up
and the FCM 2Cbis CHAMPAGNE (9) was born...

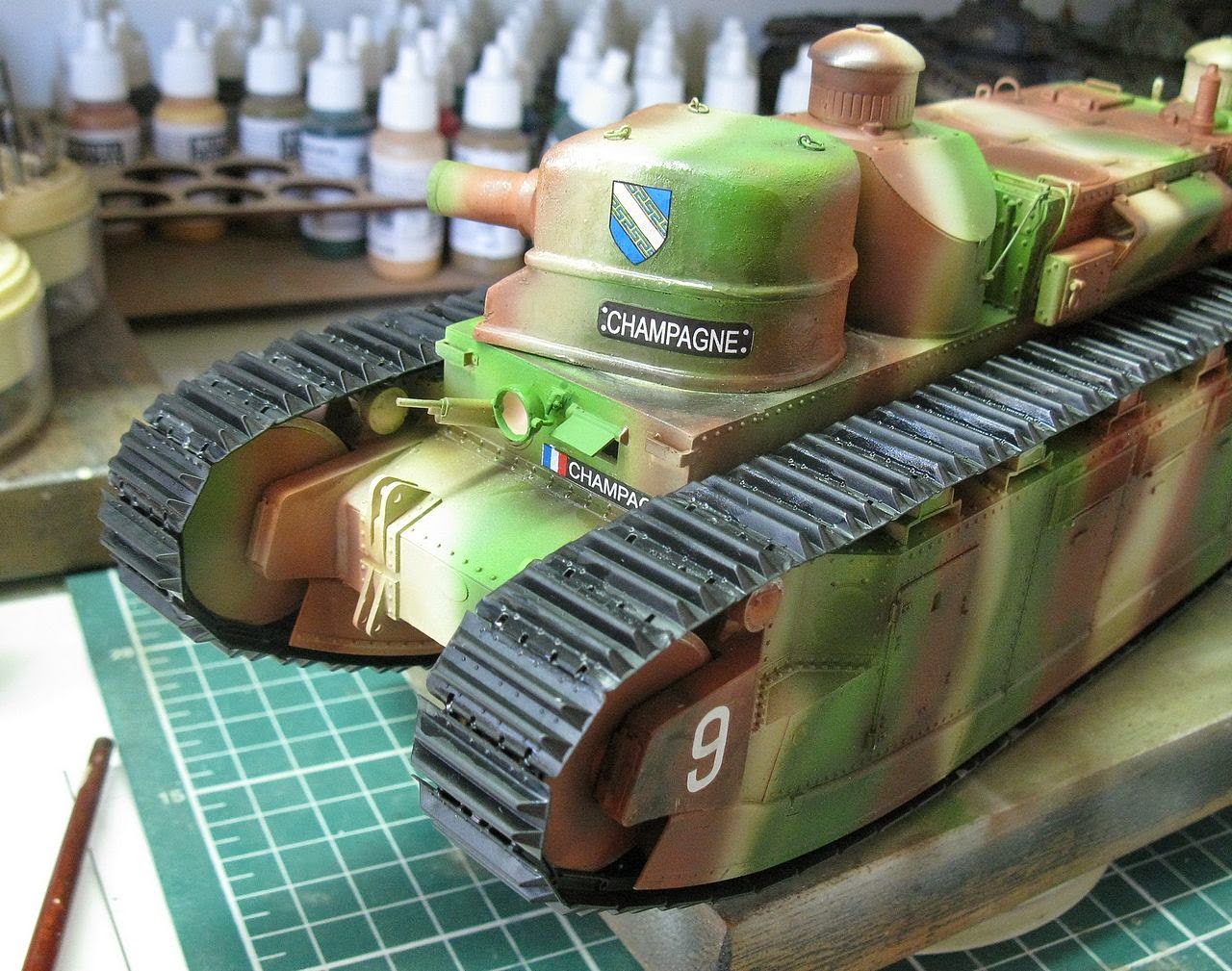

FCM 2Cbis CHAMPAGNE - left side ...starting the weathering...
FCM 2Cbis CHAMPAGNE (9) - right side



      And searching more and more, I found that the plate on the front portion of the tank does not have marking or decals in the kit:
The plate in blank...

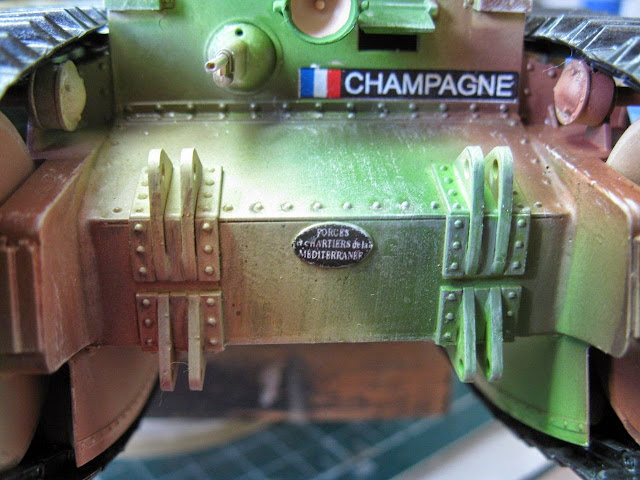

The markings of the plate...
Decals for the FCM 2C and FCM 2Cbis...
FCM 2Cbis Champagne
FCM 2C Normandie
Painting the background in white (in the two tanks...) Normandie pictured...
Decal in position...Normandie
Decal in position...Champagne. I corrected the decal position after the picture...

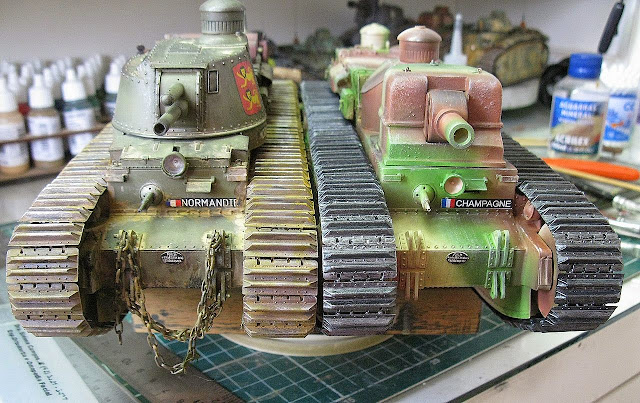

The two big girls, side by side...
Notice the tracks, in different positions of the links.
Finally, I finished the job. The MENG kit is amazing and this version was awesome...I hope you enjoy. I loved it! Another unique and rare model for my collection !!!!

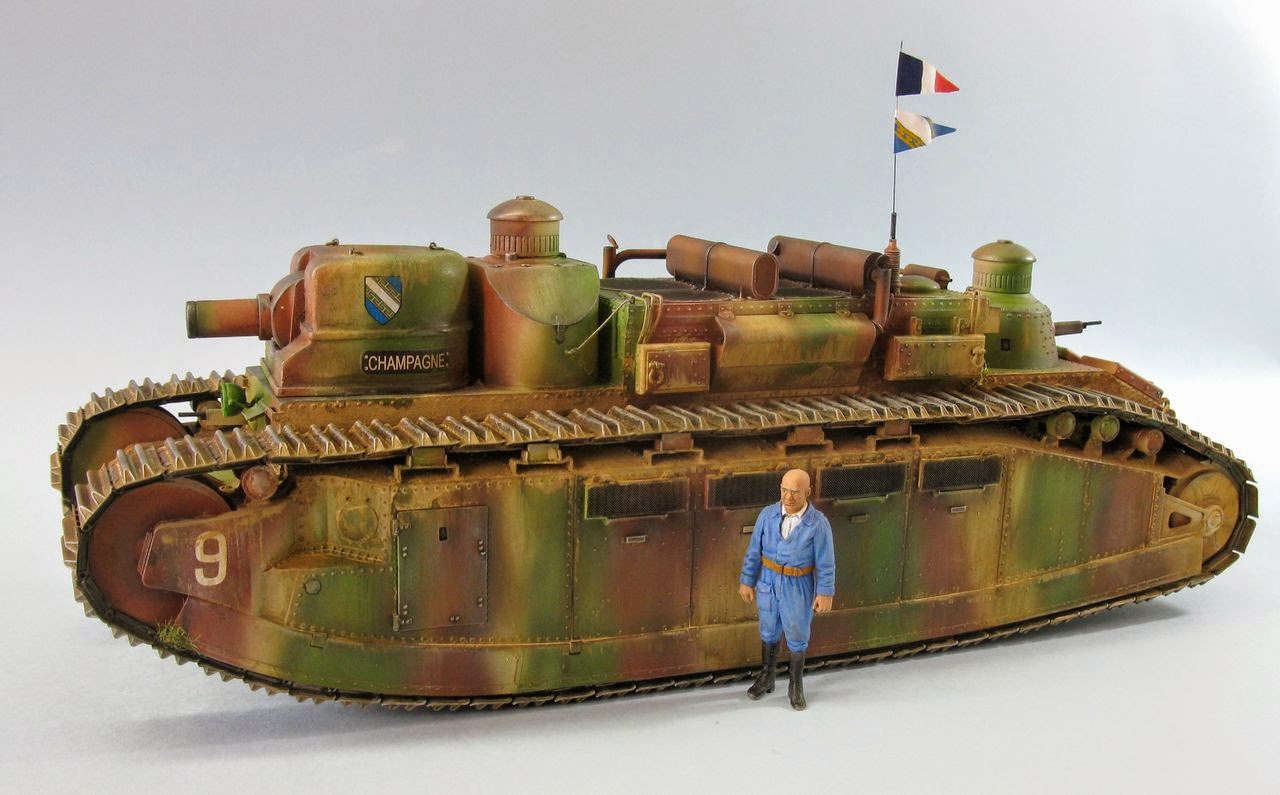

Char FCM 2Cbis n°9 - CHAMPAGNE - France, 1930

Char FCM 2Cbis n°9 - CHAMPAGNE - FCM pattern cammo

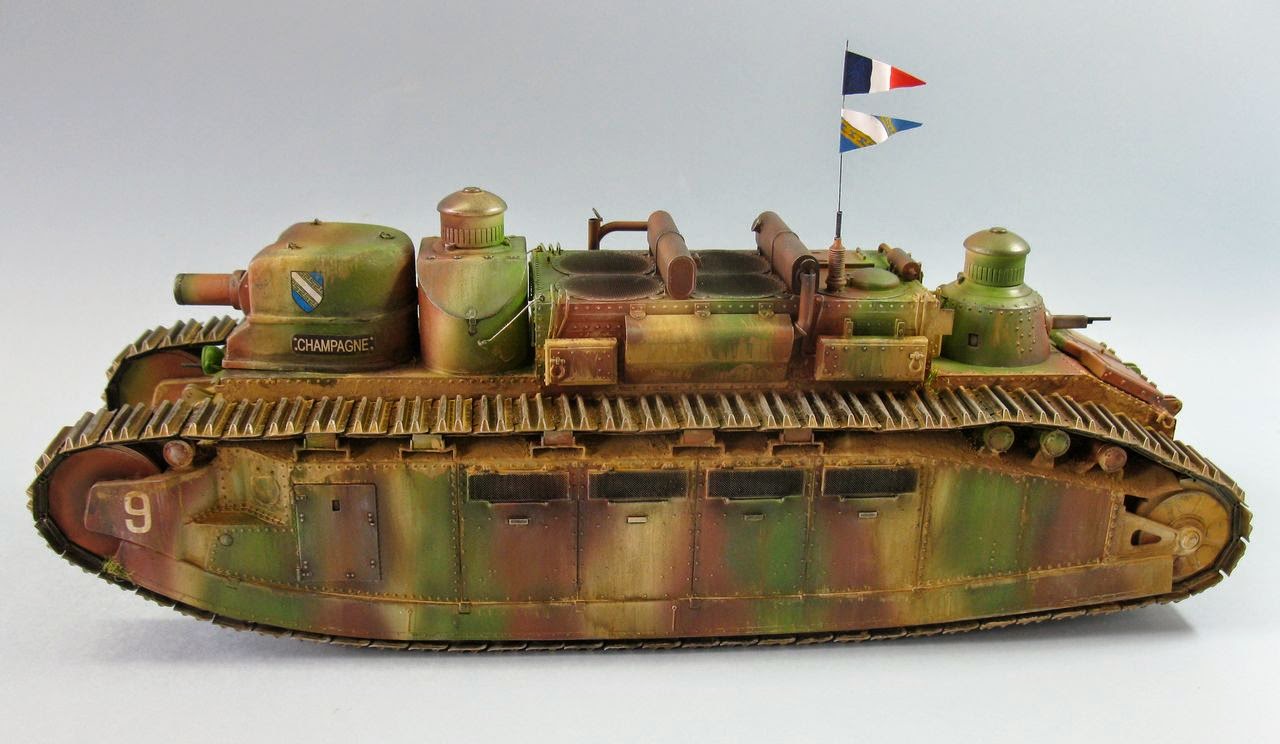

Char FCM 2Cbis n°9 - CHAMPAGNE - left side


Char FCM 2Cbis n°9 - CHAMPAGNE - rear view

Char FCM 2Cbis n°9 - CHAMPAGNE - right side

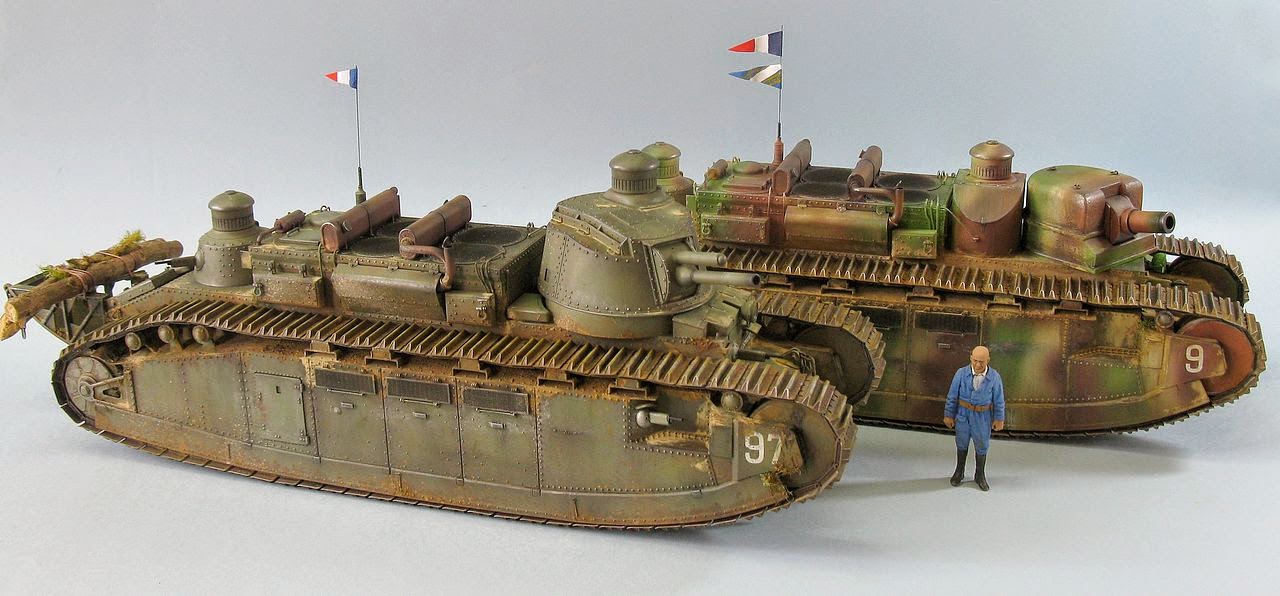

Char FCM 2C n°97 - NORMANDIE  and Char FCM 2Cbis n°9 - CHAMPAGNE


Char FCM 2C n°97 - NORMANDIE  and Char FCM 2Cbis n°9 - CHAMPAGNE
with Kojak, for size comparison.
Char FCM 2Cbis n°9 - CHAMPAGNE
with PanzerIV Ausf F, for size comparison.


Char FCM 2Cbis n°9 - CHAMPAGNE with Kojak.
Merci beaucoup pour se joindre à moi, mes amis!
See you, soon !!!
