Ford V3000S 4x2 Neuer Art - metal and wood cabin - case report

Comrades!!!
      Another pic, another project!!! This time, is this beautiful German truck, wearing American colors, after his capture by the Allied forces in the region of the Ardennes. Here's the Ford V3000S a valuable and robust vehicle with mechanical known by American soldiers and, therefore, extremely useful in their displacement and maintenance duties.
      The truck in the photo is the version called Neuer Art, with flat front fenders, absence of the rear fenders and small headlights, but still with the metal cabin. This characterizes the mid version of these robust vehicles. As I normally do, I will seize the opportunity and build the late version of this truck, with front flat fenders and the wooden cabin. All this to save material and workmanship in the final stages of the war. See the complete history about Ford models in the post about Ford Maultier, in our Bunker.
The actual picture and the origin of this project.
Ford V3000S Neuer Art with American markings.
Specs:
Ford V3000S 4x2 Neuer Art - Metal cabin
Type
Medium 4x2 3 ton. truck
Place of origin
Germany
Service history
In service
1941 - 1945
Used by
Germany - all armed forces
Production history
Designed
1940 - USA
Produced
1941- German
Number built
+24.000
Specifications
Weight
Weight load max
3310 Kg
5830 Kg
Length
6.390 mm
Width
front axle: 1650 mm
rear axle; 1652 mm
Height (cab)
2.175 mm
Crew
driver

Engine
Ford V8-3,9 liter 95 HP - gasoline
Engine disp.
80.95mm x 95.25mm - 3922 cm3
Brakes
Oil hydraulic brakes in all wheels
Transmission
manual - 4 foward + 1 reverse
Suspensions

Wheels
Wheels size
Tires
Wheelbase
Fuel tank
Front: half-spring long.
Rear; half-spring long+auxiliary
Disc wheels with flat base rim
20x6 (front and rear)
190x20 (front and rear)
4013mm
110 liters
Operational
range
500 km
Speed max.
85 km/h

The kits:

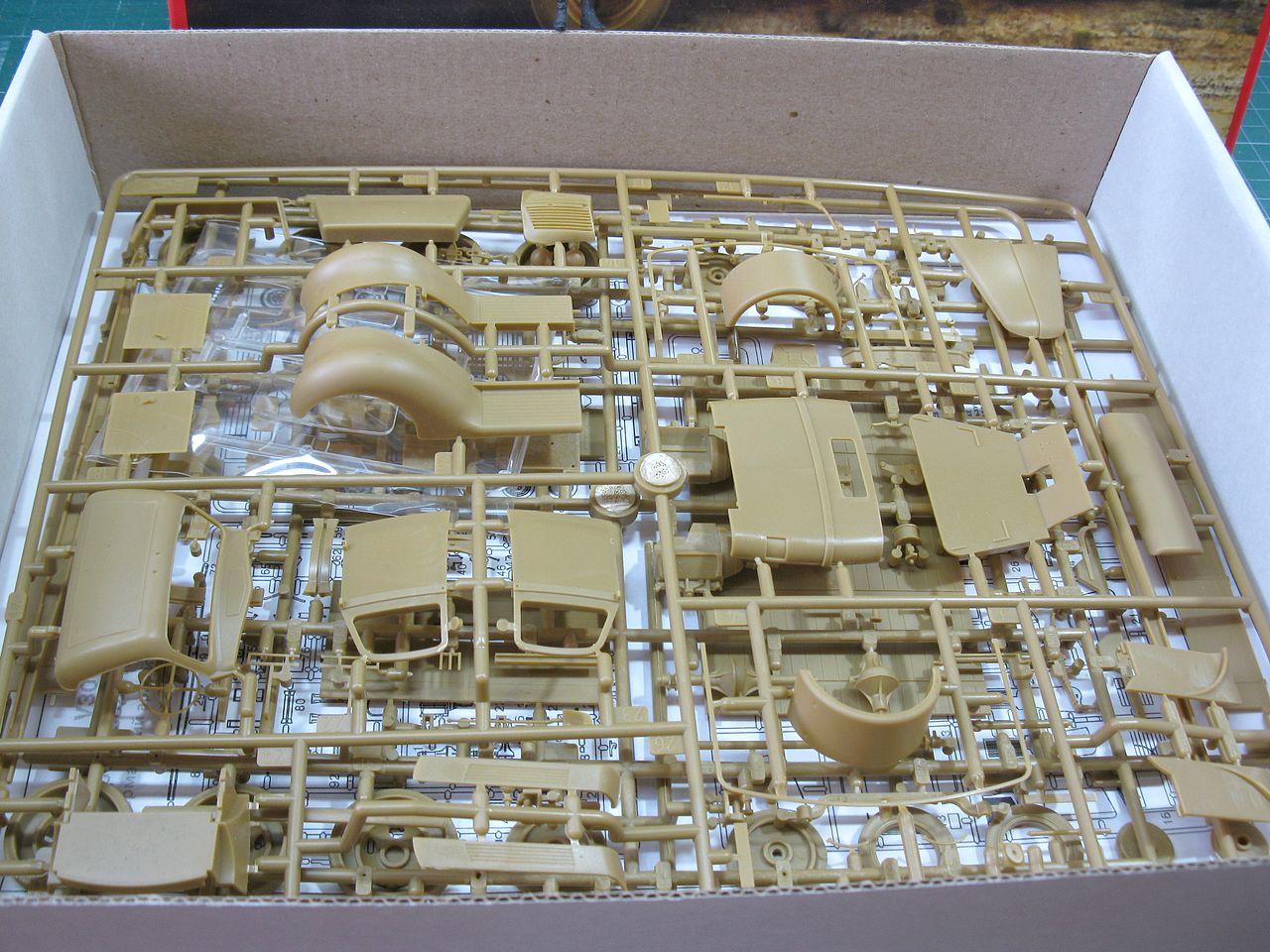

       For this work, I'll use two kits Ford V3000S from ICM:
Ford V3000S from ICM
Kojak inspecting the contents of one of the boxes

      And for neuer art version, flat fenders in resin from Dnepro Models

      Gentlemen: Start your engines!!!

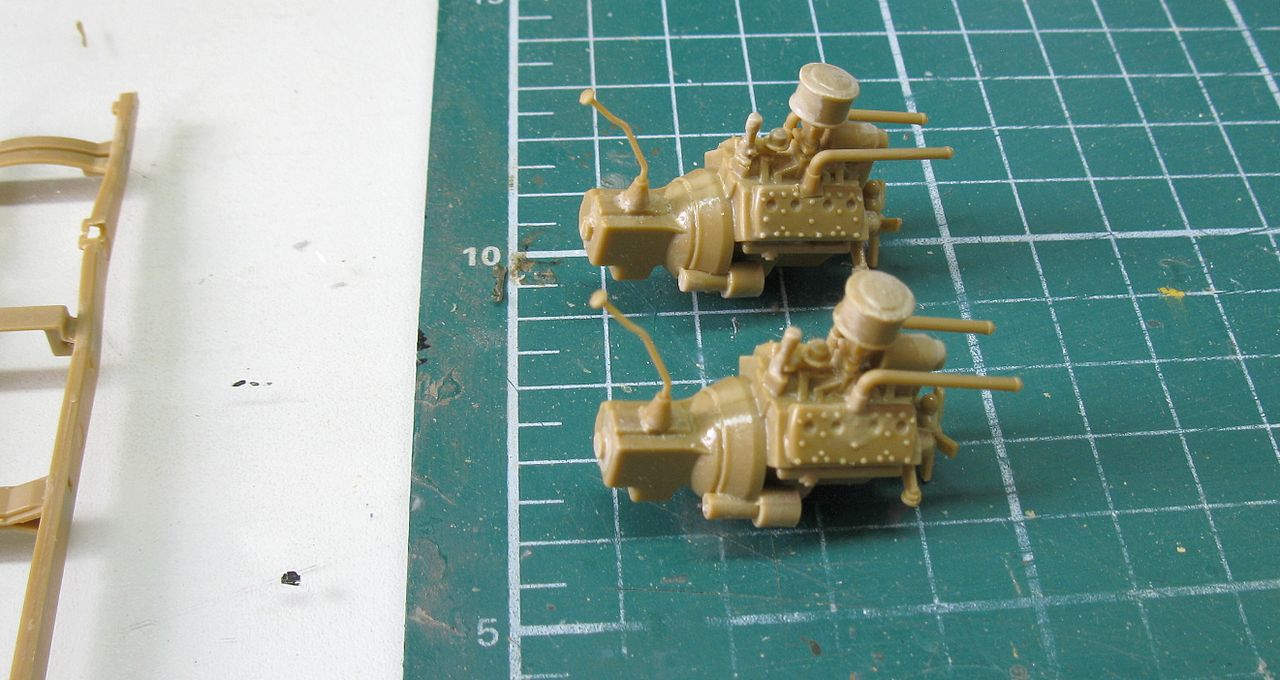

      Both engines in close ... I thought in more detailing, but are completely hidden in the hoods of the Fords ... and life is too short for certain things...
V8 engines
     ...and the chassis, too...

axes....
While the chassis and suspension dries, let's building the wheels:
tires with civilian tread patterns, as usually the Krauts wore in their Fords.


In the front suspensions, a little detail: put on the leaf springs a 2mm thick plasticard
to lift it up. If not the Fords' front suspensions will look "lowered".
Very cool for a Dragster, but very bad for a military vehicle ...
The exhaust system consists of 7 unbelievable segments each  .... Isn't it sweet ????
      For the late version, with wooden cabin (Einheits), again Dnepro Model resin kit
Resin and plastic parts...
      The two Girls, side by side: Mid and late version:

      After I built the fenders (correctly, because the grooves do not allow otherwise ...) I found out that my American girl has a peculiarity: its fenders go down more than usual in its front portion: They go to the base of chassis ...
Notice the front fenders detail...
      Thank to the Gods, at the time I bought them, these fenders were very cheap in Jadar. So, I will sacrifice a pair of them to make the correction. Here are the shocking pictures: In red, the parts to be discarded ...
Planning the surgery...
Cutting the fenders with Dremel's saw...
The new parts glued (with super-glue) in the front fenders...
Putty
Done !!!
     As usual, I like to draw a profile as a guide in my paintings.
Ford in colors: olive drab and allied stars

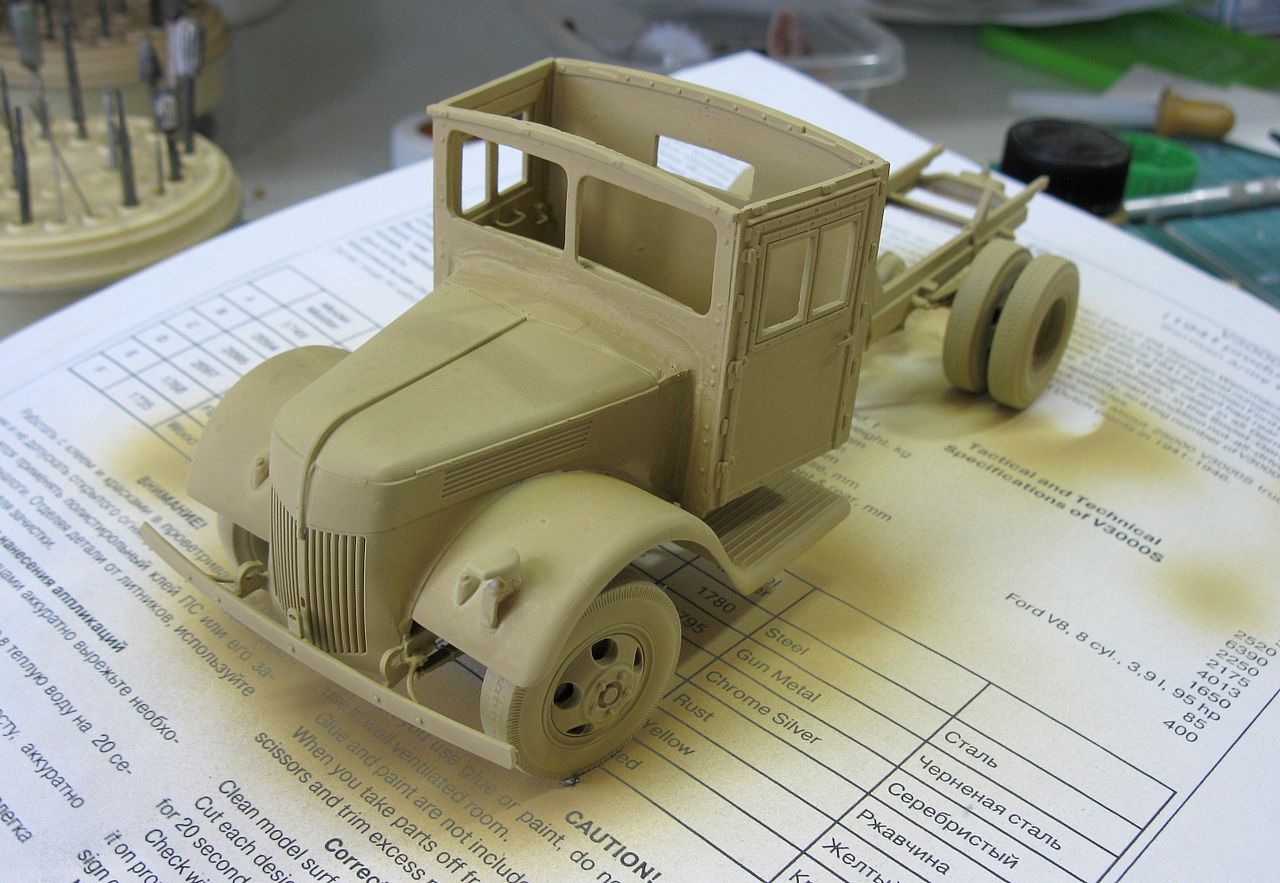

      Now, it's painting time: vallejo olive Drab primer

Much better!!!
      The late version, with wooden cab:

The cammo of the late version will be dark-yellow with green and brown stripes
Mid version in olive-drab. Notice the windshield
protected with Panzerserra's Maskol: PVA glue 50% + 50% hair shampoo
      The american gir features high sides in the cargo bed, but the Ford ICM V3000 kit only comes with low sides ...
V3000S sprue - Notice the low sides of the cargo bed...
      Good thing I got the Ford G917 from the ICM, which comes with the trees of the cargo body from V3000, as parts "unusable".
Ford G917 ICM - box art
Sprues from G917 - Notice the "parts of no use"
      Bingo. I took the additional pieces of Ford G917 without mutilating another kit. Here the body already built with new sides, primmed with Vallejo Olive drab:
Cargo body with high sides
And glued in the chassis


The two girls with color base applied!!
Tonal variations in the green...


And the yellowish girl with cammo stripes...

      But what I can put in the cargo body of the late girl? In this period of the war, the greatest scourge of Germans were airstrikes. Searchlights!!!!!  I have one, from AFV!!!
The truck and the cargo...
The 60 cms searchlight under construction...

Wooden joists to distribute the weight ...
and the AFV searchlight almost done...piece of cake!!!
Yankee girl with decals (and Future...)


   Luftwaffe markings for my shinning girl; It was hard to find the tactical markings of the searchlights, but I got here ...and here!!  Time to use my transparents decals and my laserprint...
60 cms Motorized Searchlight Battery

Luftwaffe stuff...

      But now, we have a the problem: how Ford was Neuer Art (material savings), the headlights were small, not large size like from the kit. The photo below shows the differences ... and my girls wore little headlights ... Notice the addendum: In the upper left, my girl.  On the top right, the new headlight... And the difference in size,  compare with the big picture:

Time to test this new material:


      Bingo. Perfect !!!!  Weathering and some stuff in cargo body; fuel drums, wood, used track for improve the tanks's armor...

A good use for the awful old Tamiya's Shermie tracks



and the Luftwaffe girl: drums and ...



      And my Ford neuer art project was done: First of all, the captured Ford V3000S (mid), Reims, France - 1944.
Ford V3000 S 4x2 neuer art - mid - Reims, France - 1944.



Ford V3000 S 4x2 neuer art - mid - left view


Ford V3000 S 4x2 neuer art - mid - right view






Ford V3000 S 4x2 neuer art - mid , with Kojak and Rover, the dog.

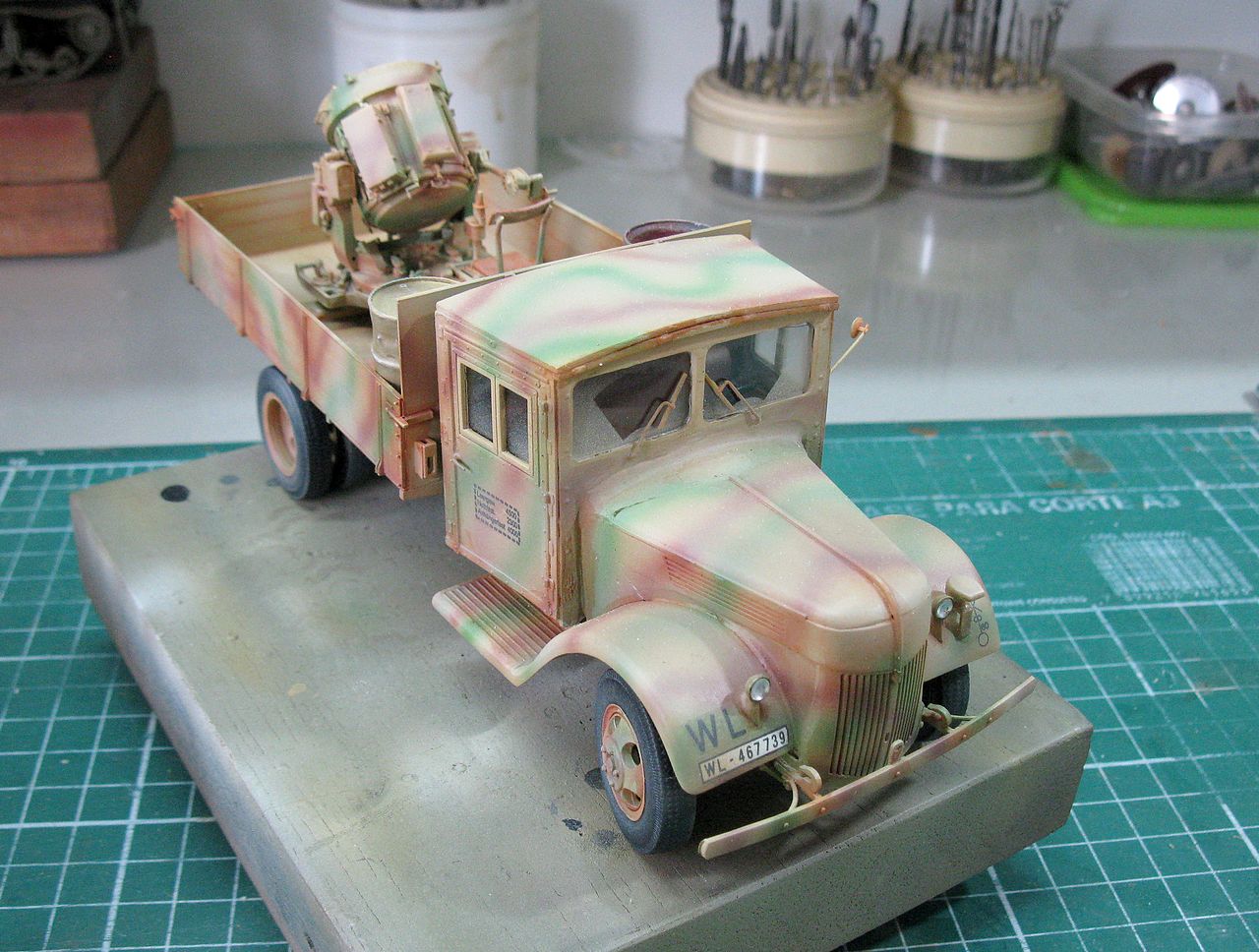

      And Ford V3000S - neuer art (late version) with Einheits (wooden) cabin. Luftwaffe, unknow unit, Motorized 60cms Searchlight Battery. Germany, 1945.
Ford V3000S - neuer art (late version)  Einheits cabin. Luftwaffe, unknow unit,
Motorized 60cms Searchlight Battery. Germany, 1945.

Ford V3000S - neuer art (late version)  Einheits cabin - left side


Ford V3000S - neuer art (late version)  Einheits cabin - right side


Ford V3000S - neuer art (late version)  Einheits cabin - bird view
notice the fuel drums, electrical cables and lens cover.

Ford V3000S - neuer art (late version)  Einheits cabin  with Kojak and Rover
Fords V3000S - neuer art (mid and late versions)  side by side
See you soon, Gents !!!
