GAZ-AAA with 76mm gun SU 1-12 SPG and Cargo version - case report

Tovarish !!!
      Let's see an interesting project, now. It's a small weapon made with simple materials, but with great effectiveness: A typical example of Russian Ingenuity. The assault gun SU 1-12 and his civil brother, the Cargo version.

For the motherland !!!
History:
     The Red Army was interested very early in the self-propelled artillery, but in the twenties, the constructive capacity of the industry to build vehicles with tracks was still incipient. Because of this, the logical choice was the use of a wheeled chassis. However, to offset their poor off-road capacities, these vehicles are very fast and agile on road. The conversion of a simple truck into a self-propelled gun was easy: just install a gun on the rear platform of a standard truck.
      The SU-1-12 Assault Gun was a common truck with a 76 mm regimental gun M1927 in the cargo deck able to fire an explosive OF-350 of 6.2 kg at a distance of 4200 m.
Soviet 76 mm regimental gun M1927 displayed
in Moscow Military Museum.
       For this weapons system, two models of trucks were chosen, the first is a 6x4 Moreland (copy of the American model) powered by a 6 cylinder gasoline, which was made in 48 copies.

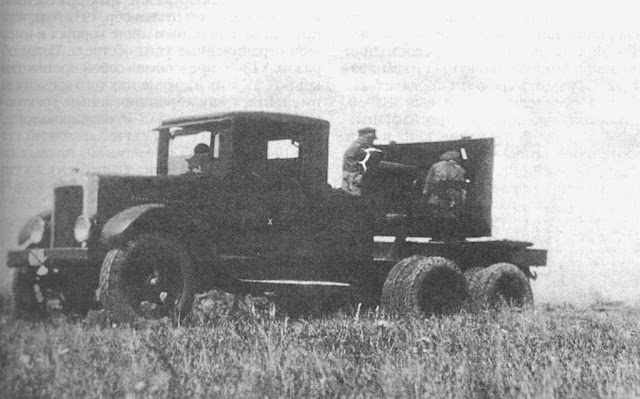

SU 1-12 in Moreland 6x4 chassi.
American Moreland 6x4 1929 (long wheelbase)
      The second is the 6x4 GAZ-AAA (Russian copy of the Ford Timken) powered by a 4 cylinder, which was manufactured in 51 copies. About the GAZ-AAA, I made a historical review when built the refueling version of this truck. The two trucks had 6x4 traction for better distribute the gun weight in the rear.

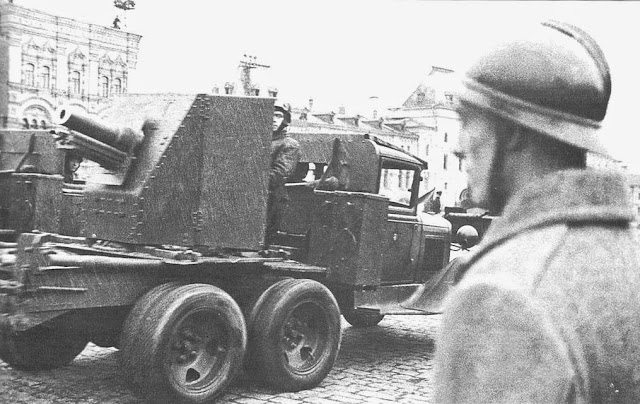

SU 1-12 in GAZ-AAA 6x4 chassi.
Fords Timken 6x4 - 1932
      The designers had to make a few modifications. First of all, the cargo compartment was equipped with a special platform, on which was mounted the gun with shield. The combat platforms are designed to permit a field of fire of 360° with the gun at maximum elevation.
Full crew of SU 1-12 (Moreland) in action
      The presence of the truck cab allowed a field of fire of 270° with the gun in horizontal shooting. When the howitzer was fired directly on top of the cabin, there was the danger of gases and debris of shot damaged the cabin's structure. To prevent that, an armour roof was built in the GAZ-AAA trucks.
      For better military performance, the trucks was also complemented by the following elements:
  • Towing attachment;
  • Frame spare wheel;
  • 2mm steel reflector with a shutter to protects the cabin from powder gases and debris (in the GAZ-AAA)
  • Two ammo boxes was attached to the rear of the reflector: the right box could accommodate 18 high-explosives grenades and the left 18 shrapnel grenades.
      The SU-1-12 Moreland made their appearance in 1933 and the SU-1-12 GAZ-AAA 2 about years later. About the operational use and maintenance, the SU 1-12 data are very few. By mid-1938, the Su 1-12 in the chassis Moreland were a part of the tank units of the Leningrad, Moscow, Kiev and Belorussian Military Districts, and SU-1-12 on GAZ-AAA was part of Leningrad, the Trans-Baikal, Moscow and Kiev Military Districts and Special Red Banner Far Eastern Army. However, during those years almost a third of the trucks had to do extensive repairs, after which almost all weapons on the chassis Moreland were recorded as decommissioned.
SU 1-12 Moreland  ready for fire
      By the time of the first Soviet-Japanese conflict that erupted at Lake Khasan in the summer of 1938, the number of SU 1-12 decreased markedly. However, the remaining machines were very actively involved in the fighting on the final stage of the fighting against the Japanese. Apparently, the most vivid battle scene involving the SU-1-12 took place in July 31, when this type of SPG, operating as part of the artillery batteries of the 2nd and 3rd tank battalions and Odwan mechanized brigade took part in the battles of this theatre of operations. During the day, self-propelled guns provided substantial support to the tanks of 2nd Mechanized Brigade, firing against the enemy almost 250 76-mm projectiles.

SU 1-12 with BT-7 light tanks in action
      There is also information about the participation of SPG SU-1-12 in the summer battles in Khalkhin Gol in 1939. The only unit that possessed guns of this type, was the 32th Mechanized Brigade, which had been transferred in 1937 to Mongolia to strengthen the Soviet group of forces in the region.
      In 1939, they were still part of the material park of the Red Army and perhaps participated in the attack on the Poland in September of the same year.
    During the Soviet-Finnish War SU1-12 were adopted only by one unit: the 33rd Separate Reconnaissance Battalion, which as of March 9, 1940 had two T-27 tankettes and two SU 1-12 on GAZ-AAA.
Profile of SU 1-12 SPG
      By December 1, 1940 the Red Army tank units formally still had three SU-1-12, who were in the Trans-Baikal Special Military District. After that, the fate of these vehicles is uncertain. But we have to admit it's an excellent record of service for such simple and improvised weapon.
Specs:
















GAZ-AAA SU 1-12 Assault Gun
TypeAssault Gun,  6x4
Place of origin
Number built
Production
 Kirov Plant - Soviet Union
99
1933- 1935
Specifications
Weight3.500 Kg
Length5.610 mm
Width
Height
1.900 mm
2.325 mm
Crew4 (Commander, driver, 2 loaders)

ArmorGun shield : 4mm
Main
armament
76 mm regimental gun M1927
EngineGAZ  50hp/2800rpm,
4-cyl. SV, 3285cc - petrol
Suspension
Road clearance
Wheelbase
Gearbox
leaf spring;  6x4
230 mm

3200 mm,940mm between rear axles
(4 speed + 1 back) x 2-speed auxilliary box
Speed
Tyres
Fuel tank

Fuel consumption
60 Km/h (road)
6.50 x 20
60 +40 l
(40 ls in the firewall's tank)
4 Km/liter

The kits;
      I have some older GAZ kits of various brands and I'll use these relics for my project. The conversion kit is the excellent resin kit from ARMO.
GAZ-AAA from Zvezda
GAZ-AAA from TOKO
Resin kit from ARMO - Awesome !!!

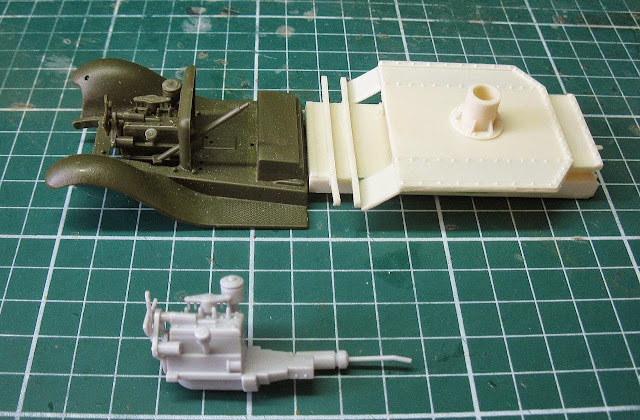

Resin parts
Correcting the resin casting...
Zvezda chassi plus Armo combat platform for SU 1-12 version...
       The cradle of the gun is just embedded in the pedestal. To avoid accidents, such as falls, I will use a screw to allow movement but prevent accidents. Firdt of all, open the botton of the chassi, to allow access to the screw head.
Used Dremel to made the hole...
Another perforation to the screw...
The gun's cradle (red), the pedestal (blue) and the screw (green)...
The screw in position...
...locking the cradle, but allowing the rotation of the gun
testing...
...testing...
...and the cradle don't  fall !!!

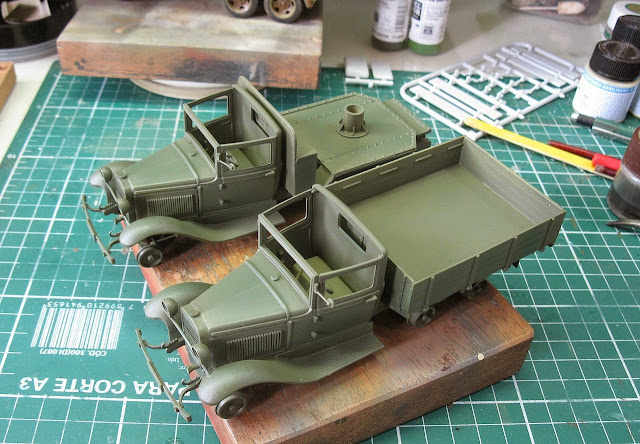

      Starting the cargo verson (from Toko, light gray plastic):
the engine...
Chassi and cabin floor...
  Let's continue the project of two Soviet trucks ...
The two soviet girls under construction.
Notice the GAZ-AAA fuel tank BZ-38 in background
The cargo girl...
The "soldier" girl...

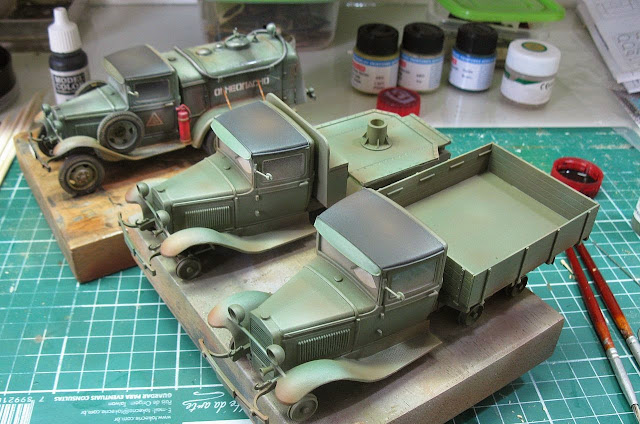

Russian green
Notice the roofs of cabins in black...
including the GAZ-AAA BZ-38
The dust of the steppes in the windshields...
Rear view of the girls...
These kits are simple but cute ...

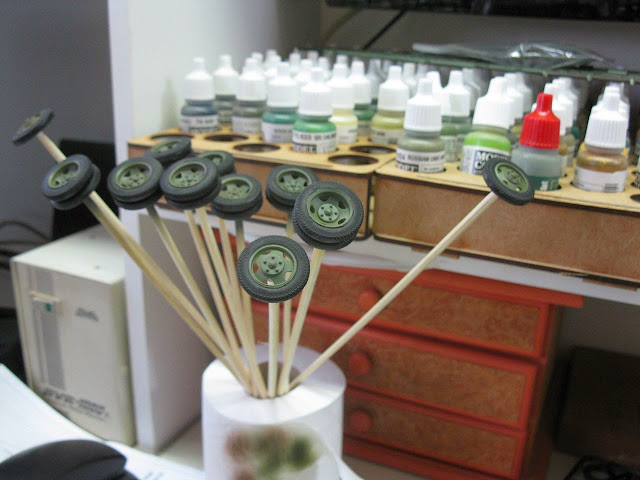

Wheels under constructions in the Urals!!!
The 76mm gun, with his armored shield
With shoes...Notice the cargo tarp and the windshield masks...
Good shape, but the termination of the canvas
without details is very rough !!!

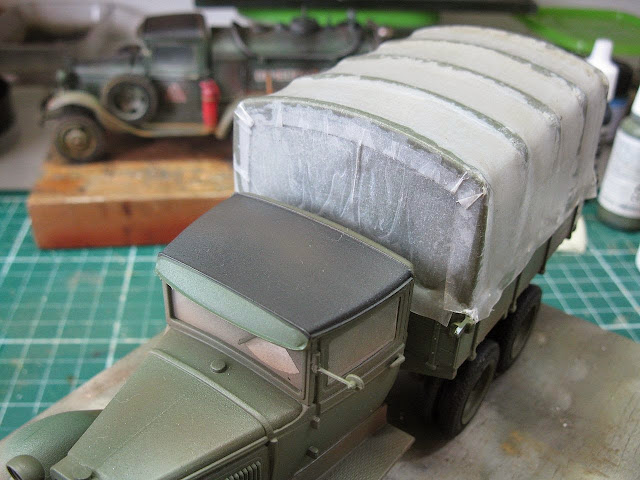

Cargo tarp...Ugh !!!

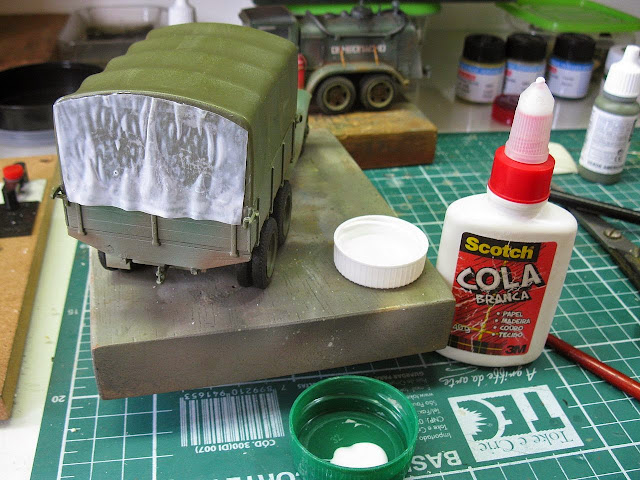

      The tarp on the cargo bed is beautiful, but the lack of details of his termination is horrible. I decided to "skinning" the plastic tarp with tracing paper. With this, I can make the canvas moorings in the cargo area. First of all, gluing the tracing-paper with PVA glue:
The rear canvas made with tracing-paper and PVA glue
Notice the tracing paper as tarp...
While it's moist, it gets wrinkled ...
But when dry, is stretched as before ...

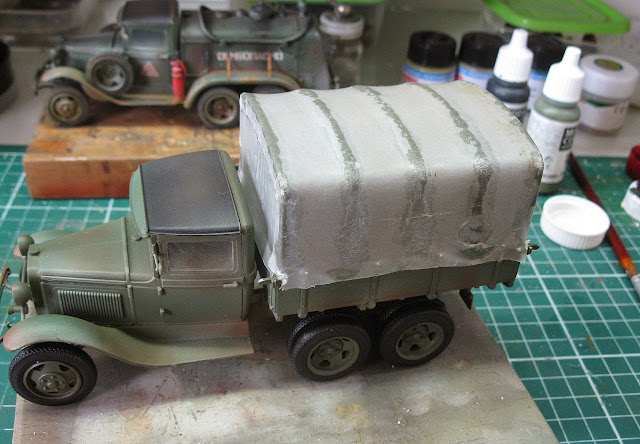

The aspect is very interesting ...
With paper tape, I make the edges of the canvas become thicker ...
Looks like a folded and sewed rim ...
Painting the canvas with Vallejo Khaki...

Next step, weathering...

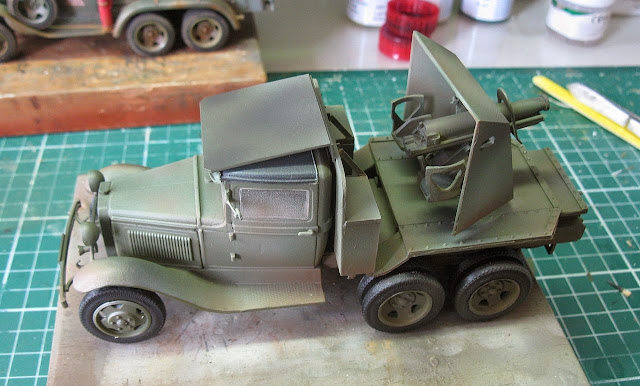

The soldier girl, now...I not used the armored resin ceiling. It was very ugly ...
I made a shield with plasticard ...
I think he was better (red arrow)
Painted in position...
Much better !!

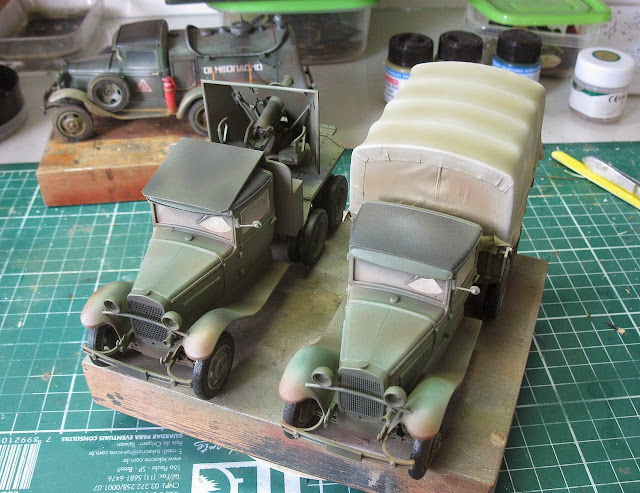

And the GAZ sisters almost ready for weathering...

      But before weathering the girls,let's make the mooring of the tarp in the cargo bed of GAZ-AAA truck. First of all, make the mooring rings with thin copper wire:
      After that, drill the cargo body and gluing the rings with superglue, following this rigging scheme:

      And;



The spare wheel tied at the truck's rear

The girls are ready: GAZ-AAA standard cargo version:
GAZ-AAA truck - For Motherland!

GAZ-AAA truck - left side

GAZ-AAA truck - rear view
GAZ-AAA truck - right side


GAZ-AAA truck with Kojak and Rover, the dog.
      And the dangerous girl GAZ-AAA with 76mm gun SU 1-12 SPG:
SU 1-12 Assault Gun with 76mm howitzer
SU 1-12 Assault Gun  - left side

SU 1-12 Assault Gun  - Notice the armour shield

SU 1-12 Assault Gun - rear view . Notice the propaganda poster
in the armour shield
SU 1-12 Assault Gun - right view



SU 1-12 Assault Gun  and GAZ-AAA cargo version
SU 1-12 Assault Gun with Kojak and Rover, the dog

SU 1-12 Assault Gun  and GAZ-AAA cargo - size comparison
SU 1-12 Assault Gun, GAZ-AAA cargo and
GAZ-AAA truck with BZ-38/3 fuel tank
The  GAZ sisters...

SU 1-12 Assault Gun, GAZ-AAA cargo and
GAZ-AAA truck with BZ-38/3 fuel tank
Spasiba, Tovarish !!!
