Kriegslokomotive Baureihe 52 - case report

German Zugfahrer!!!
      Now, let's talk about a huge girl, used for traction of German railroad trains, during WWII. It's time for the elegant Kriegslokomotive Baureihe 52.
Br 52 (52 4830) still working in post-war era - Germany.
Note the absence of the smoke deflectors...
History:
      The Deutsche Reichsbahn's Class 52 is a German steam locomotive built in large numbers during the Second World War. It was the most produced type of the so-called Kriegslokomotiven or Kriegsloks (war locomotives). The Class 52 was a wartime development of the pre-war DRG Class 50, using fewer parts and less expensive materials to speed the mass production.

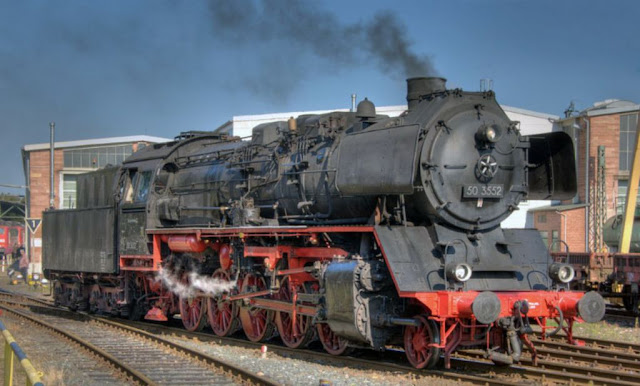

DRG 50 in in Bischofsheim, Hesse. (Wikipedia)
      They were designed by Richard Wagner who was Chief Engineer of the Central Design Office at the Locomotive Standards Bureau of the DRG.
Richard Felix Paul Wagner
(25 August 1882 – 14 February 1953)
      About a dozen classes of locomotive were referred to as Kriegslokomotiven, however the three main classes were the Class 52, 50 and 42.
DRG 42 in Bayerischen Eisenbahnmuseum Nördlingen.
      Many locomotives passed into Russian ownership after the Second World War. In the U.S.S.R. the class were designated TE 5200 (TЭ 5200). Other operators of the type included Poland and Romania, Bulgaria, Norway and Turkey. In Yugoslavia locomotives of the type were classified JŽ 33.

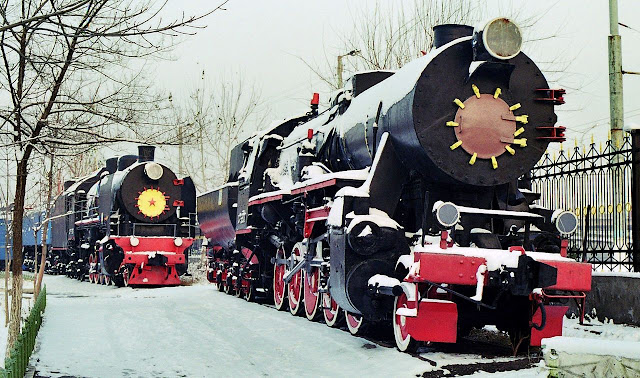

Soviet TE 5200 (Br 52 with some russian modifications)
      Over 6,700 locomotives of DRB Class 52 type were built across Europe for use on the Eastern Front during the Second World War. Thus it was one of the most numerous steam locomotives in the world. To achieve such numbers, the German locomotive manufacturers were merged into the Gemeinschaft Grossdeutscher Lokomotivhersteller (GGL), which was a subdivision of the Hauptausschuss Schienenfahrzeuge (HAS) founded in 1942.
      Key HAS figures were the Reichsminister for munition and armament, Albert Speer and the Reich transport minister, Julius Dorpmüller.
Br 52 Kriegslokomotive in the Russian Front - Kiev, winter 1943.
      The GGL included the following locomotive manufacturers (including an approximate number of Class 52s produced):

Engine design:
      The class (Baureihe) 52 was a simplified version of the prewar Reichsbahn class 50 locomotive (produced 1938-1942). The simplified design of the class 52 was intended to reduce the man-hours and skills needed to manufacture it and to adapt to wartime shortages of strategic materials. Additional design changes gave the locomotives and their crew better protection against the cold.
      Between 1942 and the end of the war in May 1945 over 6,300 class 52 locomotives were built. Additional locomotives were built post-war, giving a class total of probably 6719 units, delivered by seventeen manufacturers. The Class 42 was a larger version of the Class 52, but was produced in small numbers.
A brand new Br 50 in rest, waiting work...
      In the early postwar years class 52s were used by many European countries, the largest user being the Soviet Union, which had more than 2,100 of them, designated class TE 5200 (ТЭ). Poland had more than a thousand and East Germany had about 800.

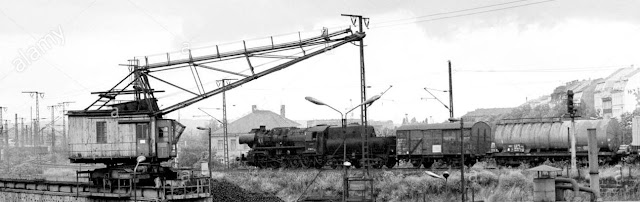

Br 52 in Dresden, East Germany, 1976.

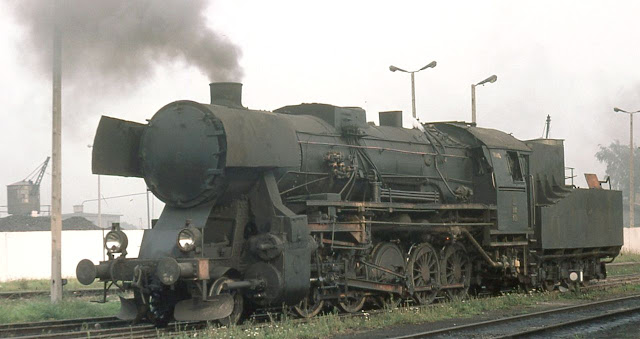

Br 52 class as running after the War on PKP as Polish class Ty2 - 1976.
     The type was also widespread among other eastern European nations. Western European countries replaced them with more modern locomotives as soon as possible, with the exception of Austria where they were used until 1976.
Austrian Br 52 (ÖBB) 52.6084, without deflector plates, at Graz depot - 1971
      The simplicity and effectiveness, plus the large production total, meant that many eastern European countries were slow to withdraw these Kriegslokomotiven. Poland used them into the early 1990s; Turkey and Bosnia were also late users of the type.

      Wagner had wanted locomotives which were long-lasting and easy to maintain, and unlike British engineers did not consider a high power-to-weight ratio a priority. The resulting Kriegslokomotive had a low axleload of 15 tons and could haul 40 percent more freight than the old Prussian locomotives they replaced. The class 52 could haul 1,200 tons at 65 kph without significant strain.
Kriegslokomotive Baureihe 52.
Undoubtedly, an excellent piece of mechanical engineering.
Countries using the engine:
      Following the invasion of Poland in September 1939 Nazi Germany disbanded the Polish State Railways (PKP). Polish rail officials were either executed in mass shootings or imprisoned, and some 8,000 managerial positions were staffed with German officials. Former Polish companies began producing German engines BR44, BR50 and BR86 as early as 1940, some using forced labor.

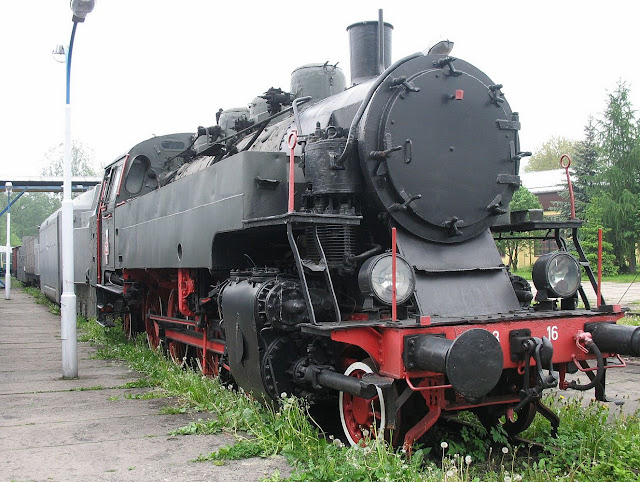

Polish Br 86 - Lokomotywa parowa TKt3-16 - Skansenu w Chabówce.
      By 1944, the factories in Poznań and Chrzanów were producing the redesigned Kriegslok BR52 locomotives for the Eastern Front. These locomotives were made almost entirely of steel; the use of more expensive, non-ferrous metals was dropped in view of the engines' expected lifespan. After the war, some 1,200 class 52s remained in reconstituted Poland. Another 200 were acquired from the Soviet Union in 1962-64. The class 52, designated Ty2, began to be phased out in the 1980s; its last regular use was in 1999.
      Some 100 were built for Romanian State Railways, becoming class 150.1000 engines. Over 150 were in use by the Bulgarian State Railways as class 15. Turkish Republic Railways built 10 for forming the TCDD 56501 Class. Turkish Railways acquired 43 additional loc's at the end of the war, these had previously been on hire.
      The Deutsche Reichsbahn (DR) in East Germany had 200 machines reconstructed to the new DR Class 52.80.
Lokomotive DR 52.80
      74 locomotives were sent to occupied Norway during World War II and were confiscated following the war. The Norwegian classification was class 63, and was nicknamed Stortysker ("big German"). One engine, restored by the Norwegian Railway Club, is preserved at the Norwegian Railway Museum in Hamar.
Norwegian locomotive Type 63  Stortysker (Br 52)
      The ČSD Czechoslovak state railways used hundreds of 52s post-war, some left behind by the Germans after 1945, some being rebuilt by the Škoda Works in Plzeň. They bore designation class ČSD 555; several dozen were subsequently adapted, as the 555.3, to burn mazut fuel oil, a large surplus of which was generated in synthetic fuel plants in occupied Czechoslovakia from brown coal. The 555.3 differed visibly by having a lid on the smokestack to slow down cooling of the lining of the flue passage, to prevent cracking.
Czechoslovak class ČSD 555 locomotive in the Railway Museum Lužná u Rakovníka.
      The Hungarian State Railways (MÁV) acquired 100 type 52s from the Soviet Union in 1963. They were designated class 520 and used into the 1980s. Others were used by Yugoslavia before that country's dissolution in the 1990s. A few were still in industrial service in Bosnia in late 2017.

Specs:

Kriegslokomotive Baureihe 52 (DBR 52)
Number(s)                 see text above
Quantity                7000+
Manufacturersee text
Year(s) of manufacture1942–ca. 1950
Retired                    ČSD: 1976
DB: 1962
DR: 1988
ÖBB: 1976
Wheel arrangement2-10-0
Axle arrangement1'E h2
TypeG 56.15
Track gauge1,435 mm standard gauge
1,524 mm Russian Railways
Length over buffers    22.975 m
27.532 m (with condensingtender)
Overall wheelbase9.2 m
Service weight84.0 t (82.7 long tons; 92.6 short tons)
Service weight incl.  tender               102.7 t (101.1 long tons; 113.2 short tons)
Adhesive weight75.9 t (74.7 long tons; 83.7 short tons)
Top speed80 km/h
Indicated Power1,192 kW (1,598 hp)
Driving wheeldiameter1,400 mm
Leading wheeldiameter850 mm
No. of cylinders2
Cylinder bore600 mm
Piston stroke660 mm
Boiler Overpressure  16 bar (1.6 MPa; 230 psi)
Grate area3.89 m2
Evaporative heating area177.83 m2
Tender service weight18.7 t (18.4 long tons; 20.6 short tons)
Water capacity27,000 L  - 30,000 L  when using an ÖBB covered tender
Fuel10.0 t (9.8 long tons; 11.0 short tons) coal
Train heatingSteam
The kit:
      I built this kit 12 years ago (2007) , when Trumpeter release this big girl in the market (2005). The kit was amazing, big and challenger.
Trumpeter kit (#00210) Baureihe 52 mit Steifrahmentender
box art
      In those grim and dark times, the historical references were not as accessible as today and the kit was released with some historical flaws, the main being the tender wagon, which was of a type after the period approached by the model. But overall, the kit was (and still is ...) very impressive.
     The pics of the building are few and bad, but I put them as references of my old times of modeling. I'm really sorry that I did not have the photos of the first stages of the building, but here are the photos I have:
The locomotive standing on his own feet.
Notice the beginning of the black painting in the lower portion of the machine.

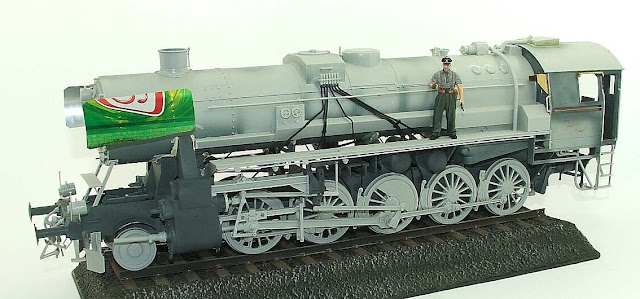

The smoke deflector I made with aluminium soda can...
       I decided not to do the black and red painting suggested by Trumpeter ... Just plain ugly .... I decided to do something more "operational" ...
Trumpeter suggestions... Hmmmm...Nop!!
Front view... Notice Karl, the German cousin of Kojak...





Notice the interior, previously painted...

The (wrong) tender...

The big girl with dark belly!!
       Well ... At that time, there was a fever of installing a 20mm quadruple Flakvierling 38 on the rear platform of the tender.
Tamiya (#35091) Flakvierling 38 - 20mm quadruple

      And let's face it: in that place it really was a great place to increase the chances of surviving this magnificent target ... Let's make a support to the "cradle" of the Flakvierling 38 Pom-Pom ......
Making the AA gun cradle...

And the Loko ready for the cammo...

My choice; Yellow cammo pos-1942 with green and red-brown strips...

Hmmm... I don't like it!!  "To many colors"...

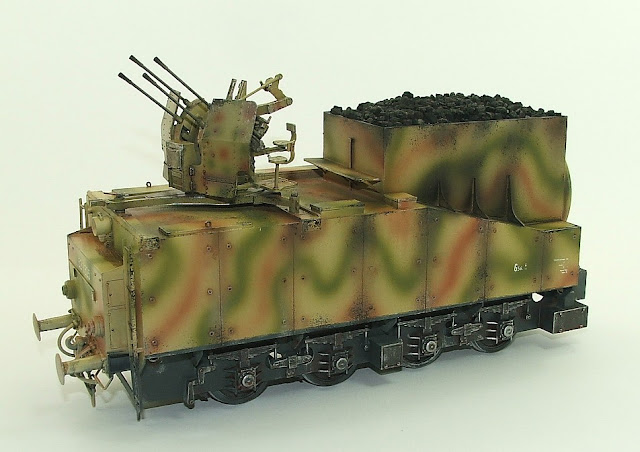

The tender with the AA 20mm gun....

Decals...

Notice the platform made in scratch, in the rear of "coal compartment"..

      And speaking of coal, Trumpeter's solution was horrible: uniform, flat, ungrateful little pieces of coal injected into the plastic ...
Trumpeter's carbon!!
     Ugh !! Awful!!
Horrible, Trumpeter!!
      I decided to add carbon in nuggets, used in aquariums, for water filters. I will use PVA glue diluted in water for gluing ...

Activated carbon for aquariums filters ...

The carbon nuggets!!  Much better!!

Trying to tone down the bright colors...


Weathering the cammo... Hmmm...

This is not going well. I really do not like the effect of colors ...

Really, I didn't like it ... I don't know why, but I did not like it !!
      In desperation, I decided to mitigate the painting with a winter cammo...
White strips for winter cammo...

Hmmm... Much better!!

A detail: A flakvierling with a Panzer-gray camouflage, also with winter strips !!

Flakvierling 38 adapted in the rear tender platform...

Typhoon view!!
Much better, IMHO !!


      And after that, a few years have passed. I changed residence, leaving a big house with plenty of room for a tighter apartment. The Kriegslokomotive project stood like a real "Shelf Queen", forgotten and unfinished in the back of my showcase.
      Until a colleague decided to buy the girl, as long as I finished it ... And that's how I did the final weathering.
    Detail: I found in the same showcase an old, forgotten and very poorly painted Artilleriewagen s.Sp. (schwerer Schienenpanzerspähzug) (heavy armored scout train), from Revell, which I bought built and painted in an auction many years ago. Same German track gauge ... Who knows how to make a good composition ?? But first, we have to repaint this little "casamate" girl ...
 Artilleriewagen s.Sp. I need to do something with this little monster...

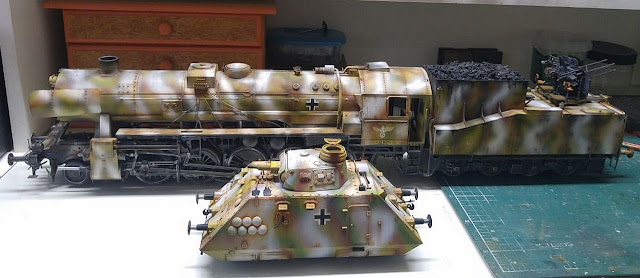

The Artilleriewagen s.Sp.with same cammo of Br 52 Kriegsloko...



Balkenkreuz!!!

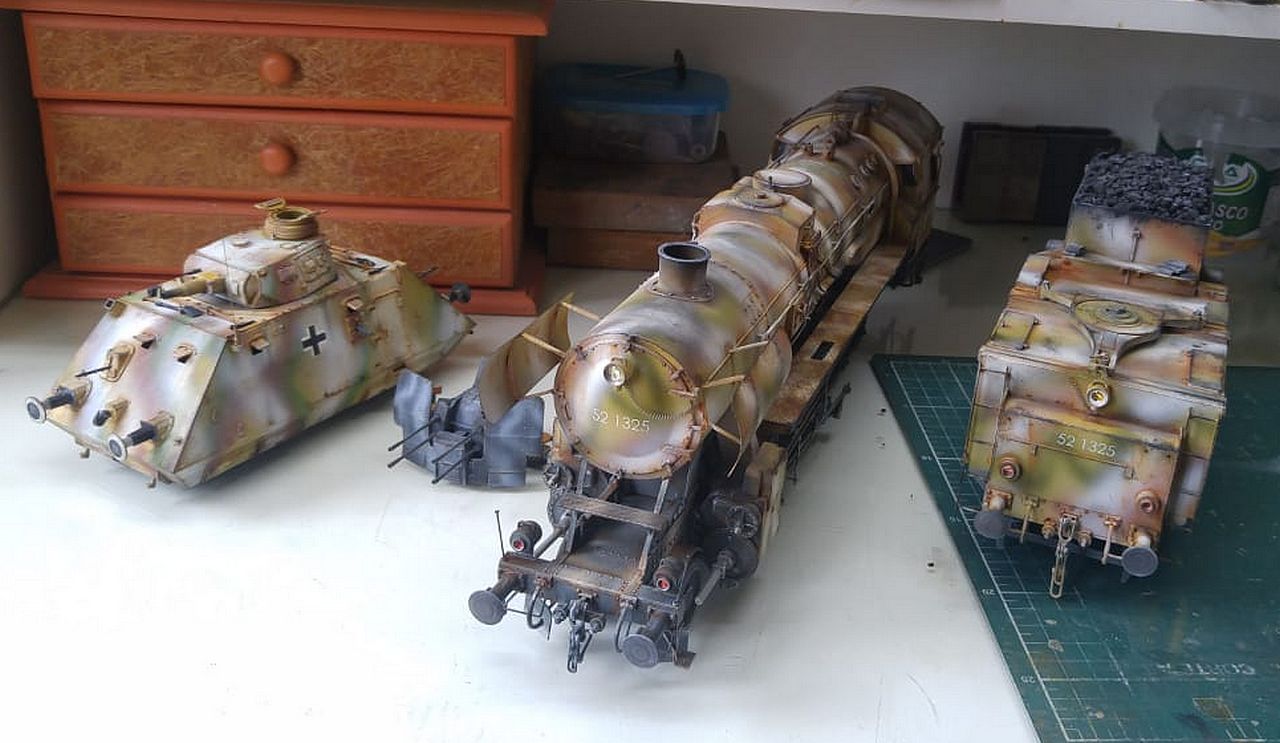

Weathering in the girls!!

The composition almost done...

Adding headlights and rear lights...
      And finally the train composition is ready!! Here is the Kriegslokomotive Baureihe 52 (and Schwerer Spähzug Artilleriewagen s.Sp.), who are now going to their final station, towards the south of Brazil. Bon voyage, mates !!! Let the Typhoons, Mustangs and Tunderbolts not find you on the way !!! Full steam ahead!!!

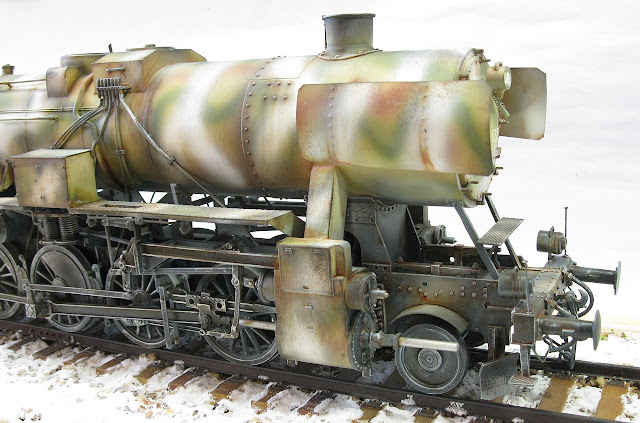

Kriegslokomotive Baureihe 52 - East front
Winter, 1944.

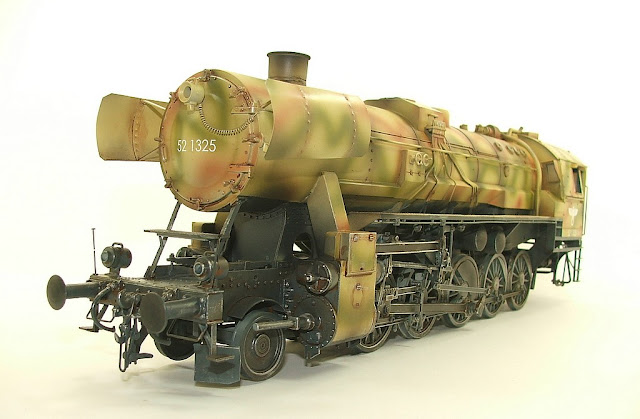

Kriegslokomotive Baureihe 52

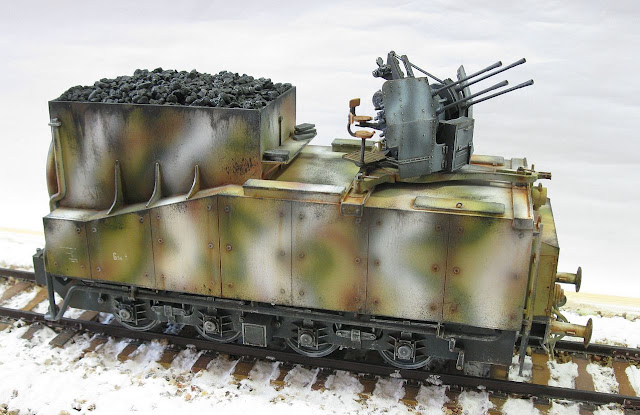

Kriegslokomotive Baureihe 52 carbon and water tender.
Notice the 20mm quadruple Flakvierling 38 on the rear.







Kojak and Rover, the dog, inspecting the 20mm quadruple Flakvierling 38.

The coal cargo in the tender...



Kriegslokomotive Baureihe 52 with tender

Kriegslokomotive Baureihe 52 with tender and s.Sp. Artilleriewagen
in the front of composition



Kojak is a very happy guy!!
All aboard for a new project, soon !!
