No...You didn't miss the Bunker. We're still at Panzerserra Bunker, about 1/35 military models. But today let's talk a little about the men of the German Navy. More specifically about this heavy truck used by Kriegsmarine in the task of transporting a Biber midget submarine in a Sonderanhänger (Sd. Ah.) 115 trailer . Let's talk about the Faun L900 D567 6x4 heavy truck.
|Faun L900 D567 6x4 tank transporter carrying a Panzer II Ausf D|
1st company of the 67th Tank Battalion 3rd Light Division.
September 1, 1939, the first day of the WWII.
The plant Fahrzeugfabriken Ansbach und Nürnberg AG (FAUN) came into being in 1919 from a merger of the "Fahrzeugfabriken Ansbach AG" brand and the "Nümberger Feuerlöschgeräte-, Automobillastwagen- und Fahrzeugfabrik." The production program included trucks from 2 to 9 tons, with the numbers of each held within modest limits.FAUN received Wehrmacht contracts for, among others, the Uniform Diesel Einheits 2,5 ton 6x6 truck (700), the Faun L900 D567 6x4 heavy truck 9-ton (also as a tank transporter), truck-cranes (road and rail versions) and heavy wheeled tractors (Faun Zugmaschine ZRS- road and rail versions).
|Faun L900 with 10 ton crane - road (left) and rail (right) versions.|
|Faun Zugmaschine ZRS- road (above) and rail versions (below).|
The vehicles normally had a load limit of 9 tons and could be driven by 6- or 8-cylinder Deutz Diesel engines with 13.5 liters and 150 HP or 18 liters and 200 HP. The Faun was one of the heaviest German trucks in service at the time. It weighed 8,800 kilograms and was 9.8 meters long, 2.5 meters wide, and 2.6 meters high. It required a crew of only one, that being the driver. It was powered by a 1,501 hp Deutz F6M5171 diesel engine, and could carry a total cargo load of up to 9 tons.
The Faun had no armor protection or armament, and it had six wheels, four of which were the drive wheels. It's primary purpose was transporting and carrying small tanks and armored vehicles, hence the abnormally long body and powerful engine. The Faun could carry up two small tanks at a time using the trailer Sonderanhänger (Sd. Ah.) 115 Tiefladeanhänger für Panzerkampfwagen 10t (Sd. Ah. 115).
|Faun L900 tank transporter and Sd.Ah.115 trailer|
with two Panzers II
The Faun was produced by a variety of manufacturers, including Büssing-NAG, Vomag, Faun, Fross-Büssing, Krupp and MAN. The Faun was mostly used from the early to mid part of World War II, as it was primarily used to carry and recover small German light tanks such as the Panzer I and Panzer II.
These light tanks became obsolete very fast and the Army had no more need of these early tank-transporters. So, the Faun L900's were transferred to the engineer and transport companies or used as heavy ammunition supply trucks, especially on the long roads in Russia.
|Faun L900 D567 in duty with two Panzer II Ausf D|
Polish Campaign - 1939
|Faun L900 (Luftwaffe) cargo truck snorting up an icy slope with trailer in|
Staraya-Russa. Winter 1942-43.
|Faun L900 D567 6x4 tank transporter|
|Type||heavy truck - tank transporter|
|Place of origin||Nazi Germany|
|Used by||Nazi Germany|
|Wars||Second World War|
Deutz F6M5171 diesel engine
13.500 cc 6 cyl. - 150 HP or18.000 cc 8 cyl. - 180 HP
|semi-elliptical leaf spring|
suspension (front and rear)
4 speed foward x 1 reverse
|50 km/h (max.)|
For this project, I'll use the amazing injected kit from Das Werke Scale Models, very, very different ( and better, of course...) from the Faun L900 resin kit that I built few years ago. It's almost like comparing a Ferrari with a Clio !!
|Das Werke kit (DW 35003) box art|
The building of this resin kit was, according to our modeler friend Alexander Glass (Uschi van der Rosten) one of the factors that motivated Das Werk to inject this amazing and impressive truck. And in a very courteous attitude from Das Werke, I received a complete kit as gift, sent by Alexander. Thank you very much, Gentlemen.

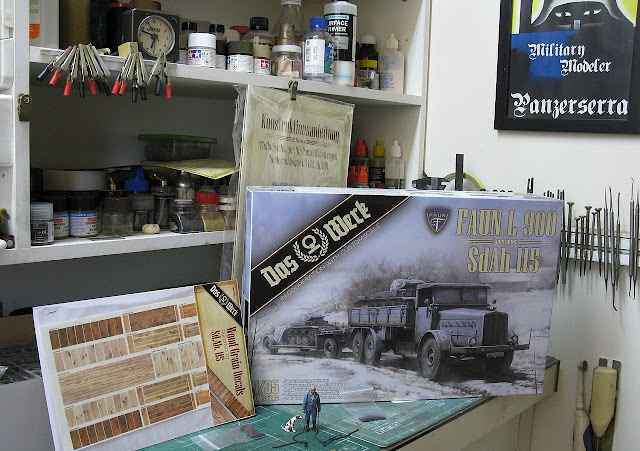

|The kit from Das Werke, with wood decals and chains...|
Kojak was simply amazed !!!
Das Werke staff, you are to be congratulated... The kit is very well injected and features great construction engineering solutions and very elaborate details. The parts fit like a glove, as you will see later in the building of this model... I really hope you continue releasing as good models as this !!
But as I (and Kojak) love to innovate, we decided to build this girl in the 1944s, when they no longer worked as tank transporters, but as heavy transport.

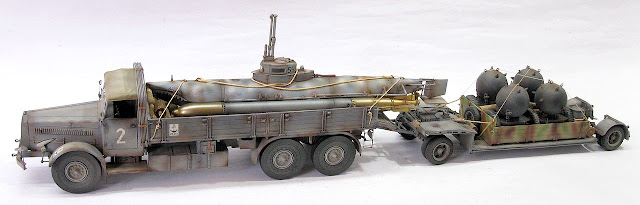

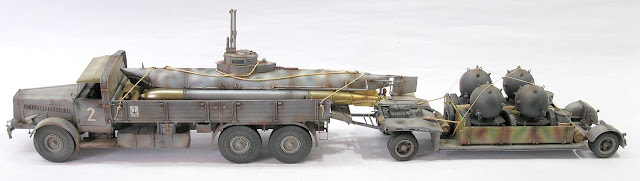

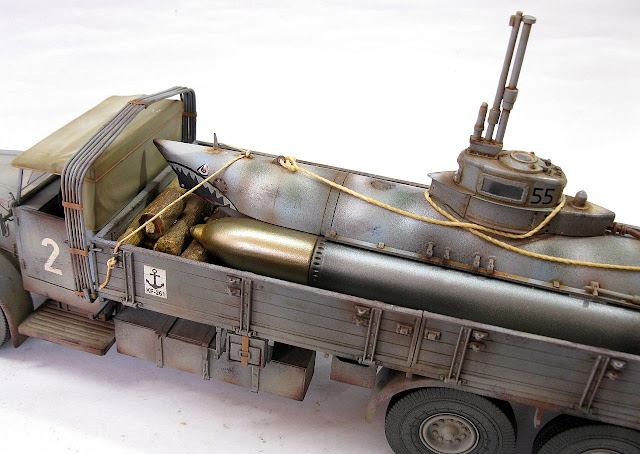

So, this Faun will be my first girl in Kriegsmarine colors. We imagine her carrying a Biber midget submarine in her cargo area. And as she still had breath for more load, she will be pulling a trailer Sd.Ah.115, loaded with magnetic mines for an attempt of counterattack to the Allied landings in Normandy.
Therefore, to complete the project (it's a commission for a great friend of mine ...), I'll use the Italeri U-Boot Biber kit (# 5609) and a Cammet resin kit (CAMB35005) for the EMC Mines.
|Italeri's kit (#5609) Biber midget submarine - kit box art|
|Cammet Ltd. kit (CAMB 35005) EMC mines resin kit - kit box|
But let's talk less and work harder !!!
First of all, the concept: Both the trailer and the truck have the capacity to carry the Biber with its full armament without any overweight problem. The options would be either to transport the Biber in the trailer or in the cargo area of the truck. At a glance, the trailer transport would perhaps be the first choice, but by detailing the transportation (see drawing below), the positioning angled of the boat made me choose to transport the midget in the Faun's cargo area. Mechanically, it seems more viable and safe to me...
But what really made me decide on the option of transporting the U-boot in the truck was this photo below:
|A captured Biber in exhibition somewhere in England|
Notice that the Biber is in the trailer of this Ford tractor, in the horizontal position. And this "horizontality" of weight and mass distribution that was the deciding factor in choosing to transport the minisub into the Faun's cargo area. BINGO!!
Decided that, now is to build the characters of our little show... Dive, dive, dive!!!
|Kojak is literally "chained" to the triple project ...|

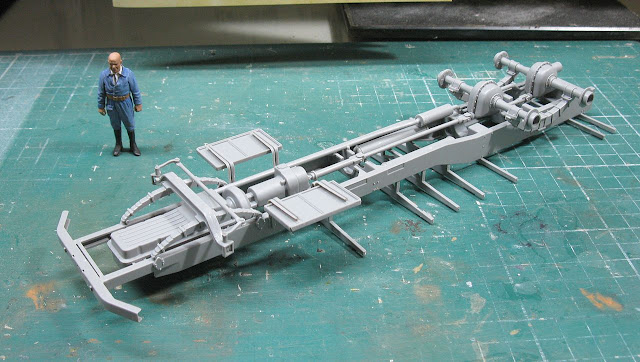

Starting at the beginning ... Chassis, with extreme care with the alignment of the stringers ...
|Chassis under construction...Notice the steel blocks for perpendicular alignment...|
|cargo bed brackets and footboards in position...|
The pieces fit perfectly. "Tamiya style" !! Well done, Das Werke
|Turning the chassis upside down ... notice the alignment of the cargo bed supports ...|
|Starting with transmission and axes... Kojak's direct supervision!!|
|The building is easy and swift... cabin and front bonet...|
|Cabin interior. The dashboard and seats will be placed later to facilitate painting and finishing work ...|
|Bonnet in position. Perfect positioning ...|
The kit features enviable engineering ...
Notice the dashboard and seats...
|Steering system and Pitman axle installed ...|
|Notice the fuel tank and tool box in the chassis...|
|Wheels and tires ... of vinyl. Ah !! Too bad, Das Werke ... |
Vinyl tires are a shame !!!

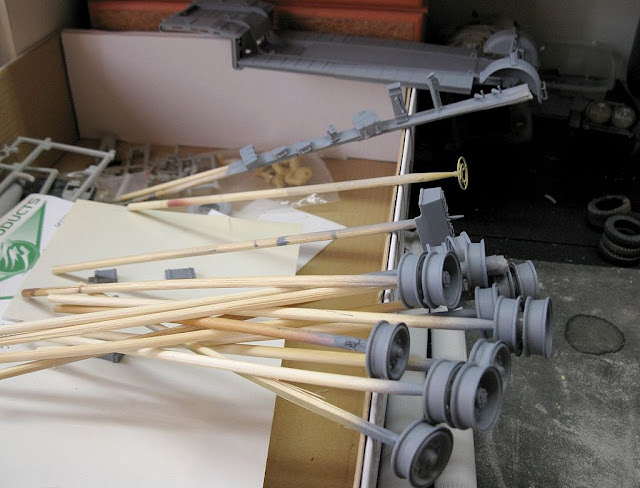

The tires will be installed later, after the wheels have been painted ...
|Gluing the cargo bed to the chassis brackets ... It's time to use the alligators clamps ...|
While the chassis and the cargo bed dry up, let's start building the trailer ... And then it got complicated: the instruction manual and the part trees don't talk to each other. The letters are different. In Sprue it is spelled "H" and in the instructions it is "A". Less bad than the numbers are equal ...The chassis Instruction Manual is very confusing ...
My advice: Look and check the steps VERY CAREFULLY !!! There are parts that are not reported or shown in the graphic drawings ... Das Werk, the Sd.Ah.115 manual needs an URGENT overhaul !!
|The trailer chassis under construction...|
Here's an example of the instructions booklet mess )see below): The manual indicates that A19 parts are glued to the front of the trailer, but A19 parts (the cranks) are glued to the squared points of the load tensioners ... and this step is described only in the end of booklet. And these load tensioners are usually the last to be placed in the kit ...
|Notice the crancks and the tensioners...|
|The tensioners and his position in the front of the trailer...|
Indeed, the biggest problems with interpreting the instructions are in the trailer's building. A great initiative from Das Werke was to print QRCodes in the instructions, that direct the reader to the Das Werke website with short explanatory films... But unfortunately, these films do not have some of these little details...
|The trailer under construction. Parts are stunning, but the instructions are tricksy...|

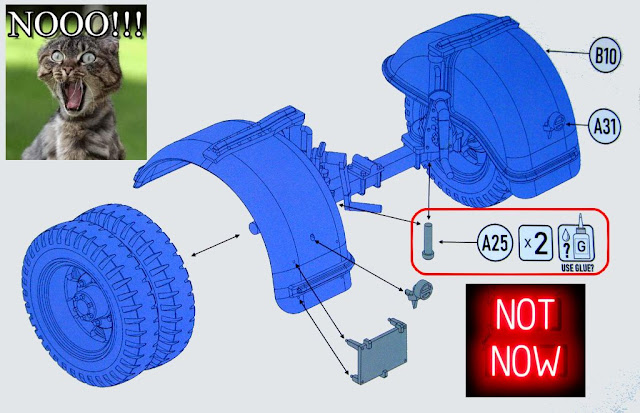

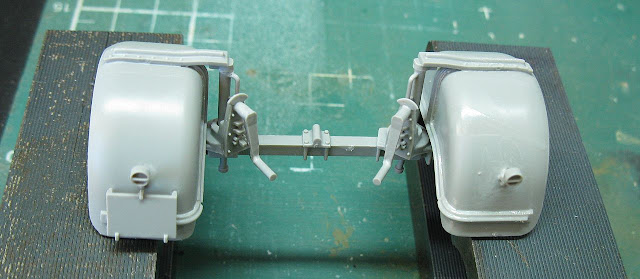

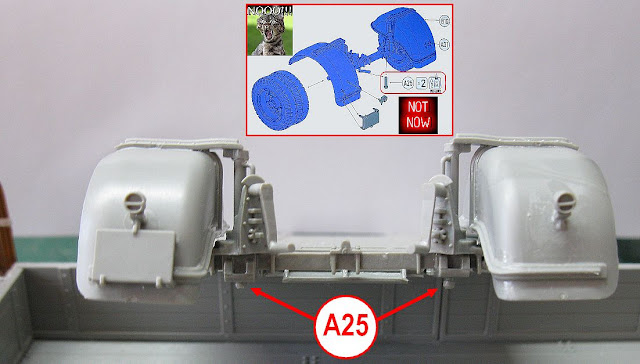

The rear axle features a trick as well. Do not use A25 parts yet, as they will be the pins that secure the axle to the rear suspension. Leave these two pins for the final step.
|Pay attention and be smart ...|
|This is wrong!!|
|This is correct!!|
As I said, instructional issues are revealed in the trailer. When building the front portion of the trailer, parts A18 are hollow. But in the instructions nothing is mentioned to "plug" the cavities of the pieces. They are locking wedges. While inspecting the sprue trees, I came across the "covers" of these parts But the assembly manual makes no reference to them ...

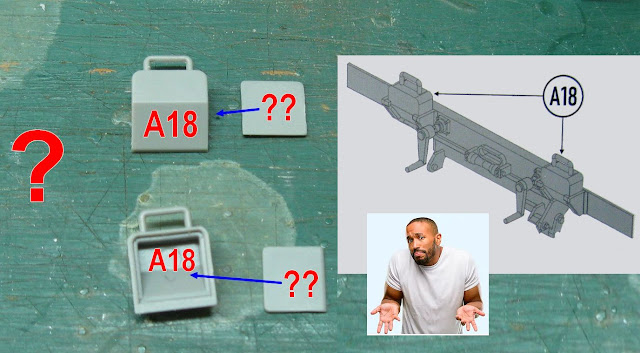

|The parts A18 with the rear "naked"... But the rectangular parts are in the sprues...|

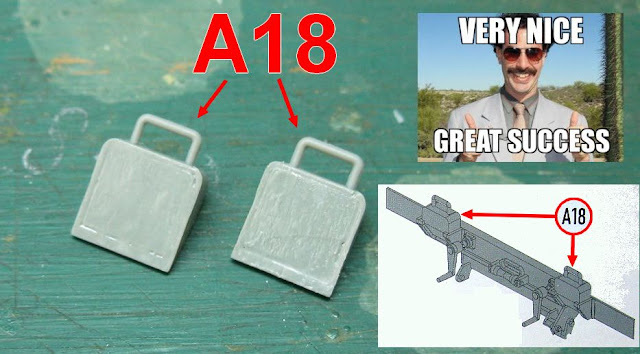

|The rear view of the A18 partes "sealed"... Now, we can use these wedges|
in their positions...
|A dry-run of the entire project...|

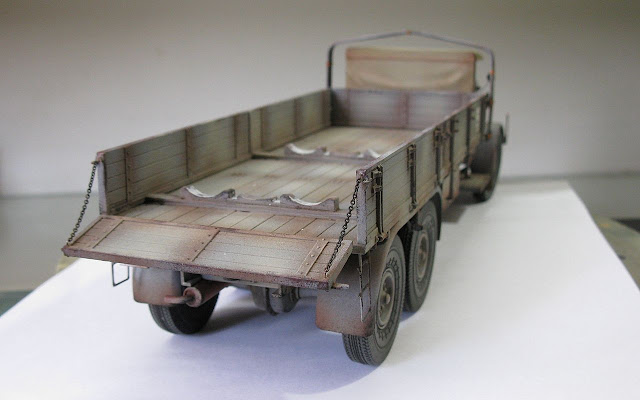

I decided to transform the rear door of cargo area in movable, in case your colleague wants to change the load on your truck. As the parts are very well injected, the hinges can be drilled with thin drills (0.4mm) and we use a copper wire of this thickness as the hinge pin ...
|The holes, the drill amd the hinge's pins...|
|Close up of the hinge...|
|The rear door moveable...|
|The cargo area with all doors in position...|
You can make ALL hinges of the cargo area parts moveable if you want...
Just repeat the process described above ...
|But my option was only the rear door with movement...|
When Das Werke's Faun was released in the market, some reviews criticized the shape of the front fenders. In the Missing Lynx forum there was a debate about the curvature of the fenders and the photos shown as an argument actually present this discrepancy. I'm not a rivet-counter, but I like working on a kit... In my opinion, this detail is minimal (especially since I built a Faun with an old, very old resin kit, that was a real brick ...), but as modeling is fun, let's have fun. Watch now how to do a small plastic surgery with Dr. Kojak !!
|The patient and the radiographs of "pathology"|

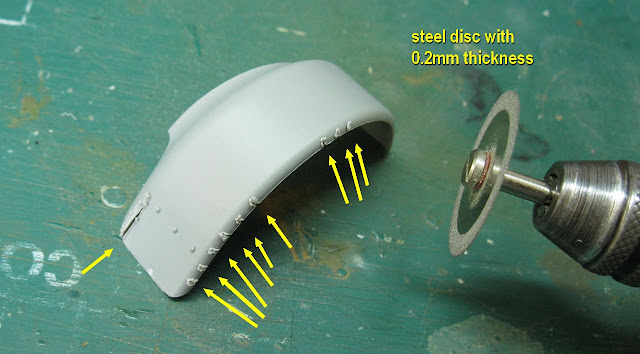

|Planning the surgery: The cuts will be made with a very thin (0,2mm) steel abrasive disc (yellow arrows)|
to allow an overhauling in the fenders curvature. The goal is "to close" the curvature of the fender...
|The disease and the cure!!!|
|The doctor Kojak is really an audacious doctor ...|
Incisions being made only at the edge of the fender ...
|After applying cyanoacrylate glue in the incisions, we compressed and repositioned the curvature of the fender...|
|Before and after surgery...The difference is significant ...|
|Incisions in the other patient ...|
|Planning to cut the anterior portion and add the posterior portion in the fender.|
A true reconstructive surgery !!!
|The front cut...with anesthesia, of course !!|
|The rear lip added|
|The front part reconstructed !!|
|Te patient now, after the surgery: new curvature,|
new front and rear portions...
|In the Faun's truck... Wheel in dry-run...|

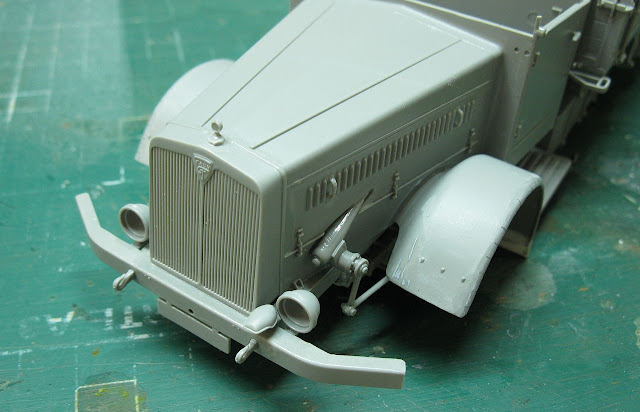

|Faun's front portion in construction...|
|Folding the canvas frame with the kit template. Very good, Das Werke !!!|
|The frames tied together ... Chuck approves!!|
|And in position!!! Uff...this girl is almost ready !!!|
|Let's do now, with electronic welding, the ladders in the back of the truck.|
Copper wire and duct tape
|Welding done... Planning the cuts...|
|Ladders in position. Notice the exhaust, in metal too...|
|And talking about metal...I replaced the rearview mirror plastic rods by steel wires. |
These things break just by looking at them ... Better safe than mending !!

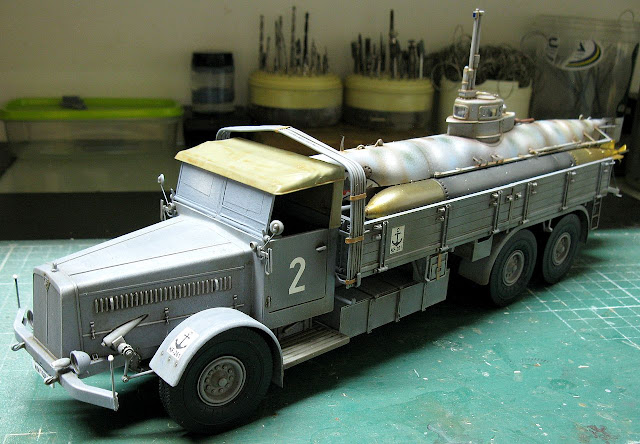

|And the Faun is ready for painting...|
But I started building the mines that will be loaded by the trailer ... The Cammett resin kit is a beauty !!!
|Cammett resin kit - 1/35th scaleType EMC Mines (CAMB35005)|
This kit is from 2009!! Kojak is simply impressed ...

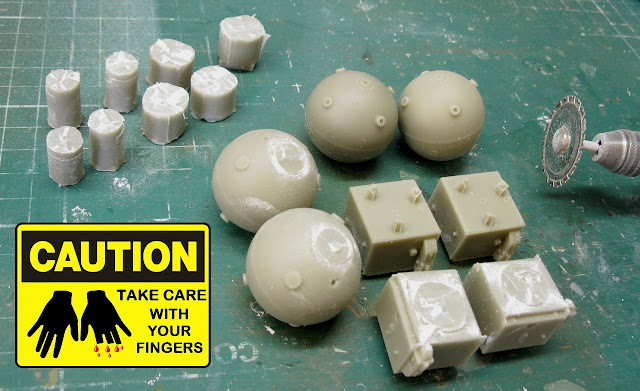

|Lots of parts to be clean ... thankfully Kojak is a Dremel expert !!|
|Very careful at this time ... A mistake and goodbye fingers !!!|
|My old and faithful Dremel...|
This disc in steel is a true weapon!!
|After cutting the excess portions with steel disc, it's time to relax with these abrasive tools ... |
And those won't tear your fingers off !!!
|"Lowering" the cut in the resin to the level of the piece ...|
|After Dremel, is time for my sanding glass plate...|
Water and gentle circular motions...
|Rectifying the cut area ... Be careful not to go beyond the ideal point ...|
|And the resin part is smoother than angel's butt !!!|
|The same process in all parts that have gone through the cut ...|
|Kojak (and the Monk ...) are definitely pleased with the result ...|
|Smaller parts ... same procedure ...|
|After the cut with the steel disc...|
|Sanding the operated area ...|
|PE handles are flat profile. I will replace them with round profile handles with copper wire and patience.|
I think it will be much better !!
|Done!! Indeed, much better!!|

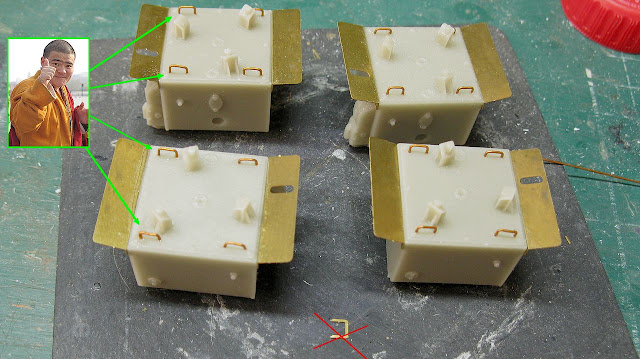

|Replaces other handles with copper wire, too (green arrows). But some that are left are the PE sheet of the kit ...|
|The mines, almost ready...but still bald!!|
|With "hair", now... Fuses in position ...|

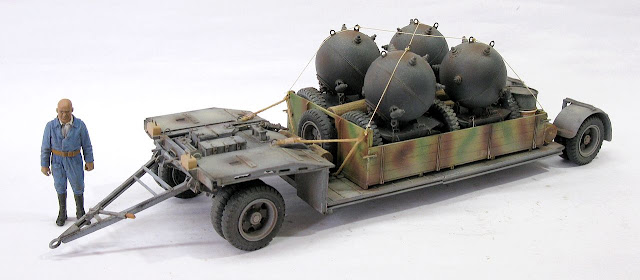

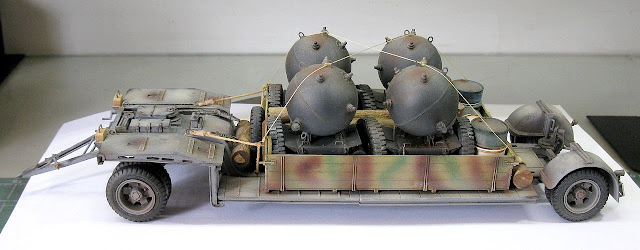

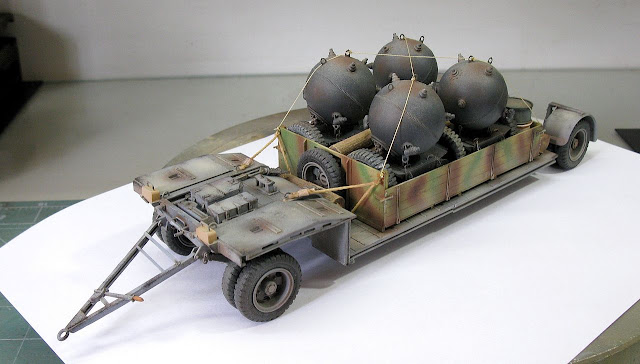

|And testing the mines in the trailer Sd.Ah.115 ... Hmmm..this thing is taking shape ...|
|The dry-run of the project... Kojak is a happy guy!!|
But since these mines will be in "transport mode", the fuses cannot be characterized in this way, as this is the "combat mode". I have to remove the fuses, or in naval jargon, I have to defuse the mines.
|A swift and painless method of defuse mines|
There is a difference between not installing fuses and detonators (transport mines) and defuse mines (done in the field): When in transport, fuses are covered with a small shield.
|Notice the rounded caps over the fuse horns...|
Inert and virgin mines.
But when the mines are defused, the spindle is completely removed, leaving only the recess where the fuse is threaded.
|Defused mine. Notice the holes after removal of detonator fuses|
German sea mine defused on Great Yarmouth beach - 1941
In our case, how the mines are being sent "virgins"to the front, the fuses will be protected by a round cylindrical cap.
|Mines under construction: without fuses (red circles) and with fuse horns|
protected by conical caps (green circles)
This matter decided, it's time to relax a little, before the mine defuse surgery !!
|I love an ice cream at the beach !!! It's very relaxing!!|
Notice the horns smashed after defuse...
Deal beach - England - 1940.
Stay alert, my friends!!
