Gents
Time for an American tale, now...The story of a tank with bad attitude, with a devastating firepower, but still unpopular among their crews: T34 Calliope rocket launcher -Sherman M4A3(75).
 |
| Sherman Calliope playing her music |
History:
The Rocket Launcher T34 (Calliope) was a tank-mounted
multiple rocket launcher used by the United States Army during World War II. The launcher was placed atop the Medium Tank M4, and fired a barrage of 4.5 in (114 mm)
M8 rockets from 60 launch tubes. It was developed in 1943.
The US Navy pioneered the use of rockets to supplement conventional artillery since they could be fired from landing craft and other small vessels that could not carry conventional guns.
In 1943-44, the US Army began examining the use of these rockets as a means to supplement tank guns. The first efforts as mentioned above involved the use of 7.2 inch demolition rockets from the T40 launcher for breaching seawalls during amphibious landings. This was later standardized as the M17
Whiz-Bang launcher.
 |
| M4 and M4A1 Sherman with T40 Whiz-Bang rocket launcher |
 |
| M4A2 with T40 Whiz-Bang |
This device was never very popular since its proximity to the turret roof created problems for the crew entering or escaping from the vehicle. and the rockets had a relatively short range.
 |
| M4A2 Whiz-Bang - rear view. Notice the turret hatch closed by the device |
Being intended for firing from only a hundred meters with a maximum range of barely a thousand meters. After being rejected for use on D-Day in Normandy, and after being used with little success during Operation Anvil in southern France, the army decided to hand over the surviving launchers to tank battalions in the Italian theater for possible use in the artillery role.
The 752nd and 760th Tank Battalions each converted a tank platoon with four T40
Whiz-Bang launchers in mid-August 1944. These rocket platoons did not serve with their parent units, but were instead transferred to the 755th and 757th Tank Battalions for operations along the Gothic line. They were used in very small numbers and had modest results. In December 1944, the 525th Ordnance Battalion converted eight T40 launchers by replacing the 7.2 inch demolition rockets with the longer-range 4.5 inch aircraft rocket launcher. They served with the 752nd and 760th Tank Battalions and saw combat starting in March 1945.
 |
| M4A1 with T40/M17 modified Whiz-Bang - Notice the 4.5 pol. tubes (air rockets) |
The US Army had already developed a launcher for the 4.5 inch rocket as the T34, better known by its nickname as the "Calliope". It adopts its name from the musical instrument
"Calliope", also known as the steam organ, which had similar lined pipes.
 |

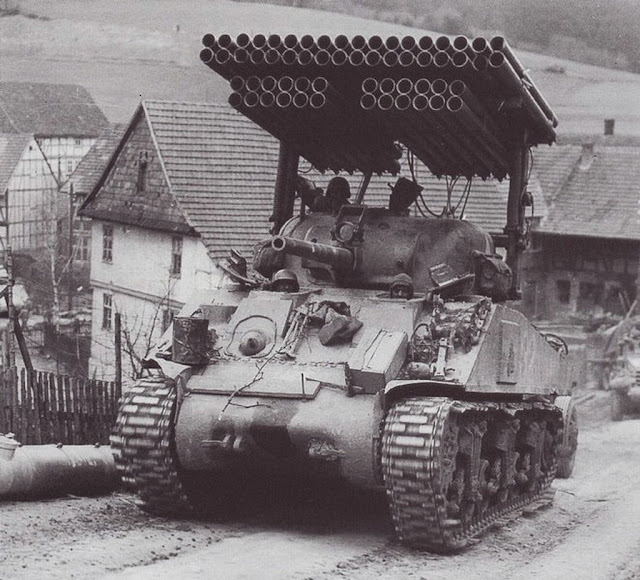

| T34 Calliope - Notice the trailer in the Shermie's rear |
 |
| Another Calliope with trailer in the rear... |
The original plan was to use these for obstacle breaching on D-Day, but this was rejected out of hand since it was felt that the high mounting of the launcher on the M4 tank would make it unstable in landing craft.
 |
| T40 and T34 under trials in landing crafts. Instability in open sea... |
After D-Day, the 743rd Tank Battalion had 30 Calliope launchers installed for a planned attack by the 30th Infantry Division in December 1944. However, the German attack in the Ardennes pre-empted this operation and the launchers were discarded without being used.
 |

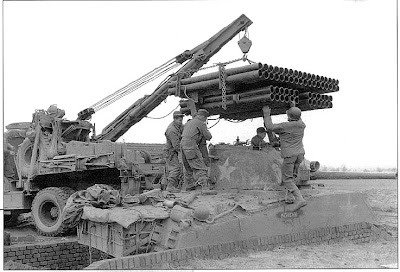

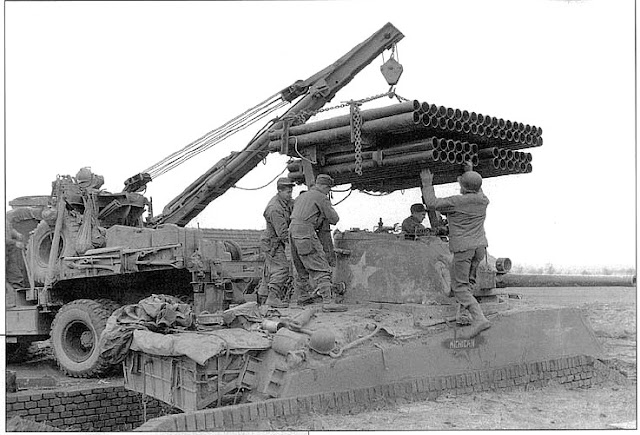

| Changing the tubes... |
The T34 was more extensively deployed in early 1945, and was used in small numbers at various times by the 2nd. 4th, 6th, 12th, and 14th Armored Divisions and by the 712th, 753rd, and 781 st Tank Battalions. In general, the launchers were unpopular with tank commanders who felt that the artillery mission should be performed by artillery units and not tank units.
 |

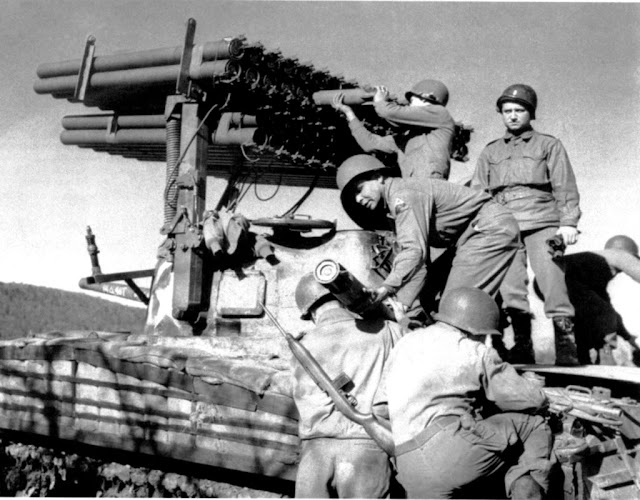

| Calliope being reloaded. This task was time consuming and dangerous... |
font: http://en.wikipedia.org/wiki/T34_Calliope and Zaloga, S. in U.S. Armored Funnies: U.S. Specialized Armored Vehicles in the ETO in WWII
Specs:
 |
| Based on a George Bradford drawing |
Specs:
|
|
|---|
|
|
United States
Medium tank
|
|---|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|---|
|
|
U.S. Army Ordnance Department
|
|---|
|
|
|
|---|
|
|
Fisher Tank Arsenal and Ford Motor Company
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
5 (commander, gunner, loader, driver, co-driver)
|
|---|
|
|
|
10 cm (max. hull) to 9 cm(turret)
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
|
|
|
|---|
| T34 Calliope - launcher device |
|---|
| Type | Tank-mounted rocket launcher (Rocket-Artillery Tank) |
|---|
| Place of origin | United States |
|---|
| Service history |
|---|
| Wars | World War II |
|---|
| Production history |
|---|
| Designed | 1943 |
|---|
| Specifications |
|---|
|
Main armament
Launcher weight
Elevation and depression
| 60×114 mm (4.5inc.) rockets
835 kgs (tubes and rack)
+25 to -12 degrees |
|---|
| M8 Rockets |
|---|
| Type | Air-to-surface and surface-to-surface rocket |
|---|
| Place of origin | United States |
|---|
| Service history |
|---|
| In service | 1941-1945 |
|---|
| Used by | US Army, US Navy, US Air Force and Allied countries |
|---|
| Wars |
|
|---|
| Production history |
|---|
| Designed | Picatinny Arsenal - 1941 |
|---|
| Manufacturer |
|
|---|
| Produced | 1941-1944 |
|---|
| No. built | 2,537,000 |
|---|
| Specifications |
|---|
| Mass | 17 Kg |
|---|
| Length |
|
|---|
| Diameter | 110 mm - 4.5 inch |
|---|
Warhead
weight | 2 kg |
|---|
| Engine | Solid-fuel rocket - 2. 15 kg fuel |
|---|
Guidance
system | none |
|---|
Operational
range
| 4,2 km |
|---|
|
|
|---|
The kit:
For this project, I used an old Italeri M4A3 Calliope:
 |
| Italeri kit n. 288 M4A3 Sherman Calliope |
Let's go...Correcting the suspensions: Dragon bogies and wheels; Italeri arms and drive sprocket and track (with duckbills) from Tamiya...
 |
| Multimedia kit... |
 |
| Suspensions done...I love my spare parts box !!! |
 |
| The Dragon bogies, with casting marks...cool !!! |
 |
| The Calliope tubes... |
 |
| and the Italeri turret |
In the Calliopes, the elevation and depression of the rocket tubes was achieved through an arm connecting the gun barrel to the tubes assembly. But this provision limited the degree of elevation achieved by the weapon.
 |
| The original version of the elevation device (see red arrows) |
 |
| The original version of the elevation device (see red arrows) |
The field engineers solved this flaw with a not-so-elegant but functional adaptation: they welded a metal plate to the uppermost portion of the "armored lips" of the mantel at the base of the cannon, and then soldered the original ring of the lift system.
 |
| Field adaptation of the elevation device |
With that, they gained a few degrees and a few hundred meters in reach of the rockets. My version will be with the field adaptation!!!
 |
| The elevator device in the Italeri kit is wrong for my version |
 |
| fixing the device... |
 |
| Front view... |
 |
| Building the rockets tubes... |
 |
| With thin metal wire, doing the triggers in the rockets |
 |
| In position... |
 |
| Tons of metal wires.. |
 |
| Done !!! |
 |
The eletric wire: from tubes to periscope...
option based in photo below |
 |
| rear view |
 |
| Notice the antenna support |
 |
| Reinforcements... |
And this photo (LIFE) , with all details:
 |
| Notice the details... |
The real and the model:
 |
| Turret with details.. |
 |
| Final touch: bracket in the wires... |
Uops... I almost forget the reinforcement in the turret's cheek armour.
 |
| Plasticard and putty to do the turret's cheek. |
 |
| Sanded... |
While the cheek dry, we will do the rear rack, characteristic of these Calliope Shermies ...
 |
| Field modification: rack in the Shermie rear |
 |
Let's do the same in scratch... Thin plasticard
and stretched sprue. The measurements and profile
of the stowage rack are shown in the image.
(I put the measures to make it easier for someone who
wants to dosomething like that. Thanks for the alert,
Richard Cramer, a friend from the Netherlands!) |
 |

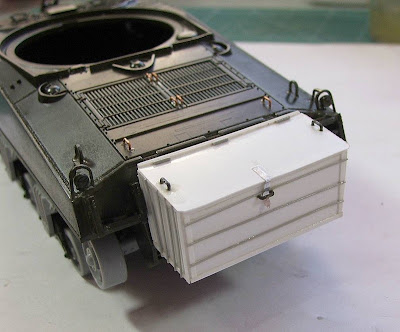

| With this, the crew has more space for their things and tools... |
Making casting surface with diluited putty: tranny cover, mantlet and turret:
 |
| Rough surface... |
After the primer and first coat of olive drab, I applied casting marks from Archer.
 |
| Archer's casting marks... |
 |
| Casting marks in the turret |
 |
| Ready for the decals... |
My markings guide:
 |
M4A3 Cold Storage Calliope T34 from 12th Armoured Division
714th Tank Battalion
drawing based in Bison Decal art |
 |
| Future (or Pledge) to prevent silvering |
 |
| Bison Decals !!! |

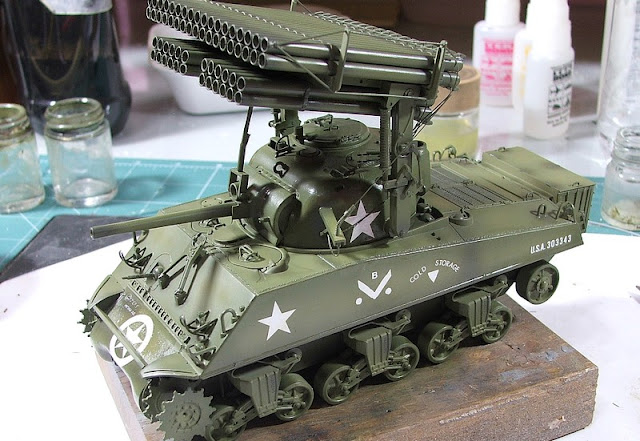

And the Shermie Calliope was done !
 |
M4A3 Cold Storage Calliope T34
12th Armoured Division, 714th Tank Battalion
France - March, 1945 |
Bye, Gents !!!
