10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f) - case report

Meine Freunde und Kollegen!!!
        Another rare vehicle, another history... This time, it's a kit from 2008...
      The might 10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f). A German SPG derived from Char B2 captured.
My Finnish friend Maximex will love this model review...
Iso halaus, ystäväni!
10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 in the Rheinmetall-Borsig factory
History:
      In accordance with a directive from Hitler in March 1941, self-propelled artillery pieces mounted on the Pz.Kpfw.B2(f) chassis were to be created for the purpose of escorting the Flammenwerfer auf  Pz.Kpfw.B2(f) (flamethrowers installed in the captured French Renault Char B1bis chassis).
Flammenwerfer auf  Pz.Kpfw.B2(f)
      In 6 gave the Waffenamt authorization to proceed with the design on 28 May 1941, after which the Waffenamt selected Rheinmetall-Borsig of Duesseldorf to create the detailed design for the self-propelled mount. A single experimental piece in soft steel was to have been completed in June 1941.

One 10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 protected by tarp
      The Flammenwerfer auf Pz.Kpfw.B2(f) went into action against Russian positions in June 1941 without any escorting self-propelled artillery. Due to the mechanical unreliability of the Renault B2 chassis, the unit (Panzer-Abteilung (Flamm) 103) was disbanded by mid-July 1941, long before any of the 16 self-propelled guns were actually produced.
      On 5 January 1942 the Waffenamt planned to produce the single series of 16 le.F.H.18 auf   Pz.Kpfw.B2(f) at the rate of five in January, five in February, and six in March 1942.
Four 10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f)
in railcars, sending to combat...
      The machines were designated alphabetically in capital letters (A - P).

Two 10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - 'H'  moving to action...
The 10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f)
and his crew. Notice the big wood crate,in his back.
      These were subsequently issued to the I.Abteilung/Artillerie-Regiment 93 of the 26.Panzer-Division, which was to be formed with three batteries each with four le.F.H.18 (SfI) in accordance with orders dated 22 September 1942.
The SPG with his troops
     As recorded in a strength report dated 31 May 1943, this unit still had fifteen 10.5 cm le.F.H. auf Fgst.Pz. Renault B2, of which 14 were operational.
10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f)
being prepared for transport
The 10.5cm leFH 18/3 (Sf) auf Geschützwagen B2(f)
vehicle "D" in the field.
      By this time, 12 "Wespe" had already been issued to the I.Abt./ArtI.Rgt.93 as replacements for the le.F.H.18/3 (Sf.) auf G.W.B2.
Wespe SPG
      Orders were issued to transfer the G.W.B2 to the 90.Panzer-Grenadier-Division on Sardinia, but it has not been determined whether this order was carried out or what was the ultimate fate of these self-propelled guns. Unfortunately, none of these vehicles survived after the war
font: Jentz, T. L., "Artillerie Selbstfahrlafetten 15cm s.I.G.33 auf Pz.Kpfw.I (ohne Aufbau) to Karl-Geraet (54cm)", Panzer Tracts, No.10, Panzer Tracts, 2002, ISBN 0-9708407-5-6.

Specs:
Based on a George Bradford drawiing

Vehicle:
10,5cm le.F.H.18/3
(Sf.) auf G.W.B2
Category:
medium self-propelled howitzer
Producer:
Rheinmetall Borsig, Düseldorf
Production Period:
1942
Number of Produced:
16
Prototype Built:
1942
Crew:
5
Technical Data:

Combat Weight:
32500 kg
Overall Length:
7620 mm
Overall Width:
2400 mm
Overall Height:
3000 mm
Ground Clearance:
490 mm
Propulsion:

Type:
water cooled, 6-cylinder
Renault 307 (16,5 liter gasoline)
Power:
295.8 bhp at 1900 rpm
Transmission:
5+R
Performance:

Road Speed:
25 km/h
Cross-country Speed:
? km/h
Cruising Range on Road:
140 km
Cross-country Cruising Range:
100 km
Obstacles Crossing:

Gradient:
26 °
58 %
Trench Crossing:
2,75 m
Vertical Obstacle:
0,8 m
Fording Depth:
0,72 m
Armament:

Main:
10,5cm le.F.H.18/3
Secondary:
2 x sub-machine gun MP 38/40 (384 rounds)
Armor:

chassis:
- front 40-60 mm
- sides and rear 55 mm
superstructure:
- front 30-40 mm
- sides 20-30 mm

The kits:
      I used these two kits in my 10.5cm le.F.H.18/3 (Sf.) auf G.W.B2  project:

10.5cm LeFH18/3 auf B2 resin conversion kit - Azimut

Tamiya's B1 bis french battle tank
      The Tamiya´s kit is a superb kit, a pleasure to build...
Wheels and suspension...
Building the lower hull...
Plastic surgery: opening the upper hull top...
..and the front sponsons...
Internal view...
      The Tamiya Char B1 shows the absence of many rivets ...

      I´m extremely lazy and I thought about using the rivet-decal of Archer in the track sponsons, but they would be very shallow:
 Decal rivets from Archer: Not good for the sponsons...
...but ideal for the hull. Archer rules !!!

Using the kit's photo-etched: Howitzer shield...
Internal view: notice the resin parts...
      The gun is organic in the Azimut´s conversion kit . From AFV Club !!!
The 10,5 cm howitzer injected, with metal gun barrel and resin muzzle brake.
The rear view of 10,5cm le.F.H.18/3 howitzer
The beast is growing....Notice the details in plasticard, metal and resin...

The interior is poor...

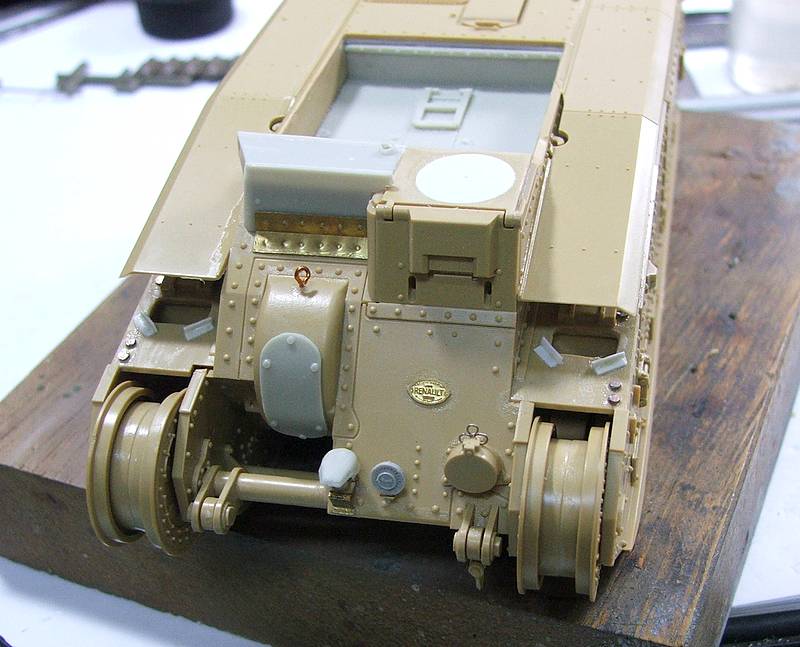

Close up of the carrier front
       Now is time to build the superstructure of the battle station: Weld and cyanoacrylate...




Beautiful ugly beast !

      The track links from tamiya are sweet...And notice that I hate LBL tracks ... But these are calm to build. just one click ...
Almost ready...

      And the Big girl was ready... Sorry I do not display all photographs of the paint job, but my camera swallowed them ...
      So, this is my 10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 from I. Abteilung Artillerie-Regiment 93, 26. Panzer Division - France, Amiens sector, April 1943. Vehicle 'B'.
10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 from
I. Abteilung Artillerie-Regiment 93, 26. Panzer Division


10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - left side

10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - rear view

10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - right side

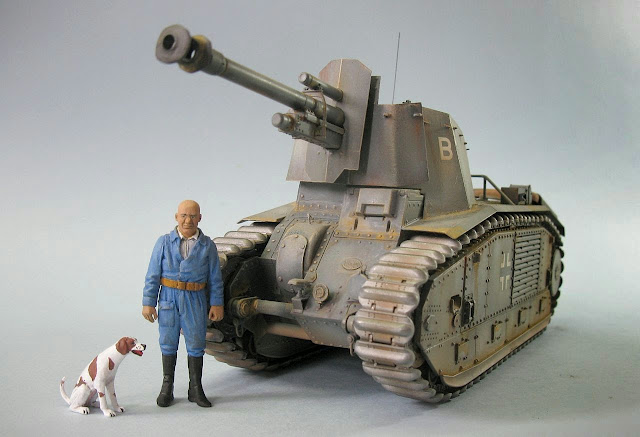

10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - with Kojak

10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - with Kojak and Rover (the dog...)


10.5cm le.F.H.18/3 (Sf.) auf G.W.B2 - B&W pic.
See you, soon, Tankers !!!!

Au Revoir and Auf Wiedersehen !!!
